35716 (5645) - Gravely Walk-Behind 2-Wheel Tractor, 12hp, 4-Speed, Manual Start ENGINE AND EXHAUST SYSTEM Parts Diagram

Walk-Behind 2-Wheel Tractor, 12hp, 4-Speed, Manual Start

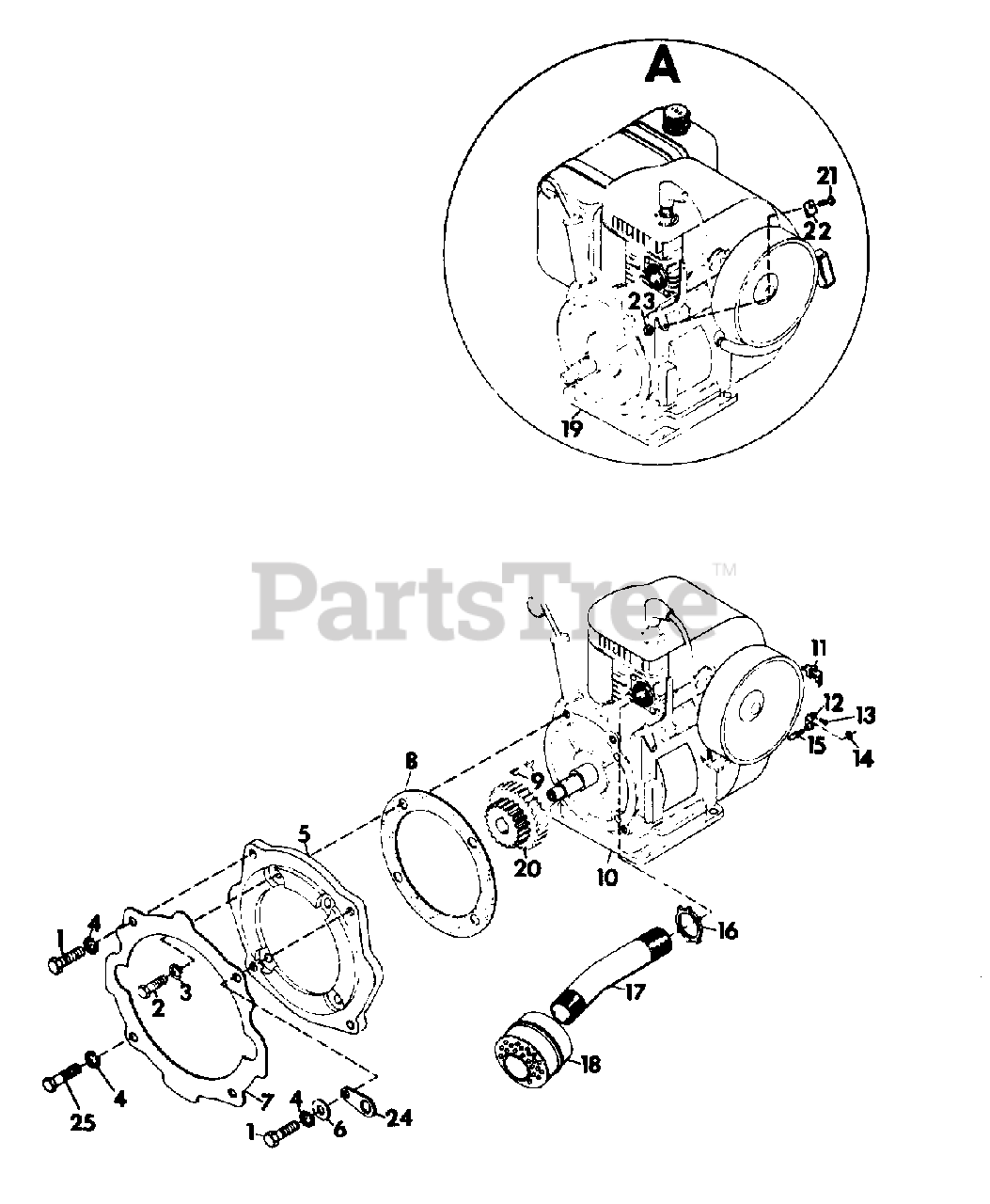

ENGINE AND EXHAUST SYSTEM Parts Diagram

  • Title
1

Gravely 180149

BOLT, HEX; 7/16-14 X 1-1/2
(Superseded to 05901633)

$3.49

$

In Stock, Qty 11

0

2

Gravely 180122

BOLT, HEX; 3/8-16 X 1, 12 H.P.
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 131099

WASHER, LOCK; 3/8 SP HEAVY
(Superseded to 06300120)

$3.49

$

In Stock, only 3 left!

0

4

Gravely 131100

WASHER, LOCK; 7/16 SP HEAVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 010731

ADAPTER, ENGINE; 12 H.P.
(Superseded to 09022100)

$

$

Not available

6

Gravely 120395

WASHER, FLAT; .469 X .938 X .065
(Superseded to 06429400)

$

$

Not available

7

Gravely 010635

GASKET, CHASSIS TO ADAPTER
(Superseded to 08602800)

$15.99

$

In Stock, only 2 left!

0

8

Gravely 010732

GASKET, ENGINE TO ADAPTER, 12 H.P.
(Superseded to 08602700)

$10.99

$

Usually ships in 4-12 days

0

9

Gravely 124546

KEY, WOODRUFF; 5/32 X 5/8 HARD
(Superseded to 06608500)

$2.49

$

Usually ships in 4-12 days

0

10

Gravely 034136

ENGINE, 12 H.P. 2-WHEEL ELECTRIC

$

$

Not available

10

Gravely 034137

ENGINE, 12 H.P. 2-WHEEL MANUAL
(Superseded to 20651500)

$

$

Not available

11

Gravely 007331

CLIP, SPEED
(Superseded to 06931500)

$

$

Not available

12

Gravely 018522

BRACKET
(Superseded to 20259500)

$

$

Not available

13

Gravely 160515

SCREW, MACH; 1/4-20 X 1/2 PAN HD
(Superseded to 06110900)

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 120375

NUT, HEX; 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

15

Gravely 018521

ADAPTER, CONDUIT
(Superseded to 06921000)

$

$

Not available

16

Gravely 010866

NUT, CONDUIT; 1 PIPE

$

$

Not available

17

Gravely 010865

TUBE, MUFFLER, 12 H.P.
(Superseded to 21333900)

$28.99

$

Usually ships in 4-12 days

0

18

Gravely 008227

MUFFLER, 12 H.P.
(Superseded to 20033200)

$

$

Not available

20

Gravely 017838

GEAR, 10/12 DP 21/30 TEETH
(Superseded to 08505300)

$

$

Not available

24

Gravely 021489

BRACKET, FUEL LINE
(Superseded to 21140000)

$

$

Not available

25

Gravely 180147

BOLT, HEX; 7/16-14 X 1-1/4
(Superseded to 05964800)

$2.99

$

Usually ships in 4-12 days

0
