35715 (5260) - Gravely Walk-Behind 2-Wheel Tractor, 8hp, 4-Speed, Electric Start Swiftamatic Differential Parts Diagram

Walk-Behind 2-Wheel Tractor, 8hp, 4-Speed, Electric Start

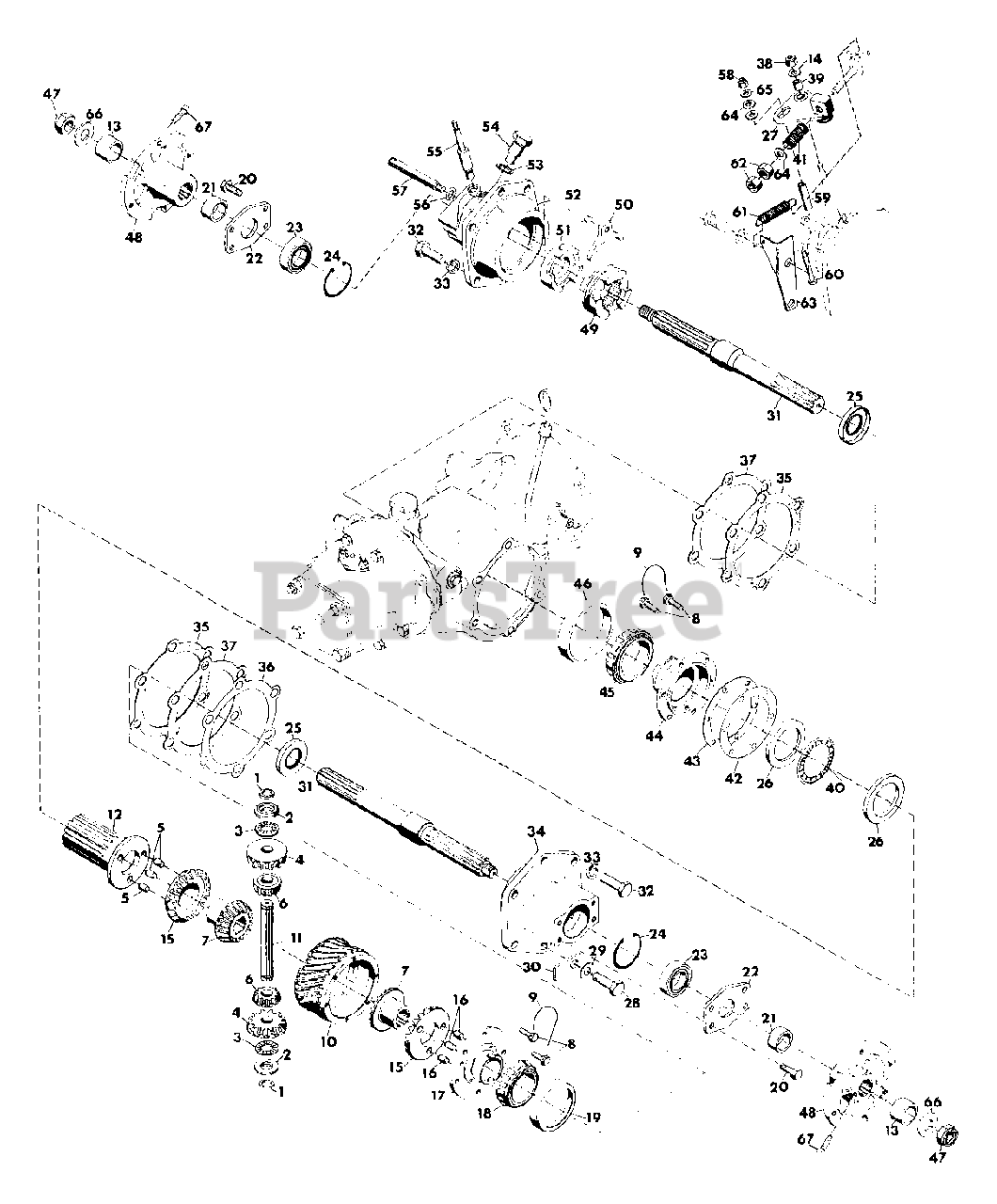

Swiftamatic Differential Parts Diagram

  • Title

1

15733

Ring, Retaining .750 Shaft

$

$

Not available

2

15734

Spacer .765x1.245x.200

$

$

Not available

3

6741

Bearing, Needle Thrust .752x1.240x.078

$

$

Not available

4

6702

Gear, Differential Shifting Bevel

$

$

Not available

5

34644

Pin, Dowel .375x.375

$

$

Not available

6

6708

Gear, Spider Bevel

$

$

Not available

7

6709

Gear, Differential Bevel

$

$

Not available

8

18604

Bolt, Special 5/16-18

$

$

Not available

9

Wire, Bolt

Wire, Bolt

$

$

Not available

10

15729

Gear, Worm 8 Start

$

$

Not available

11

22499

Pin, Spider

$

$

Not available

12

22498

Shifter, Splined Pinned

$

$

Not available

13

22512

Spacer

$

$

Not available

14

Gravely 120393

Washer, Flat .344x.688x.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

15

6703

Gear, Pinned Bevel

$

$

Not available

16

6714

Pin, Dowel .375x.500

$

$

Not available

17

12126

Housing, Pinned

$

$

Not available

18

12131

Core, Roller Bearing

$

$

Not available

19

12130

Cup, Roller Bearing

$

$

Not available

20

Gravely 180120

Bolt, Hex 3/8-16x.750
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

21

22501

Spacer

$

$

Not available

22

22503

Plate, End

$

$

Not available

23

32050

Bearing, Ball 1.000x2.000x.562

$

$

Not available

24

22497

Ring, Retaining 2.000 Bore

$

$

Not available

25

22506

Seal, Oil 1.188x2.000x.250

$

$

Not available

26

22500

Race, Thrust 2.00x2.740x.031

$

$

Not available

27

6723

Arm, Shifter

$

$

Not available

28

13624

Bolt, Hex 1/2-13x1 Nylon Insert

$

$

Not available

29

Gravely 120396

Washer, Flat .531x1.062x.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

30

12594

Washer, Oil Brain

$

$

Not available

31

22493

Axle, Straight

$

$

Not available

32

Gravely 180173

Bolt, Hex 1/2-13x1
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

33

Gravely 120384

Washer, Lock 1/2 SP
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

34

22495

Housing, Axle

$

$

Not available

35

12597

Gasket, Axle Housing

$

$

Not available

36

12595

Shim, Axle Housing .005

$

$

Not available

37

12596

Shim, Axle Housing .020

$

$

Not available

38

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

39

6724

Bushing, Nylon .375x.503x.875

$

$

Not available

40

6743

Race, Bearing Thrust .060

$

$

Not available

41

10682

Spring, Compression 2x.720

$

$

Not available

42

6739

Shim, Clutch Worm Gear .005

$

$

Not available

43

6740

Shim, Clutch Worn Gear .020

$

$

Not available

44

22496

Housing, Clutch

$

$

Not available

45

12501

Cone, Roller Bearing

$

$

Not available

46

12500

Cup, Roller Bearing

$

$

Not available

47

22502

Nut, Hex 3/4-10 Light Thin

$

$

Not available

48

22507

Hub, Wheel

$

$

Not available

49

11632

Clutch, Shifting

$

$

Not available

50

6719

Yoke, Shifting

$

$

Not available

51

11156

Clutch, Stationary

$

$

Not available

52

22494

Housing, Axle 2-Speed

$

$

Not available

53

12707

Washer, Oil Strainer Nut

$

$

Not available

54

6734

Bolt, Stationary Clutch

$

$

Not available

55

10505

Pivot, Stationary

$

$

Not available

56

6732

O-Ring .438x.625x.094

$

$

Not available

57

6721

Pin, Clutch Sliding

$

$

Not available

58

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

59

24382

Bushing

$

$

Not available

60

24383

Bolt

$

$

Not available

61

10681

Spring, Extension 2.50x.62

$

$

Not available

62

Gravely 124925

Nut, Jam 3/8-24 Hex
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

63

10680

Bracket, Spring 2-Speed

$

$

Not available

64

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

65

Gravely 120392

Washer, Flat .281x.625x.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

66

Gravely 131017

Washer, Flat .812x1.469x.134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

67

Gravely 426913

Screw, Set 7/16-14x1.00
(Superseded to 21069400)

$

$

Not available
