357 XP - Husqvarna Chainsaw (SN: 20100600001 - 20111800000) CRANKCASE Parts Diagram

Chainsaw

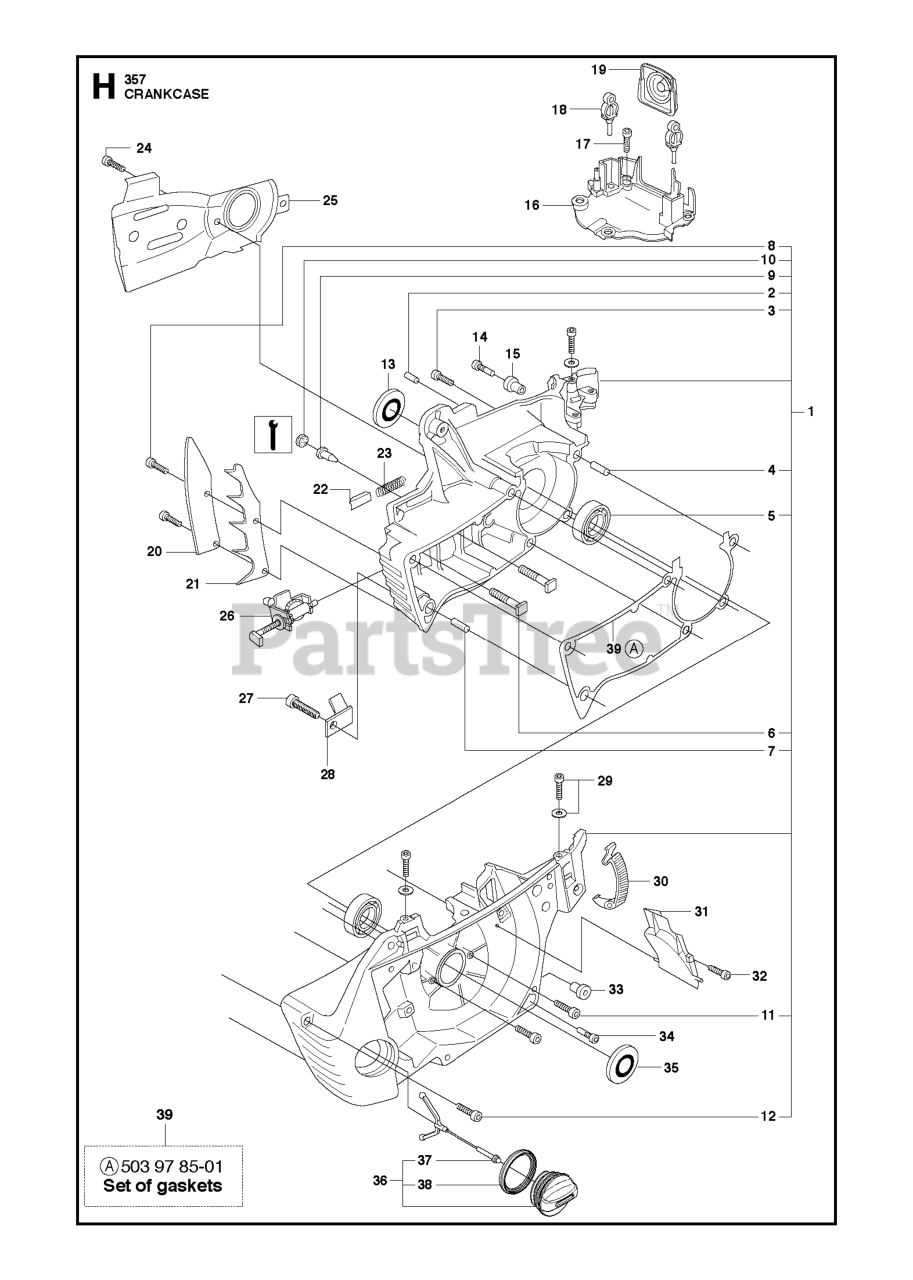

CRANKCASE Parts Diagram

  • Title

31

Husqvarna 503929001

JET

$7.99

$

In Stock, only 2 left!

0

29

Husqvarna 503213901

SCREW

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503905601

Sleeve

$

$

Not available

13

Husqvarna 505275719

SEAL RING

$19.99

$

In Stock, Qty 6

0

25

Husqvarna 503935401

PLATE

$11.99

$

Usually ships in 3-10 days

0

37

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

9

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$5.99

$

In Stock, Qty 8

0

11

Husqvarna 503202516

SCREW

$3.49

$

In Stock, only 2 left!

0

8

Husqvarna 503200776

SCREW

$7.49

$

In Stock, only 2 left!

0

19

Husqvarna 537146501

BELLOWS

$14.99

$

Usually ships in 3-10 days

0

28

Husqvarna 537377901

CHAIN CATCHER

$5.99

$

In Stock, Qty 8

0

21

Husqvarna 503973801

FELLING DOG

$31.99

$

In Stock, only 2 left!

0

39

Husqvarna 503978501

GASKET SET

Note: A = Set of gaskets

$14.99

$

Usually ships in 3-10 days

0

24

Husqvarna 503217412

SCREW

$3.49

$

In Stock, Qty 8

0

12

Husqvarna 503200220

SCREW

$6.49

$

In Stock, Qty 18

0

26

Husqvarna 537071201

CHAIN TENSIONER

$47.99

$

In Stock, only 1 left!

0

22

Husqvarna 503892401

CATCH

$9.99

$

In Stock, Qty 8

0

1

Husqvarna 503925305

CRANKCASE ASSY

$261.99

$

Usually ships in 3-10 days

0

23

Husqvarna 503436501

LOCK SPRING

$7.49

$

In Stock, only 4 left!

0

20

Husqvarna 537021801

BUMPER

$10.99

$

Usually ships in 3-10 days

0

30

Husqvarna 503894701

BUCKLE ORANGE

$14.99

$

Usually ships in 3-10 days

0

10

Husqvarna 537403501

PLUG
(Superseded to 537403502)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 503869201

MOVEMENT LIMITER

$9.99

$

In Stock, only 2 left!

0

2

Husqvarna 721120730

PIN

$4.99

$

In Stock, only 1 left!

0

3

Husqvarna 503200832

SCREW

$5.99

$

In Stock, only 2 left!

0

7

Husqvarna 503905601

Sleeve

$

$

Not available

38

Husqvarna 537215001

SEALING

$8.99

$

In Stock, only 2 left!

0

35

Husqvarna 505275719

SEAL RING

$19.99

$

In Stock, Qty 6

0

36

Husqvarna 537215202

TANK CAP
(Superseded to 537215207)

$11.99

$

In Stock, Qty 6

0

5

Husqvarna 738220225

BALL BEARING-6202-C3 SKF

$31.99

$

In Stock, only 1 left!

0

33

Husqvarna 503869201

MOVEMENT LIMITER

$9.99

$

In Stock, only 2 left!

0

16

Husqvarna 503927903

BASE

$

$

Not available

18

Husqvarna 503869301

SUPPORT

$8.49

$

Usually ships in 3-10 days

0

32

Husqvarna 503217412

SCREW

$3.49

$

In Stock, Qty 8

0

6

Husqvarna 503875401

BOLT

$9.99

$

In Stock, Qty 9

0

17

Husqvarna 503217512

SCREW

$4.99

$

In Stock, only 2 left!

0

27

Husqvarna 503218876

SCREW

$6.49

$

In Stock, Qty 20+

0

14

Husqvarna 503215101

SCREW

$7.49

$

In Stock, only 4 left!

0

34

Husqvarna 503215101

SCREW

$7.49

$

In Stock, only 4 left!

0
