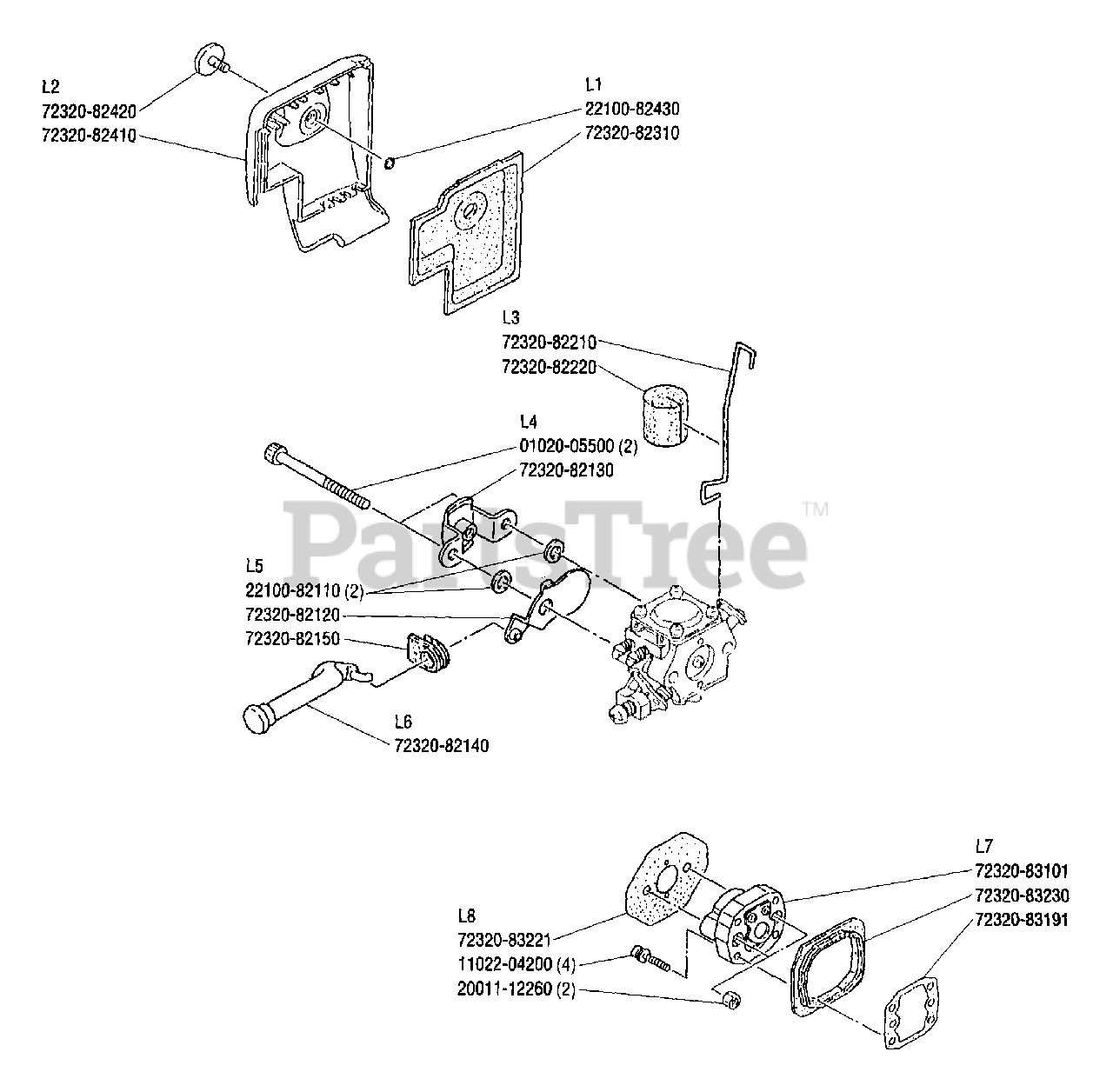

357 - Shindaiwa Chainsaw Air Filter Parts Diagram

Chainsaw

Air Filter Parts Diagram

  • Title
L1-22100-82430

Echo 22100-82430

O-RING
(Superseded to V581000200)

$0.99

$

In Stock, Qty 6

0

L1-72320-82310

Echo 72320-82310

AIR FILTER
(Superseded to A226000850)

$8.99

$

In Stock, only 3 left!

0

L2-72320-82410

Echo 72320-82410

COVER, CLEANER
(Superseded to A232000990)

$

$

Not available

L2-72320-82420

Echo 72320-82420

BOLT, KNOB
(Superseded to A235000240)

$4.49

$

In Stock, Qty 6

0

L3-72320-82210

Echo 72320-82210

THROTTLE ROD
(Superseded to C454000230)

$3.49

$

Usually ships in 2-4 days

0

L3-72320-82220

Echo 72320-82220

FILTER
(Superseded to V418000000)

$0.99

$

Usually ships in 2-4 days

0

L4-01020-05500

Echo 01020-05500

BOLT
(Superseded to 90010505050)

$1.49

$

In Stock, only 3 left!

0

L4-72320-82130

Echo 72320-82130

BRACKET, CARBURETOR

$5.99

$

Usually ships in 2-4 days

0

L5-22100-82110

Echo 22100-82110

WASHER, CARBURETOR
(Superseded to V303000280)

$0.99

$

In Stock, only 2 left!

0

L5-72320-82120

Echo 72320-82120

CHOKE PLATE
(Superseded to A243000230)

$1.99

$

In Stock, only 1 left!

0

L5-72320-82150

Echo 72320-82150

GROMMET, CHOKE
(Superseded to 72320-82151)

$4.49

$

Usually ships in 2-4 days

0

L6-72320-82140

Echo 72320-82140

CHOKE ROD, USE 72320-82141
(Superseded to 72320-82141)

$2.49

$

In Stock, Qty 8

0

L7-72320-83101

Echo 72320-83101

REED VALVE, USE 99909-310
(Superseded to 99909-310)

$42.99

$

Usually ships in 2-4 days

0

L7-72320-83191

Echo 72320-83191

GASKET, VALVE, USE 72320-83192
(Superseded to 72320-83192)

$1.49

$

Usually ships in 2-4 days

0

L7-72320-83230

Echo 72320-83230

GROMMET, VALVE
(Superseded to V144000280)

$1.99

$

Usually ships in 2-4 days

0

L8-11022-04200

Echo 11022-04200

BOLT SW
(Superseded to V202000430)

$0.99

$

In Stock, only 2 left!

0

L8-20011-12260

Echo 20011-12260

NUT
(Superseded to V263000260)

$0.99

$

In Stock, Qty 13

0

L8-72320-83221

Echo 72320-83221

GASKET, CARBURETOR
(Superseded to 72320-83222)

$2.49

$

Usually ships in 2-4 days

0
