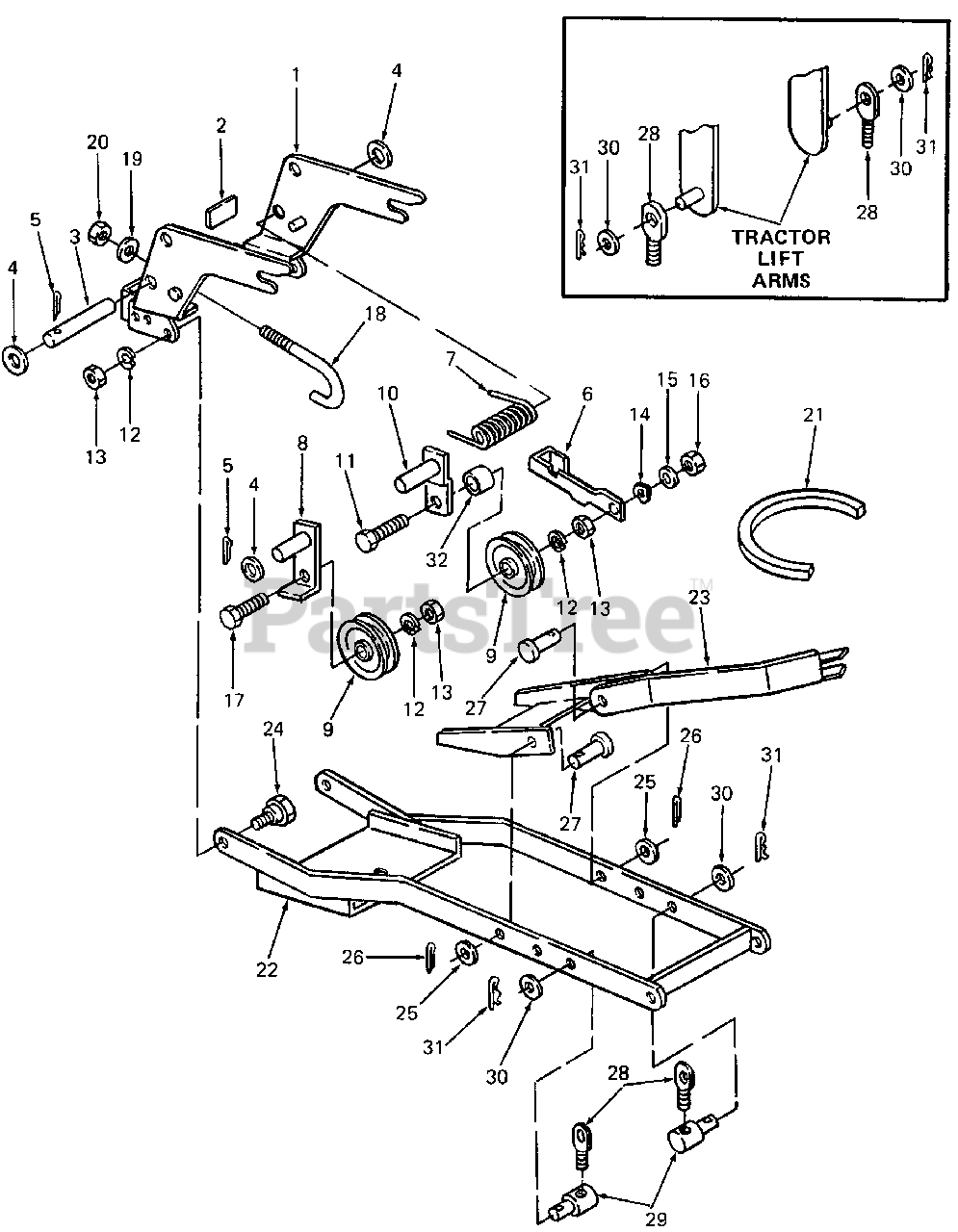

357 (190-357-100) - Cub Cadet 38" Mower Deck Hanging Frame & Mule Drive Parts Diagram

38" Mower Deck

Hanging Frame & Mule Drive Parts Diagram

  • Title

1

Cub Cadet 703-0096

Hanger Assy, Front

$

$

Currently unavailable

2

Cub Cadet 779-3002

Graphic, Idler Adjustment

$

$

Not available

3

Cub Cadet 738-3003

Shaft, Idler Pivot

$

$

Not available

4

Cub Cadet 736-0302

Washer, Flat, .640 X .943 X .050

$

$

Not available

5

Cub Cadet 714-0115

Pin, Cotter, 1/8 Dia X 1.0 Lg

$3.99

$

In Stock, only 2 left!

0

6

Cub Cadet 703-0100

Ratchet, Idler Support
(Superseded to 703-0100-0499)

Variations

Cub Cadet 703-0100-0499

SUPPORT-IDLER RACH - CUB BEIGE (0499)

$

$

Not available

$

$

7

Cub Cadet 732-3008B

Spring, Idler Torsion

$

$

Not available

8

Cub Cadet 703-0111

Arm Assy, Idler - LH

$

$

Not available

9

Cub Cadet 756-3003

Pulley, Idler

$59.99

$

In Stock, only 1 left!

0

10

Cub Cadet 703-0113

Arm Assy, Idler - RH

$

$

Not available

11

Cub Cadet 710-3022

Screw, Hex Cap, 3/8-16 X 2.75 Lg GR5

$4.99

$

In Stock, Qty 7

0

12

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-3012

Washer, Wave, .406 X .64 X .015 Thk
(Superseded to 736-0413)

$6.99

$

In Stock, only 2 left!

0

15

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

17

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 X 1.5 Lg GR5

$4.49

$

In Stock, Qty 6

0

18

Cub Cadet 747-3012

Bolt, Idler Adjuster
(Superseded to 947-3012)

$20.99

$

In Stock, only 3 left!

0

19

Cub Cadet 736-0275

Washer, Flat, .34 X .68 X .062 Thk

$6.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 712-3009

Nut, Hex Center Lock, 5/16-18 GR5

$6.99

$

In Stock, Qty 20+

0

21

Cub Cadet 754-3001

V-Belt
(Superseded to 954-3001)

$70.99

$

In Stock, only 3 left!

0

22

Cub Cadet 703-0102

Frame Assy, Lift - Outer

Variations

Cub Cadet 703-0102-0499

OUTER LIFT FRAME ASSEMBLY (CUB BEIGE) - CUB BEIGE (0499)

$

$

Not available

$

$

23

Cub Cadet 703-0106

Frame Assy, Lift - Center

$

$

Not available

24

Cub Cadet 738-3004

Bolt, Shoulder

$15.99

$

In Stock, only 4 left!

0

25

Cub Cadet 736-3013

Washer, Flat, .531 X 1.0 X .027 Thk

$4.49

$

In Stock, only 3 left!

0

26

Cub Cadet 714-3002

Pin, Cotter, 3/16 Dia X 1.0 Lg

$3.99

$

In Stock, Qty 7

0

27

Cub Cadet 711-3022

Pin, Clevis, .50 Dia X 2.0 Lg

$

$

Currently unavailable

28

Cub Cadet 719-3008

Link, Adjustable

$

$

Not available

29

Cub Cadet 711-3021

Ferrule, Adjustment
(Superseded to 911-3021)

$34.99

$

In Stock, only 1 left!

0

30

Cub Cadet 736-0272

Washer, Flat, .510 X 1.0 X .060 Thk

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 714-3003

Pin, Internal Cotter
(Superseded to 914-3003)

$4.99

$

In Stock, only 1 left!

0

32

Cub Cadet 750-3003

Spacer, .390 X .625 X .50 Lg

$

$

Not available
