357 (190-357-100) - Cub Cadet 38" Mower Deck att Blades & Spindles Parts Diagram

38" Mower Deck

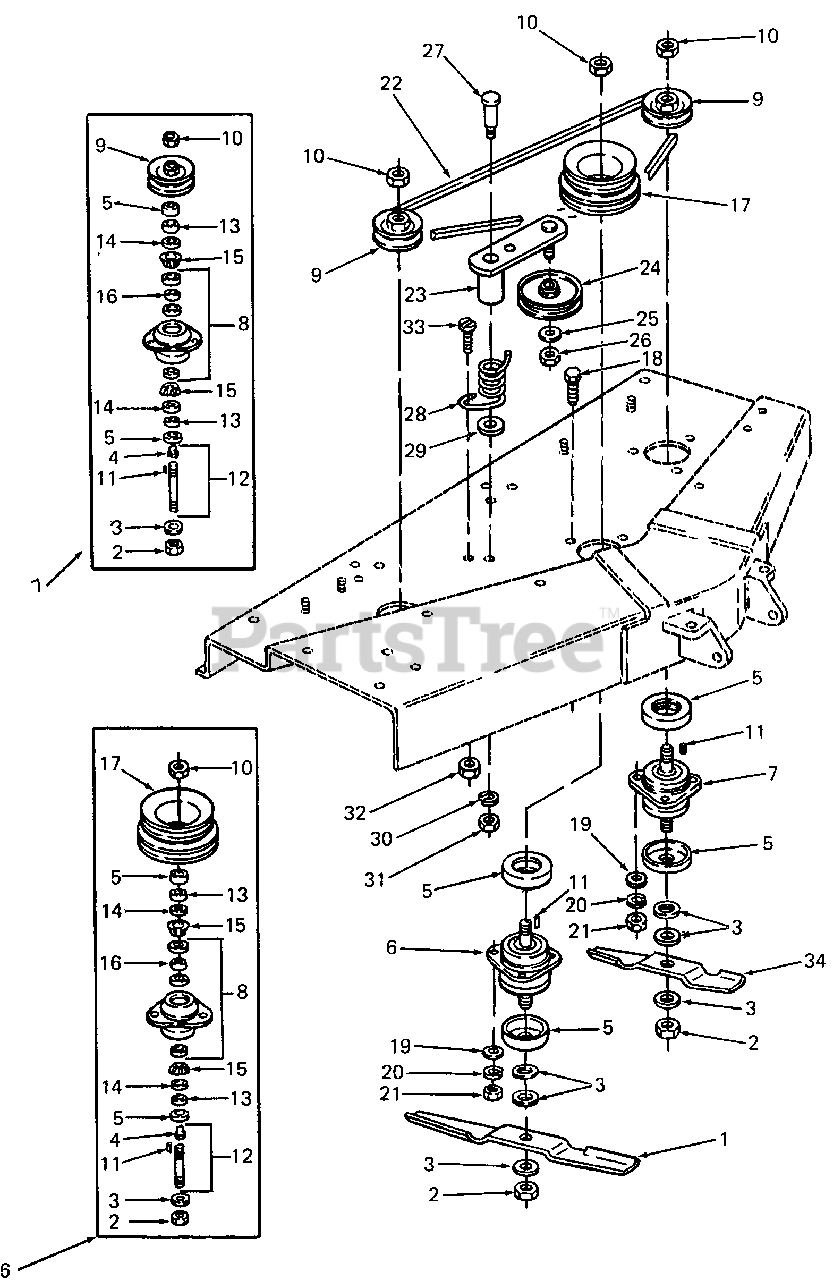

Blades & Spindles Parts Diagram

  • Title

1

Cub Cadet 742-3000

Blade, Mower, 20.0 Lg

$

$

Not available

Cub Cadet 759-3399

Blade, Mower, Hard Coated
(Superseded to 759-3835)

$69.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 712-3018

Nut, Hex, 3/4-16 GR8

$8.99

$

In Stock, Qty 6

0

3

Cub Cadet 736-3014

Washer, Flat, .781 X 2.0 X .105 - Hdn

$4.49

$

In Stock, only 4 left!

0

4

Cub Cadet 737-3000

Fitting, Lube, 3/16
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 703-1387

Cup, Spindle Hdn
(Superseded to 903-1387)

$24.99

$

In Stock, Qty 11

0

6

Cub Cadet 759-3366

Spindle Service Kit - Center
(Superseded to 959-3366)

Note: (Includes Mtg. Hardware)

$

$

Not available

7

Cub Cadet 759-3295

Spindle Service Kit - Outer
(Superseded to 959-3295)

Note: (Includes Mtg. Hardware)

$

$

Not available

8

Cub Cadet 759-3226

Housing, Spindle w/Cups
(Superseded to 959-3226)

$

$

Not available

9

Cub Cadet 756-3006

4L V-Pulley, 3.12 OD
(Superseded to 956-3006)

$45.99

$

In Stock, only 1 left!

0

10

Cub Cadet 712-3026

Nut, Hex Jam, 3/4-16 GR5

$4.99

$

In Stock, Qty 7

0

11

Cub Cadet 714-0135

Key, #91 Woodruff, 1/4 X 3/4 - Hdn

$4.99

$

In Stock, only 2 left!

0

12

Cub Cadet 759-3372

Shaft, Blade w/Fitting
(Superseded to 959-3370)

$93.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 711-3171

Spacer, .755 X 1.25 X .44 Lg
(Superseded to 911-3171)

$11.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 721-3018

Seal, Oil, 1.25 X 1.874 X .25
(Superseded to 921-3018A)

$8.49

$

In Stock, Qty 20+

0

15

Cub Cadet 741-3028

Cone, Bearing
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

16

Cub Cadet 741-3030

Spacer, Bearing
(Superseded to 941-3030)

$12.99

$

In Stock, only 3 left!

0

17

Cub Cadet 756-3004

Pulley, Double

$

$

Not available

18

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0258

Washer, Flat, .378 X 1.0 X .127 Thk

$4.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 754-3002

V-Belt 4L
(Superseded to 954-3002)

$41.99

$

In Stock, only 1 left!

0

23

Cub Cadet 703-0118

Arm Assy, Idler
(Superseded to 759-04324B)

$188.99

$

In Stock, Qty 16

0

24

Cub Cadet 756-3005

Pulley, Flat Idler, 4.06 OD

$45.99

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

27

Cub Cadet 738-3005

Bolt, Shoulder, .68 Dia X 1.56 Lg X 7/16-14
(Superseded to 638-04012A)

$21.99

$

In Stock, Qty 5

0

28

Cub Cadet 732-3009

Spring, Torsion
(Superseded to 932-3009)

$24.99

$

In Stock, only 4 left!

0

29

Cub Cadet 736-3015

Washer, Flat, .469 X .875 X .105 Thk
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, only 4 left!

0

31

Cub Cadet 712-3019

Nut, Hex, 7/16-14 GR5

$6.99

$

In Stock, only 1 left!

0

32

Cub Cadet 712-3020

Nut, Hex Insert Top Lock Jam, 3/8-16
(Superseded to 912-3020)

$6.49

$

In Stock, Qty 10

0

33

Cub Cadet 710-3024

Screw, Truss Hd, 3/8-16 X .75 Lg

$

$

Not available

34

Cub Cadet 742-3001

Blade, Mower, 10.19 Lg
(Superseded to 759-3811)

$

$

Not available

Cub Cadet 759-3400

Blade, Mower, Hard Coated
(Superseded to 759-3836)

$51.99

$

In Stock, only 1 left!

0
