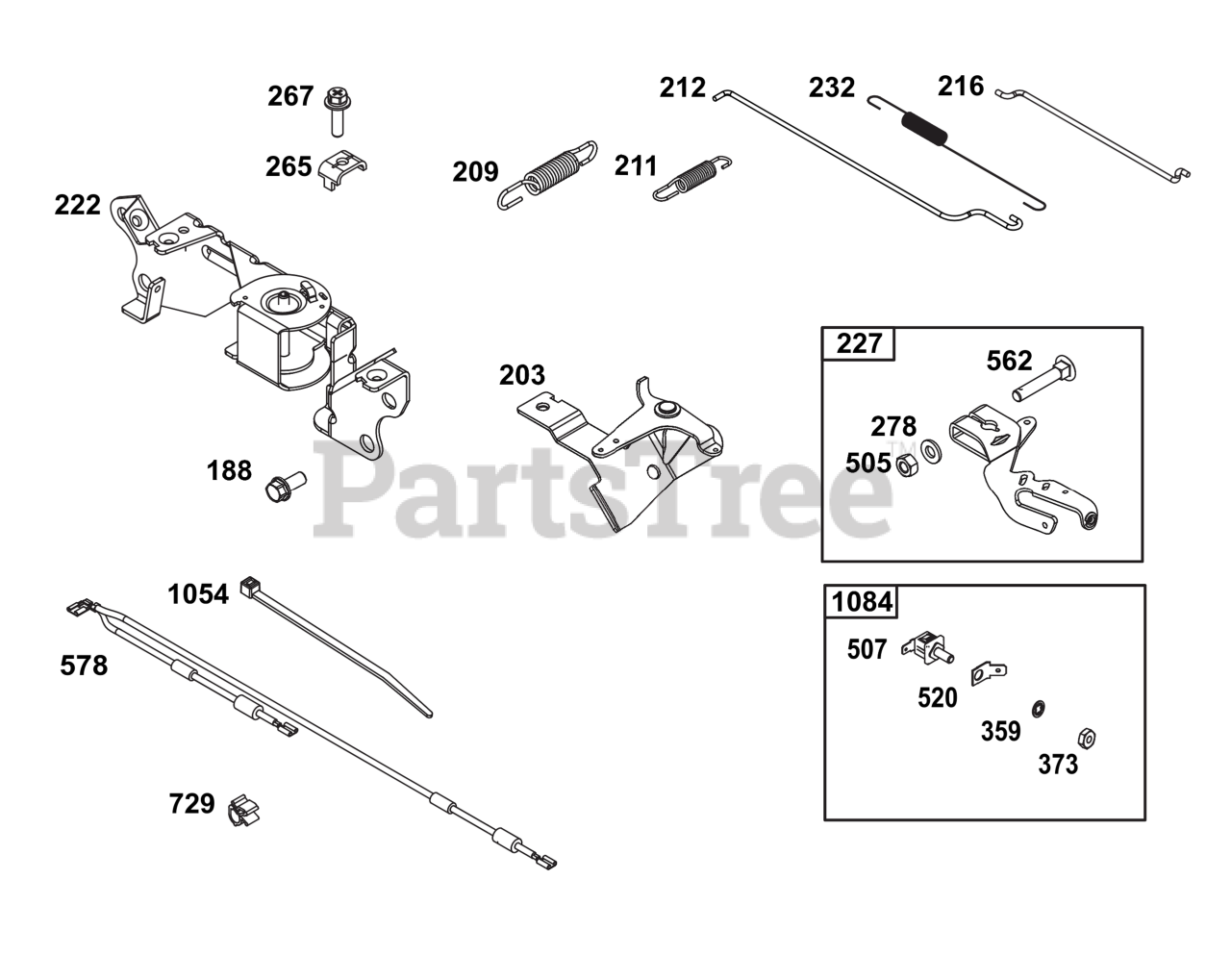

356777-0150-G1 - Briggs & Stratton Vertical Engine Controls Group Parts Diagram

Vertical Engine

Controls Group Parts Diagram

  • Title

188

Briggs & Stratton 692062

SCREW

Note: (Control Bracket)

$3.49

$

In Stock, Qty 20+

0

203

Briggs & Stratton 690923

CRANK, Bell

$15.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 692071

SPRING, Governor

$7.49

$

In Stock, only 2 left!

0

211

Briggs & Stratton 692069

SPRING, Governed Idle

$6.49

$

In Stock, Qty 8

0

212

Briggs & Stratton 847015

LINK-THROTTLE

$6.49

$

Usually ships in 2-12 days

0

216

Briggs & Stratton 690705

LINK, Choke

$6.49

$

In Stock, Qty 11

0

222

Briggs & Stratton 808454

BRACKET, Control

$38.99

$

In Stock, only 2 left!

0

227

Briggs & Stratton 690236

LEVER, Governor Control

$27.99

$

In Stock, only 1 left!

0

232

Briggs & Stratton 692073

SPRING, Governor Link

$9.49

$

In Stock, only 2 left!

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 841552

SCREW

Note: (Casing Clamp)

$3.49

$

In Stock, only 1 left!

0

278

Briggs & Stratton 842122

WASHER

Note: (Governor Control Lever)

$5.49

$

In Stock, only 1 left!

0

359

Briggs & Stratton 691077

WASHER

Note: (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

373

Briggs & Stratton 845823

NUT

Note: (Ground Terminal)

$4.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 844752

NUT

Note: (Governor Control Lever)

$3.49

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 691972

INSULATOR

$8.49

$

In Stock, only 3 left!

0

520

Briggs & Stratton 691084

TERMINAL, Ground

$6.49

$

In Stock, only 2 left!

0

562

Briggs & Stratton 690239

BOLT

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 844547

WIRE ASSEMBLY

$17.99

$

In Stock, Qty 20+

0

729

Briggs & Stratton 593826

CLIP, Wire

$5.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

TIE, Cable

$4.49

$

Usually ships in 2-12 days

0

1084

Briggs & Stratton 848341

CONNECTOR, Terminal

$9.99

$

Usually ships in 2-12 days

0
