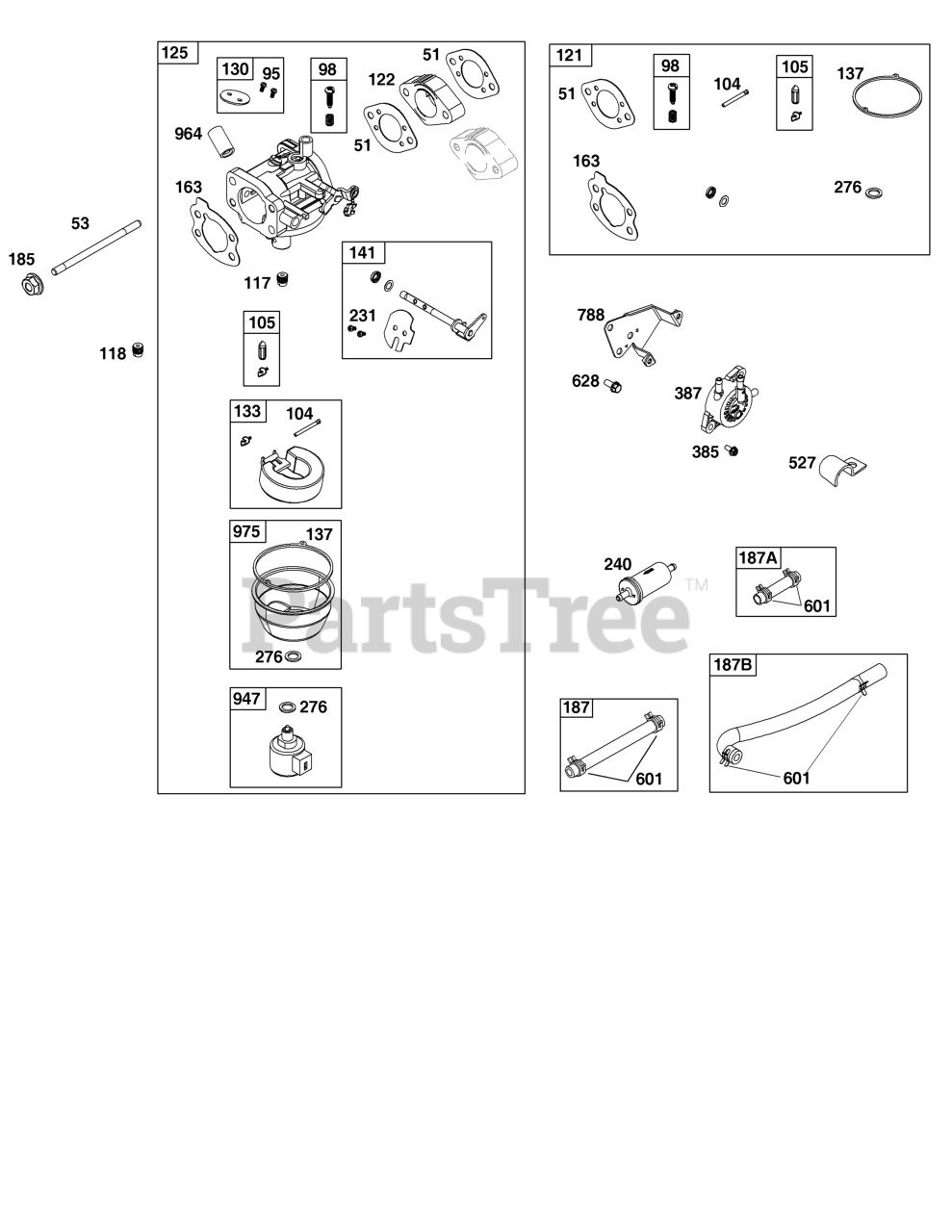

356777-0147-B5 - Briggs & Stratton Vertical Engine Carburetor and Fuel Supply Group Parts Diagram

Vertical Engine

Carburetor and Fuel Supply Group Parts Diagram

  • Title

51

Briggs & Stratton 846597

GASKET, Intake

$2.99

$

In Stock, Qty 11

0

53

Briggs & Stratton 690746

STUD

Note: (Carburetor)

$8.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 846644

SCREW

Note: (Throttle Valve)

$3.49

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 846649

KIT, Idle Speed

$4.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 846646

PIN, Float Hinge

$4.49

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 846643

VALVE, Float Needle

$5.99

$

In Stock, only 2 left!

0

117

Briggs & Stratton 846647

JET, Main

Note: (Standard)

$23.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 846590

JET, Main

Note: (High Altitude)

$14.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 847318

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$108.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 847948

SPACER, Carburetor

$14.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 847050

CARBURETOR

$247.99

$

In Stock, only 2 left!

0

130

Briggs & Stratton 846638

VALVE, Throttle

$5.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 846645

FLOAT, Carburetor

$38.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 846642

GASKET, Float Bowl

$7.49

$

In Stock, only 2 left!

0

141

Briggs & Stratton 846637

KIT, Choke Shaft

$9.99

$

In Stock, only 1 left!

0

163

Briggs & Stratton 844931

GASKET, Air Cleaner

$5.49

$

In Stock, Qty 18

0

185

Briggs & Stratton 690939

NUT

Note: (Air Cleaner Base)

$3.49

$

In Stock, Qty 8

0

187

Briggs & Stratton 791766

LINE, Fuel

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 791880

LINE, Fuel

$11.99

$

Usually ships in 2-12 days

0

187B

Briggs & Stratton 846584

LINE, Fuel

$20.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 846644

SCREW

Note: (Choke Valve)

$3.49

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 846640

WASHER, Sealing

$4.49

$

In Stock, Qty 8

0

385

Briggs & Stratton 807084

SCREW

Note: (Fuel Pump)

$3.49

$

In Stock, Qty 7

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

527

Briggs & Stratton 690423

CLAMP, Tube

$4.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 17

0

628

Briggs & Stratton 806660

SCREW

Note: (Fuel Pump Bracket)

$3.99

$

In Stock, only 1 left!

0

788

Briggs & Stratton 691559

BRACKET, Fuel Pump

$24.99

$

In Stock, only 1 left!

0

947

Briggs & Stratton 846639

SOLENOID, Fuel

$81.99

$

In Stock, Qty 20+

0

964

Briggs & Stratton 590799

CAP, Connector

$9.49

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 846641

BOWL, Float

$12.99

$

In Stock, only 1 left!
