356777-0124-B5 - Briggs & Stratton Vertical Engine Crankcase Cover/Sump and Lubrication Group Parts Diagram

Vertical Engine

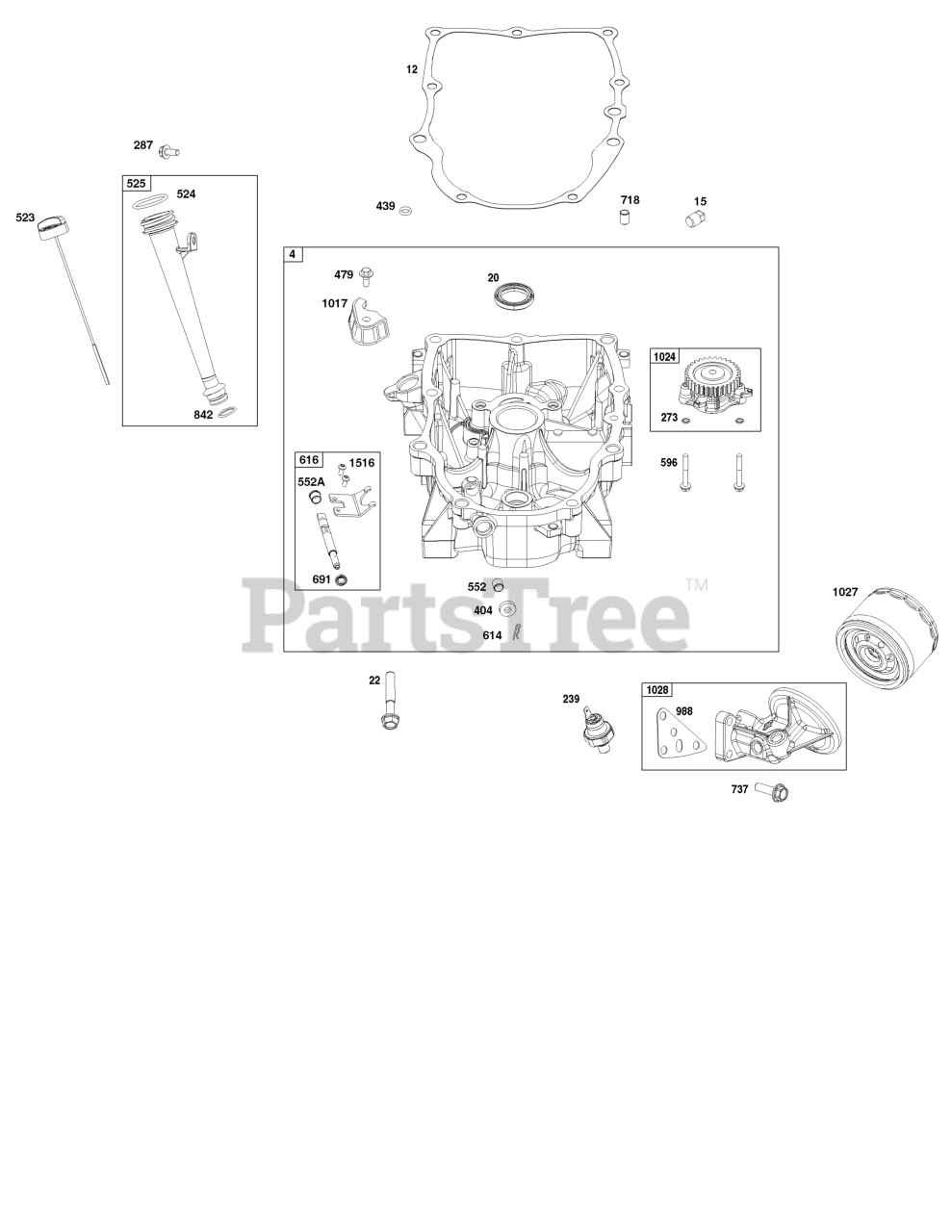

Crankcase Cover/Sump and Lubrication Group Parts Diagram

  • Title

4

Briggs & Stratton 843954

SUMP, Engine

$208.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 846487

GASKET, Crankcase

$41.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

$5.99

$

In Stock, Qty 14

0

20

Briggs & Stratton 805049S

SEAL, Oil

Note: (PTO Side)

$12.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 807362

SCREW

Note: (Crankcase Cover/Sump)

$3.49

$

In Stock, Qty 6

0

239

Briggs & Stratton 690233

SWITCH, Oil Pressure

$28.99

$

In Stock, only 2 left!

0

273

Briggs & Stratton 690681

SEAL, O-Ring

Note: (Oil Pump)

$5.99

$

In Stock, only 2 left!

0

287

Briggs & Stratton 807084

SCREW

Note: (Dipstick Tube)

$3.49

$

In Stock, Qty 7

0

404

Briggs & Stratton 690704

WASHER, Sealing

Note: (Governor Crank)

$5.99

$

In Stock, only 1 left!

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

$5.99

$

In Stock, Qty 20+

0

479

Briggs & Stratton 843961

SCREW

Note: (Oil Pump Screen)

$4.49

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 692101

DIPSTICK

$23.99

$

In Stock, Qty 7

0

524

Briggs & Stratton 691870

SEAL, O-Ring

Note: (Dipstick Tube)

$4.49

$

Usually ships in 2-12 days

0

525

Briggs & Stratton 692093

TUBE, Dipstick

$20.99

$

In Stock, Qty 8

0

552

Briggs & Stratton 690701

BUSHING, Governor Crank

$7.99

$

In Stock, only 1 left!

0

552A

Briggs & Stratton 806686

BUSHING, Governor Crank

$8.49

$

Usually ships in 2-12 days

0

596

Briggs & Stratton 807389

SCREW

Note: (Oil Pump)

$3.99

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 691550

PIN, Cotter

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 806685

CRANK, Governor

$30.99

$

In Stock, only 1 left!

0

616

Briggs & Stratton 806685

CRANK, Governor

$30.99

$

In Stock, only 1 left!

0

691

Briggs & Stratton 842826

SEAL, Governor Shaft

$7.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 806469

PIN, Locating

$5.99

$

In Stock, only 2 left!

0

737

Briggs & Stratton 690679

SCREW

Note: (Oil Filter Adapter)

$3.49

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 692053

SEAL, O-Ring

Note: (Dipstick Tube) (Dipstick Cap)

$6.99

$

In Stock, Qty 9

0

988

Briggs & Stratton 692063

GASKET, Oil Adapter

$4.49

$

In Stock, only 4 left!

0

1017

Briggs & Stratton 843960

SCREEN, Oil Pump

$14.99

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 843959

PUMP, Oil

$96.99

$

Usually ships in 2-12 days

0

1027

Briggs & Stratton 842921

FILTER, Oil

$14.99

$

In Stock, Qty 20+

0

1028

Briggs & Stratton 808235

ADAPTER, Oil Filter

$78.99

$

Usually ships in 2-12 days

0

1516

Briggs & Stratton 846459

SCREW

Note: (Governor Crank)

$3.49

$

Usually ships in 2-12 days

0
