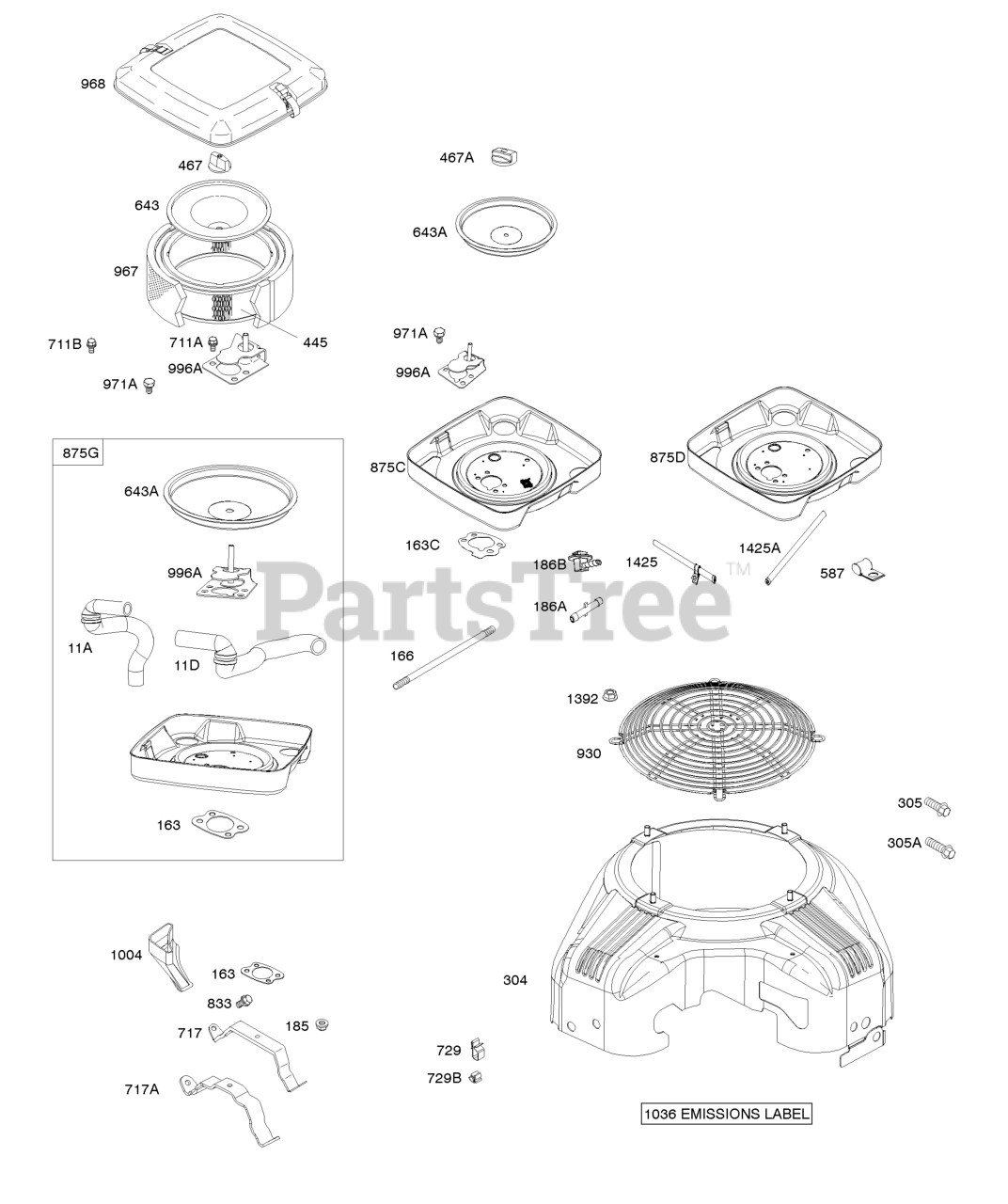

356777-0116-E1 - Briggs & Stratton Vertical Engine Air Cleaner, Blower Housing Parts Diagram

Vertical Engine

Air Cleaner, Blower Housing Parts Diagram

  • Title

11A

Briggs & Stratton 844921

Tube-Breather

Note: Used After Code Date 10010700

$15.99

$

Usually ships in 2-12 days

0

11A

Briggs & Stratton 806083S

Tube-Breather

Note: Used Before Code Date 10010800

$16.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 692081

Gasket-Air Cleaner

Note: (Used With Metal Air Cleaner Base)

$5.49

$

In Stock, only 2 left!

0

163C

Briggs & Stratton 844931

Gasket-Air Cleaner

$5.49

$

In Stock, Qty 15

0

166

Briggs & Stratton 844979

Stud

Note: (Air Cleaner)

$7.49

$

Usually ships in 2-12 days

0

185

Briggs & Stratton 690939

NUT

Note: (Air Cleaner Base)

$3.49

$

In Stock, only 2 left!

0

186A

Briggs & Stratton 845121

Connector-Hose

$6.49

$

In Stock, only 1 left!

0

186B

Briggs & Stratton 845141

CONNECTOR, Hose

$10.99

$

In Stock, only 4 left!

0

304

Briggs & Stratton 844153

Housing-Blower
(Superseded to 84003968)

$132.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 692056

Screw

Note: (Blower Housing) (14mm)

$5.99

$

In Stock, Qty 20+

0

305A

Briggs & Stratton 692062

Screw

Note: (Blower Housing)

$3.49

$

In Stock, Qty 14

0

445

Briggs & Stratton 394018S

Filter-A/C Cartridge

Note: (Round)

$25.99

$

In Stock, Qty 7

0

467

Briggs & Stratton 691985

KNOB, Air Cleaner Cover

$7.99

$

In Stock, Qty 8

0

467A

Briggs & Stratton 844618

Knob-Air Cleaner Cover

$7.99

$

In Stock, Qty 9

0

587

Briggs & Stratton 807116

CLAMP, Cable

$4.99

$

In Stock, only 1 left!

0

643

Briggs & Stratton 692079

Retainer-Air Filter
(Superseded to 844932)

$22.99

$

In Stock, Qty 6

0

643A

Briggs & Stratton 844932

RETAINER, Air Filter

$22.99

$

In Stock, Qty 6

0

711A

Briggs & Stratton 807084

SCREW

Note: (Carburetor Shield)

$3.49

$

In Stock, Qty 7

0

711B

Briggs & Stratton 807163

Screw

Note: (Carburetor Shield)

$3.99

$

In Stock, only 1 left!

0

717

Briggs & Stratton 692542

Bracket-Air Cleaner

$8.49

$

In Stock, only 1 left!

0

729

Briggs & Stratton 807136

Clip-Wire

Note: (Black)(Spring Steel)

$4.49

$

Usually ships in 2-12 days

0

729B

Briggs & Stratton 690586

Clip-Wire

Note: (Snap In)(Nylon)

$3.99

$

In Stock, only 3 left!

0

833

Briggs & Stratton 841233

SCREW

Note: (Air Cleaner Mounting Strap/Stud)

$3.49

$

In Stock, Qty 20+

0

875C

Briggs & Stratton 844929

Base-Air Cleaner

$72.99

$

Usually ships in 2-12 days

0

875G

Briggs & Stratton 846046

Base-Air Cleaner

Note: Used Before Code Date 12020100

$96.99

$

Usually ships in 2-12 days

0

875D

Briggs & Stratton 845142

Base-Air Cleaner

$71.99

$

Usually ships in 2-12 days

0

930

Briggs & Stratton 846284

Guard-Rewind

$51.99

$

Usually ships in 2-12 days

0

967

Briggs & Stratton 272490S

Filter-Pre Cleaner

Note: (Round)

$5.49

$

In Stock, Qty 15

0

968

Briggs & Stratton 699959

Cover-Air Cleaner

Note: (Used With Metal Air Cleaner Base)

$59.99

$

In Stock, only 4 left!

0

971A

Briggs & Stratton 807084

SCREW

Note: (Air Cleaner Base to Carburetor/Throttle Body)

$3.49

$

In Stock, Qty 7

0

996A

Briggs & Stratton 844930

Shield-Carburetor

$36.99

$

Usually ships in 2-12 days

0

1004

Briggs & Stratton 842258

Duct-Air

Note: (Used With Metal Air Cleaner Base)

$22.99

$

Usually ships in 2-12 days

0

1036

Label-Emissions

$

$

Not available

1392

Briggs & Stratton 690939

NUT

Note: (Rewind Guard)

$3.49

$

In Stock, only 2 left!

0

1425

Briggs & Stratton 844712

Hose-Purge Line

$29.99

$

Usually ships in 2-12 days

0
