356447-3079-G1 - Briggs & Stratton Horizontal Engine Alternator, Ignition, Switches Parts Diagram

Horizontal Engine

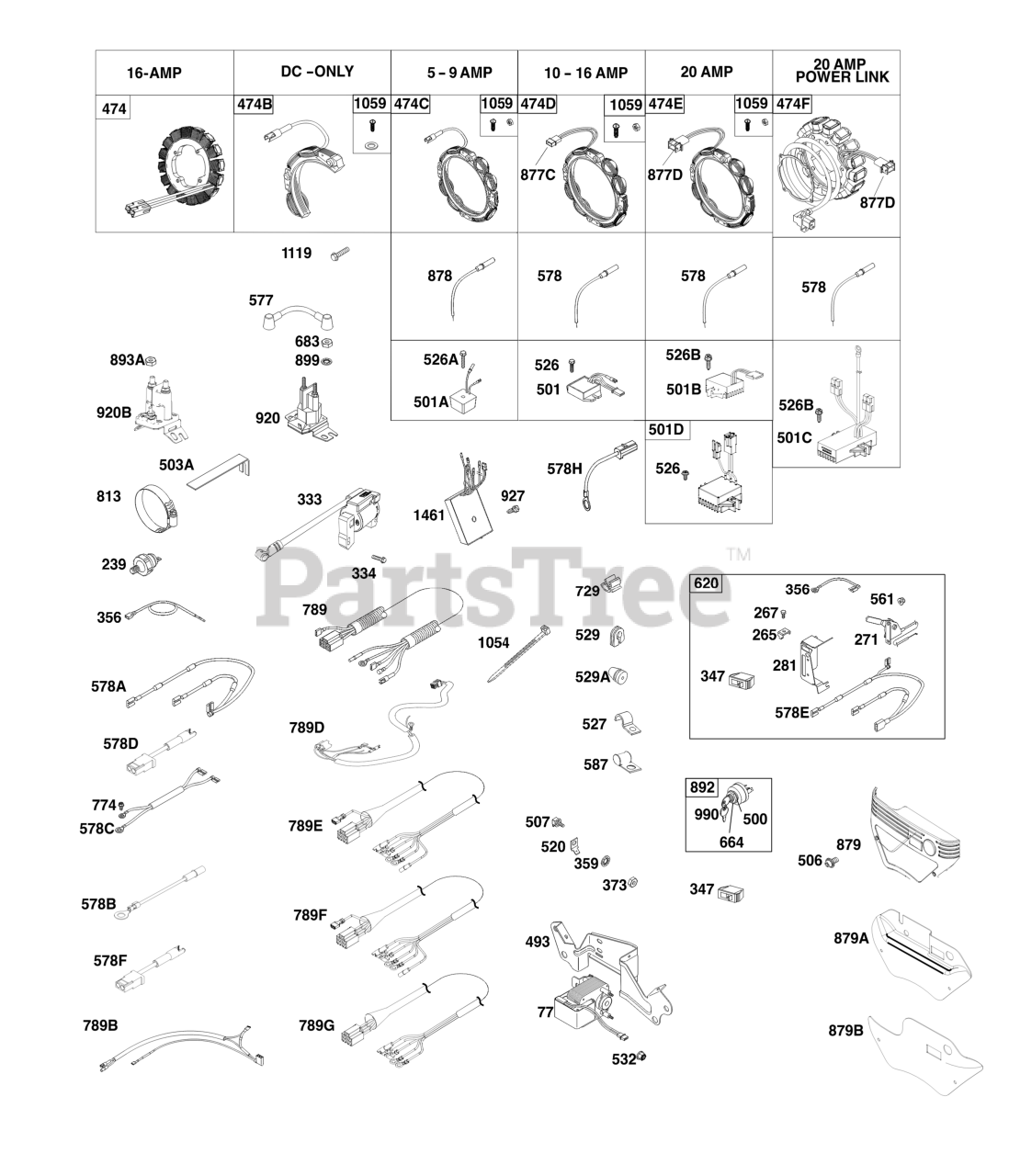

Alternator, Ignition, Switches Parts Diagram

  • Title

20

Briggs & Stratton 805049S

SEAL, Oil

Note: (PTO Side)

$12.99

$

In Stock, Qty 20+

0

77

Motor-Servo

Note: (Motor-Servo is No Longer Available)(See ref#1463 for Replacement Kit)

$

$

Not available

239

Briggs & Stratton 690233

SWITCH, Oil Pressure

$28.99

$

In Stock, Qty 5

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 692083

SCREW

Note: (Casing Clamp)

$3.49

$

In Stock, only 1 left!

0

267

Briggs & Stratton 841552

SCREW

Note: (Casing Clamp) (M5x20mm)

$3.49

$

In Stock, only 1 left!

0

271

Briggs & Stratton 692541

LEVER, Control

$39.99

$

In Stock, Qty 18

0

281

Briggs & Stratton 690742

PANEL, Control

$61.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 845606

ARMATURE, Magneto
(Superseded to 84003819)

$71.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 692066

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 7

0

347

Briggs & Stratton 795333

SWITCH, Rocker

$13.99

$

In Stock, only 1 left!

0

356

Briggs & Stratton 690796

WIRE, Stop

Note: (Control Panel)

$10.99

$

Usually ships in 2-12 days

0

359

Briggs & Stratton 691077

WASHER

Note: (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

373

Briggs & Stratton 691612

NUT

Note: (Ground Terminal)

$3.49

$

In Stock, only 1 left!

0

474D

Briggs & Stratton 592830

ALTERNATOR

Note: (10-16 Amp Regulated)

$101.99

$

In Stock, Qty 20+

0

493

Briggs & Stratton 691518

BRACKET, Mounting

$41.99

$

Usually ships in 2-12 days

0

500

Briggs & Stratton 691086

WASHER

Note: (Key Switch)

$4.49

$

Usually ships in 2-12 days

0

501

Briggs & Stratton 845907

REGULATOR

$61.99

$

In Stock, Qty 20+

0

503A

Briggs & Stratton 845016

STRAP, Starter

Note: (60mm )

$5.99

$

Usually ships in 2-12 days

0

506

Briggs & Stratton 807120

SCREW

Note: (Carburetor/EFI Cover)

$3.99

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 691972

INSULATOR

$8.49

$

In Stock, only 3 left!

0

520

Briggs & Stratton 691084

TERMINAL, Ground

$6.49

$

In Stock, only 2 left!

0

526

Briggs & Stratton 692067

SCREW

Note: (Regulator) (M6x12mm)

$3.99

$

In Stock, Qty 9

0

526B

Briggs & Stratton 691547

SCREW

Note: (Regulator) (M6x28mm)

$5.99

$

In Stock, only 1 left!

0

527

Briggs & Stratton 690423

CLAMP, Tube

$4.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 690744

GROMMET

$7.49

$

Usually ships in 2-12 days

0

529A

Briggs & Stratton 691527

GROMMET

$7.49

$

In Stock, only 2 left!

0

532

Briggs & Stratton 691115

NUT

Note: (Mounting Bracket)

$3.49

$

Usually ships in 2-12 days

0

561

Briggs & Stratton 690713

NUT
(Superseded to 806447)

Note: (Control Lever)

$

$

Not available

577

Briggs & Stratton 690795

CABLE, Starter

$18.99

$

In Stock, only 2 left!

0

578

Briggs & Stratton 692306

WIRE ASSEMBLY

$17.99

$

Usually ships in 2-12 days

0

578A

Briggs & Stratton 844547

WIRE ASSEMBLY

$17.99

$

In Stock, Qty 20+

0

578B

Briggs & Stratton 845849

WIRE ASSEMBLY

$18.99

$

Usually ships in 2-12 days

0

578E

Briggs & Stratton 691999

WIRE ASSEMBLY

$19.99

$

In Stock, only 1 left!

0

578C

Briggs & Stratton 690809

WIRE ASSEMBLY

$19.99

$

Usually ships in 2-12 days

0

587

Briggs & Stratton 807116

CLAMP, Cable

$4.99

$

In Stock, only 1 left!

0

620

Briggs & Stratton 494052

BRACKET, Control

Note: (Ignition Coil)

$118.99

$

Usually ships in 2-12 days

0

664

Briggs & Stratton 691087

NUT

Note: (Key Switch)

$4.49

$

Usually ships in 2-12 days

0

683

Briggs & Stratton 691029

NUT

Note: (Starter Solenoid)

$5.49

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 690586

CLIP, Wire

$3.99

$

In Stock, only 3 left!

0

774

Briggs & Stratton 692067

SCREW

Note: (Stop Wire) (M6x12mm)

$3.99

$

In Stock, Qty 9

0

789

Briggs & Stratton 691996

HARNESS, Wiring

$44.99

$

Usually ships in 2-12 days

0

813

Briggs & Stratton 690635

CLAMP

$24.99

$

Usually ships in 2-12 days

0

877C

Briggs & Stratton 399916

WIRE/CONNECTOR, Alternator

Note: (2 Wires, 7-53/64 )(2 Bare Wire Ends, And Insulated Snap ConnectMale Pin Terminal)

$12.99

$

Usually ships in 2-12 days

0

877D

Briggs & Stratton 698092

WIRE/CONNECTOR, Alternator

$15.99

$

Usually ships in 2-12 days

0

878

Briggs & Stratton 691362

HARNESS, Wiring

$17.99

$

Usually ships in 2-12 days

0

879

Briggs & Stratton 842128

COVER, Carburetor/EFI

$25.99

$

Usually ships in 2-12 days

0

892

Briggs & Stratton 692318

SWITCH, Key

$29.99

$

In Stock, Qty 18

0

893A

Briggs & Stratton 691029

NUT

Note: (Starter Solenoid)

$5.49

$

Usually ships in 2-12 days

0

899

Briggs & Stratton 691077

WASHER

Note: (Starter Solenoid)

$3.49

$

In Stock, only 2 left!

0

920

Briggs & Stratton 691656

SOLENOID, Starter

$31.99

$

In Stock, Qty 20+

0

920B

Briggs & Stratton 846820

SOLENOID, Starter

$30.99

$

In Stock, Qty 5

0

990

Briggs & Stratton 691959

SET, Key

$7.99

$

In Stock, Qty 7

0

1048

Briggs & Stratton 690669

MODULE, Electronic Governor

$

$

Not available

1054

Briggs & Stratton 280275

TIE, Cable

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691552

SCREW

Note: (Alternator) (M4x30mm)

$3.99

$

Usually ships in 2-12 days

0
