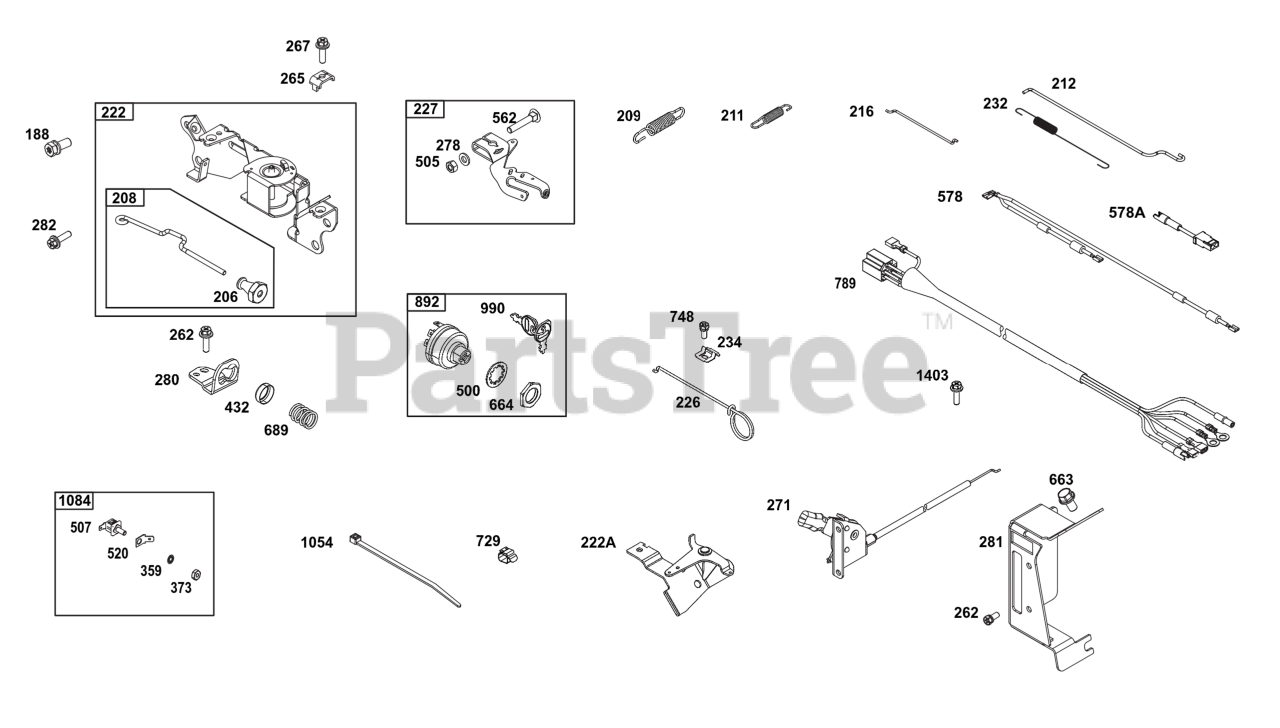

356447-0647-F1 - Briggs & Stratton Horizontal Engine Controls Group Parts Diagram

Horizontal Engine

Controls Group Parts Diagram

  • Title

188

Briggs & Stratton 691902

SCREW

Note: (Control Bracket) (M5x20mm)

$3.49

$

In Stock, only 4 left!

0

206

Briggs & Stratton 691244

NUT, Governor Adjusting

$14.99

$

Usually ships in 2-12 days

0

208

Briggs & Stratton 808453

ROD, Governor Control

$14.99

$

In Stock, only 2 left!

0

209

Briggs & Stratton 692070

SPRING, Governor

$5.99

$

In Stock, Qty 8

0

211

Briggs & Stratton 692069

SPRING, Governed Idle

$6.49

$

In Stock, Qty 8

0

212

Briggs & Stratton 847015

LINK, Throttle

$6.49

$

Usually ships in 2-12 days

0

216

Briggs & Stratton 690705

LINK, Choke

Note: (M5x20mm)

$6.49

$

In Stock, Qty 9

0

222

Briggs & Stratton 808454

BRACKET, Control

$38.99

$

In Stock, only 2 left!

0

222A

Briggs & Stratton 690923

CRANK, Bell

Note: (M5x12mm)

$15.99

$

Usually ships in 2-12 days

0

226

Briggs & Stratton 692075

ROD, Choke

$9.49

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 690236

LEVER, Governor Control

$27.99

$

In Stock, only 1 left!

0

232

Briggs & Stratton 692073

SPRING, Governor Link

$9.49

$

In Stock, only 1 left!

0

234

Briggs & Stratton 691723

CLIP, Control Rod

$6.99

$

In Stock, Qty 14

0

262

Briggs & Stratton 841552

SCREW

Note: (Rod Bracket)

$3.49

$

In Stock, only 1 left!

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 841552

SCREW

Note: (Casing Clamp)

$3.49

$

In Stock, only 1 left!

0

271

Briggs & Stratton 692541

LEVER, Control

$39.99

$

In Stock, Qty 18

0

278

Briggs & Stratton 842122

WASHER

Note: (Governor Control Lever)

$5.49

$

In Stock, only 4 left!

0

280

Briggs & Stratton 691526

BRACKET, Fixed Speed

$9.99

$

Usually ships in 2-12 days

0

281

Briggs & Stratton 690742

PANEL, Control

$61.99

$

Usually ships in 2-12 days

0

282

Briggs & Stratton 841552

SCREW

Note: (Control Lever)

$3.49

$

In Stock, only 1 left!

0

359

Briggs & Stratton 691077

WASHER

Note: (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

373

Briggs & Stratton 845823

NUT

Note: (Ground Terminal)

$4.99

$

Usually ships in 2-12 days

0

432

Briggs & Stratton 691509

CAP, Spring

$5.99

$

In Stock, only 1 left!

0

500

Briggs & Stratton 847144

SET, Washer/Nut

Note: (Key Switch)

$10.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 844752

NUT

Note: (Governor Control Lever)

$3.49

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 691972

INSULATOR

$8.49

$

In Stock, only 2 left!

0

520

Briggs & Stratton 691084

TERMINAL, Ground

$6.49

$

In Stock, only 1 left!

0

562

Briggs & Stratton 690239

BOLT

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 844547

WIRE ASSEMBLY

$17.99

$

In Stock, Qty 20+

0

578A

Briggs & Stratton 846588

WIRE ASSEMBLY

$15.99

$

Usually ships in 2-12 days

0

663

Briggs & Stratton 692056

SCREW

Note: (Control Panel)

$5.99

$

In Stock, Qty 20+

0

664

Briggs & Stratton 691087

NUT

Note: (Key Switch)

$4.49

$

Usually ships in 2-12 days

0

689

Briggs & Stratton 691272

SPRING, Friction

$13.99

$

In Stock, only 1 left!

0

729

Briggs & Stratton 593826

CLIP, Wire

$5.99

$

Usually ships in 2-12 days

0

748

Briggs & Stratton 692083

SCREW

Note: (Control Rod Clip)

$3.49

$

In Stock, only 1 left!

0

789

Briggs & Stratton 846767

HARNESS, Wiring

$53.99

$

Usually ships in 2-12 days

0

892

Briggs & Stratton 692318

SWITCH, Key

$29.99

$

In Stock, Qty 18

0

990

Briggs & Stratton 691959

SET, Key

$7.99

$

In Stock, Qty 7

0

1054

Briggs & Stratton 280275

TIE, Cable

$4.49

$

Usually ships in 2-12 days

0

1084

Briggs & Stratton 848341

CONNECTOR, Terminal

$9.99

$

Usually ships in 2-12 days

0

1403

Briggs & Stratton 841552

SCREW

$3.49

$

In Stock, only 1 left!
