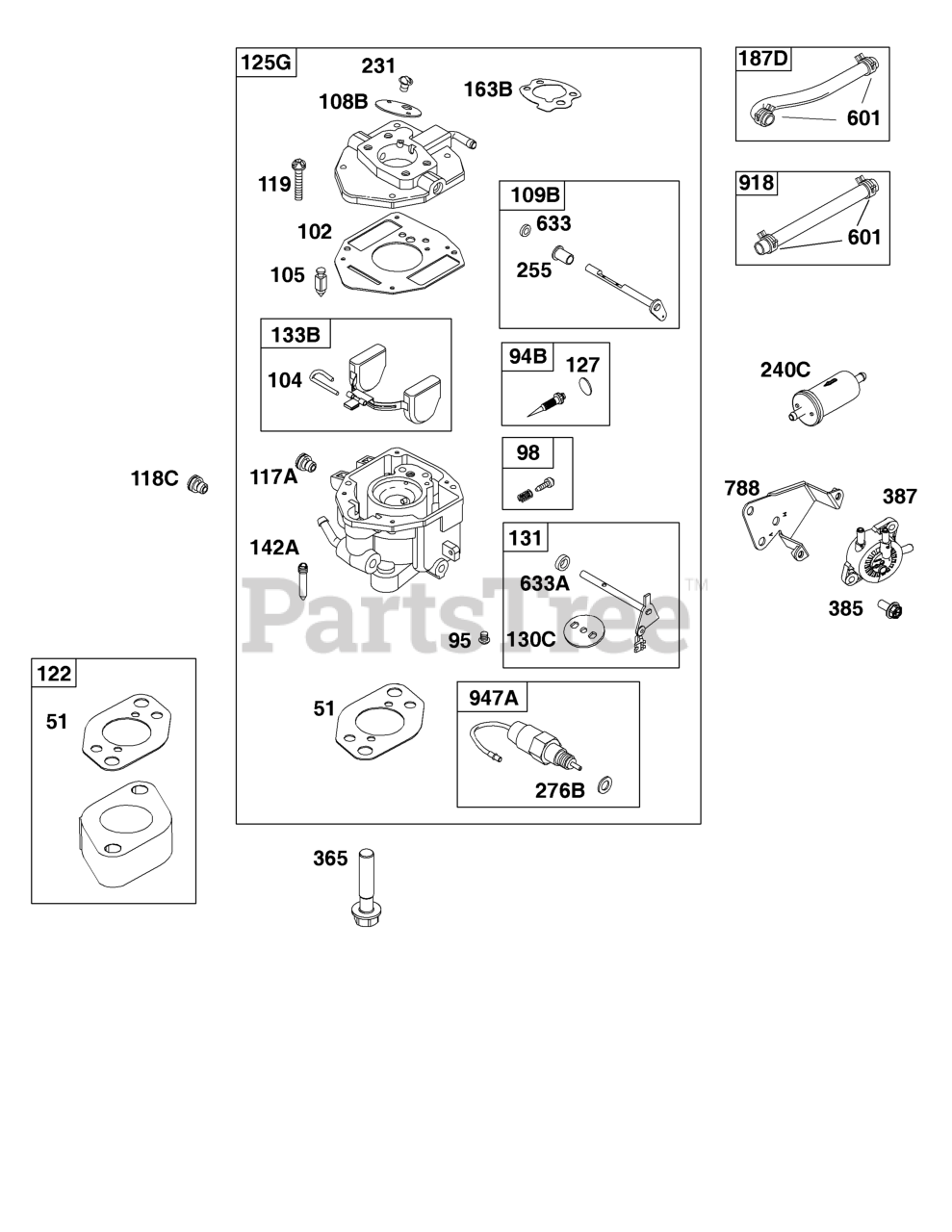

356447-0613-B1 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

Carburetor Group Parts Diagram

  • Title

51

Briggs & Stratton 691694

Gasket-Intake

$2.99

$

In Stock, Qty 20+

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

94B

Briggs & Stratton 847026

Kit-Idle Mixture

$16.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 808177

Screw-Idle Speed

$13.99

$

In Stock, only 1 left!

0

102

Briggs & Stratton 692077

Gasket-Carburetor Body

$25.99

$

In Stock, Qty 20+

0

104

Briggs & Stratton 690723

Pin-Float Hinge

$9.49

$

In Stock, only 3 left!

0

105

Briggs & Stratton 797410

Valve-Float Needle

$15.99

$

In Stock, Qty 20+

0

108B

Briggs & Stratton 844989

Valve-Choke

$8.99

$

Usually ships in 2-12 days

0

109B

Briggs & Stratton 843321

Shaft-Choke

$47.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 806439

Jet-Main

Note: (Standard)

$17.99

$

Usually ships in 2-12 days

0

118C

Briggs & Stratton 842439

Jet-Main

Note: (High Altitude) (5000 Feet)

$16.99

$

Usually ships in 2-12 days

0

119

Briggs & Stratton 690720

Screw (Upper To Lower Carburetor Body)

Note: (Upper Carburetor Body to Lower Carburetor Body)

$3.49

$

In Stock, only 2 left!

0

122

Briggs & Stratton 846579

SPACER-CARBURETOR

$7.49

$

Usually ships in 2-12 days

0

125G

Briggs & Stratton 845248

Carburetor

$371.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 847028

Plug-Welch

$5.99

$

In Stock, only 1 left!

0

130C

Briggs & Stratton 806132

Valve-Throttle
(Superseded to 84003952)

$15.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 845022

Kit-Throttle Shaft

$

$

Not available

133B

Briggs & Stratton 843320

Float-Carburetor

$30.99

$

In Stock, only 2 left!

0

142A

Briggs & Stratton 806987

Nozzle-Carburetor

$33.99

$

Usually ships in 2-12 days

0

163B

Briggs & Stratton 844931

Gasket-Air Cleaner

$5.49

$

In Stock, Qty 18

0

187D

Briggs & Stratton 791744

LINE, Fuel

Note: (Formed)(14 Inches Long)(Cut To Required Length)

$14.99

$

In Stock, only 2 left!

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

240C

Briggs & Stratton 845125

FILTER, Fuel

$7.49

$

In Stock, Qty 20+

0

255

Briggs & Stratton 690721

BUSHING, Choke Shaft

$8.49

$

Usually ships in 2-12 days

0

276B

Briggs & Stratton 806137

Washer-Sealing

$6.99

$

Usually ships in 2-12 days

0

365

Briggs & Stratton 690711

Screw

Note: (Carburetor/Throttle Body)

$6.99

$

Usually ships in 2-12 days

0

385

Briggs & Stratton 807084

SCREW

Note: (Fuel Pump)

$3.49

$

In Stock, only 3 left!

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 17

0

633

Briggs & Stratton 690722

SEAL, Choke/Throttle Shaft

$15.99

$

In Stock, only 4 left!

0

633A

Briggs & Stratton 806131

SEAL, Choke/Throttle Shaft

$5.99

$

Usually ships in 2-12 days

0

788

Briggs & Stratton 691559

Bracket-Fuel Pump

$24.99

$

In Stock, only 1 left!

0

918

Briggs & Stratton 791880

Hose-Vacuum

$11.99

$

Usually ships in 2-12 days

0

947A

Briggs & Stratton 692094

Solenoid-Fuel

$166.99

$

In Stock, only 4 left!
