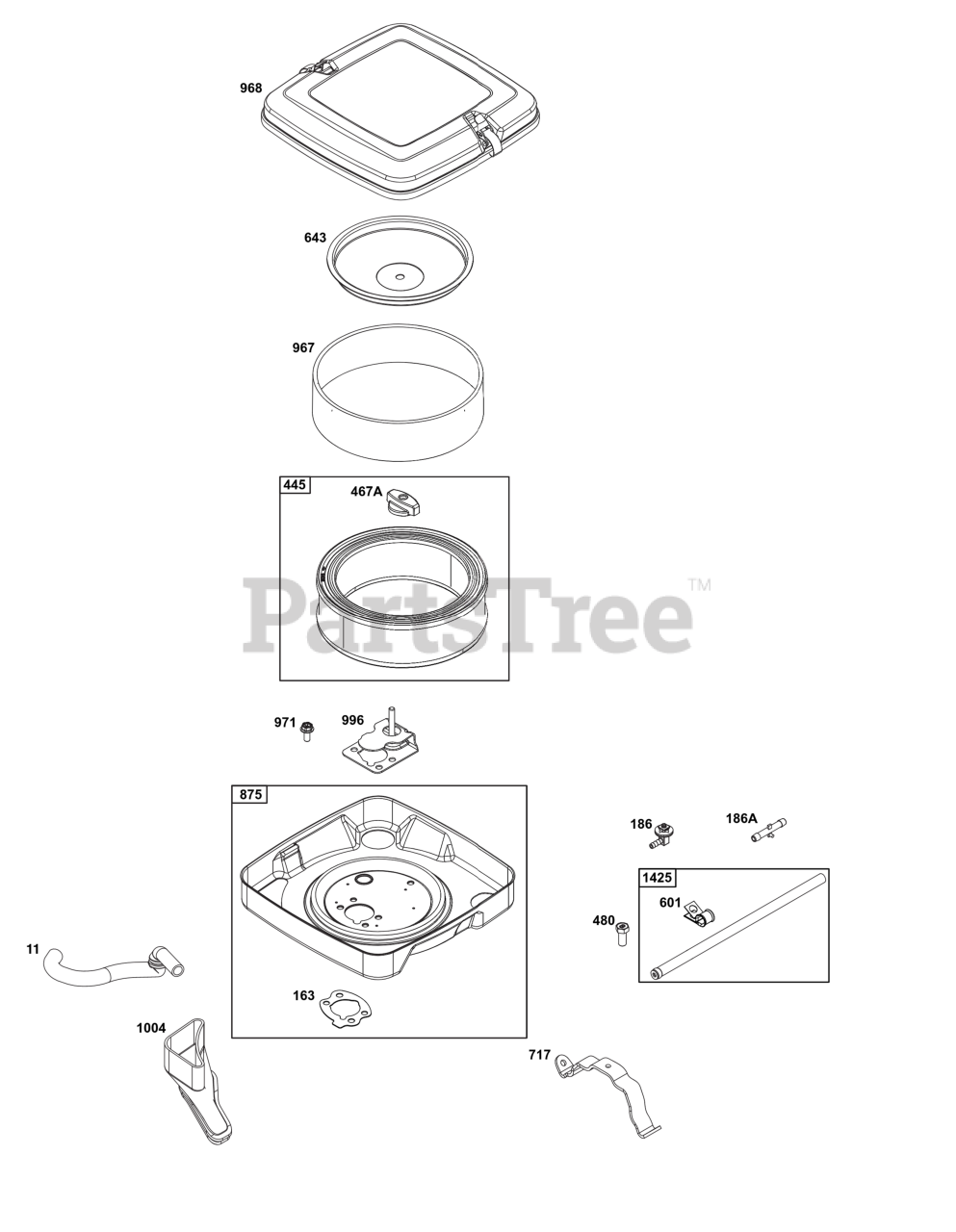

356447-0420-G1 - Briggs & Stratton Horizontal Engine Air Cleaner Group Parts Diagram

Horizontal Engine

Air Cleaner Group Parts Diagram

  • Title

11

Briggs & Stratton 844921

TUBE, Breather

$15.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 844931

GASKET, Air Cleaner

$5.49

$

In Stock, Qty 18

0

186

Briggs & Stratton 845141

CONNECTOR, Hose

$10.99

$

In Stock, only 4 left!

0

186A

Briggs & Stratton 845121

CONNECTOR, Hose

$6.49

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 394018S

FILTER, A/C Cartridge

$25.99

$

In Stock, Qty 15

0

467A

Briggs & Stratton 846431

KNOB, Air Cleaner Cover

$7.99

$

In Stock, Qty 11

0

480

Briggs & Stratton 806660

SCREW

Note: (Tube Clamp)

$3.99

$

In Stock, only 1 left!

0

601

Briggs & Stratton 593879

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 844932

RETAINER, Air Cleaner

$22.99

$

In Stock, Qty 7

0

717

Briggs & Stratton 692153

BRACKET, Air Cleaner

$9.49

$

In Stock, only 1 left!

0

875

Briggs & Stratton 845142

BASE, Air Cleaner

$71.99

$

Usually ships in 2-12 days

0

967

Briggs & Stratton 272490S

FILTER, Pre Cleaner

$5.49

$

In Stock, Qty 10

0

968

Briggs & Stratton 699959

COVER-AIR CLEANER

$59.99

$

In Stock, only 4 left!

0

971

Briggs & Stratton 807084

SCREW

Note: (Air Cleaner Base to Carburetor/Throttle Body)

$3.49

$

In Stock, Qty 7

0

996

Briggs & Stratton 844930

SHIELD, Carburetor

$36.99

$

Usually ships in 2-12 days

0

1004

Briggs & Stratton 842258

DUCT, Air

$22.99

$

Usually ships in 2-12 days

0

1425

Briggs & Stratton 844712

HOSE, Purge Line

$29.99

$

Usually ships in 2-12 days

0
