356447-0364-G1 - Briggs & Stratton Horizontal Engine Exhaust System Parts Diagram

Horizontal Engine

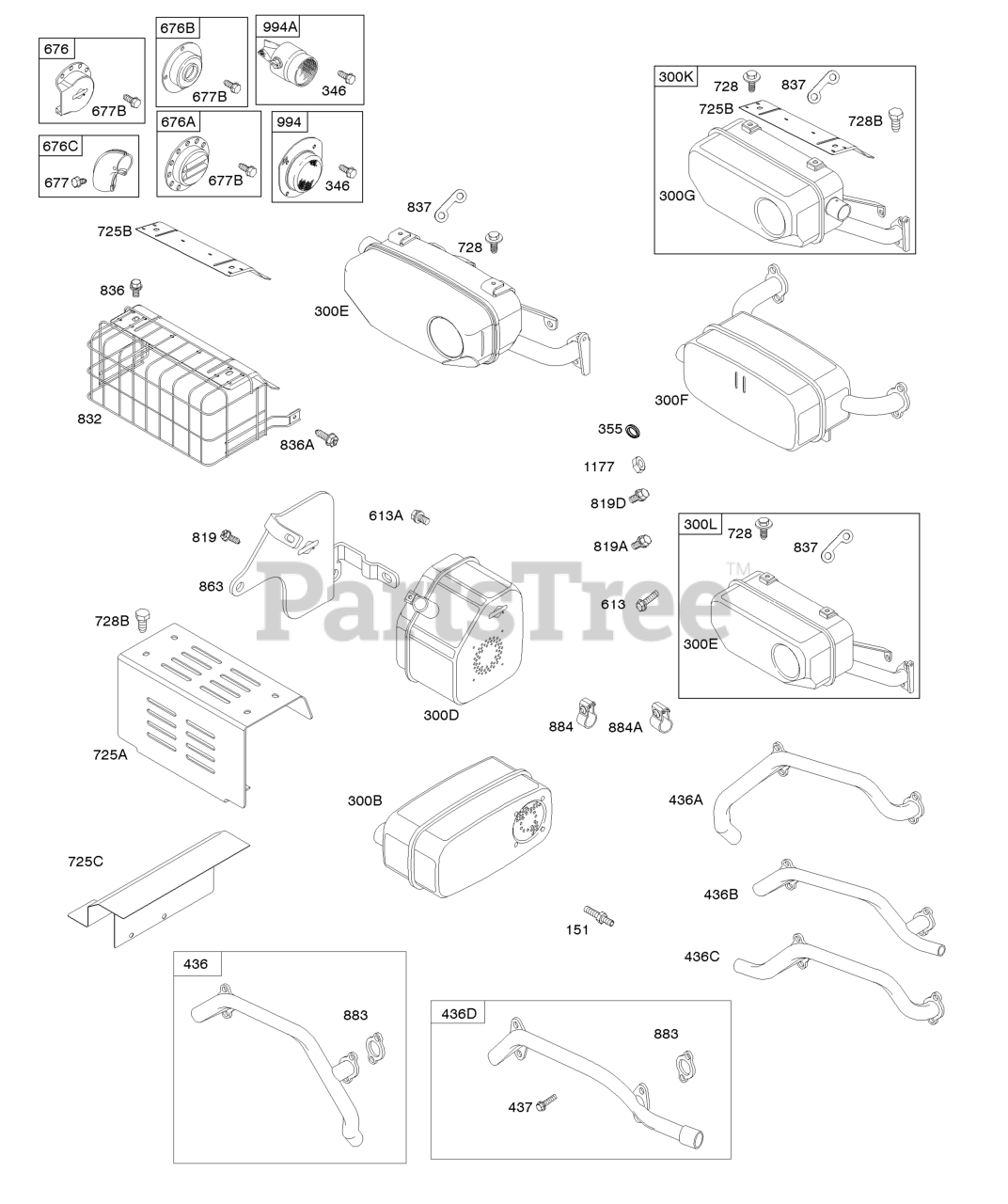

Exhaust System Parts Diagram

  • Title

151

Briggs & Stratton 841185

Stud
(Superseded to 84006950)

Note: (Exhaust Manifold)

$6.49

$

Usually ships in 2-12 days

0

300G

Briggs & Stratton 691562

Muffler

$274.99

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 690661

SCREW

Note: (Spark Arrestor) (#8-18 x 0.375 lg)

$3.49

$

In Stock, Qty 8

0

355

Briggs & Stratton 690944

Washer

Note: (Muffler Bracket)

$5.99

$

Usually ships in 2-12 days

0

436

Briggs & Stratton 692061

Manifold-Exhaust

Note: (Lo Mount)(Oil Filter Side)

$149.99

$

Usually ships in 2-12 days

0

436A

Briggs & Stratton 691499

Manifold-Exhaust

Note: (Lo Mount)(Starter Motor Side)

$152.99

$

Usually ships in 2-12 days

0

436B

Briggs & Stratton 691501

Manifold-Exhaust

$128.99

$

Usually ships in 2-12 days

0

436C

Briggs & Stratton 691502

Manifold-Exhaust

Note: (Cylinder #1) (Side Outlet)

$128.99

$

Usually ships in 2-12 days

0

436D

Briggs & Stratton 805609

Manifold-Exhaust

$152.99

$

In Stock, only 1 left!

0

437

Briggs & Stratton 691902

Screw

Note: (Exhaust Manifold) (M8x20mm)

$3.49

$

In Stock, only 4 left!

0

613

Briggs & Stratton 691902

Screw

Note: (Muffler) (M8x20mm)

$3.49

$

In Stock, only 4 left!

0

613A

Briggs & Stratton 692067

SCREW

Note: (Muffler) (M6x12mm)

$3.99

$

In Stock, Qty 9

0

676

Briggs & Stratton 795036

DEFLECTOR, Muffler

$8.49

$

In Stock, only 1 left!

0

676A

Briggs & Stratton 795038

Deflector-Muffler

$15.99

$

Usually ships in 2-12 days

0

676B

Briggs & Stratton 396903

DEFLECTOR, Muffler

$14.99

$

Usually ships in 2-12 days

0

676C

Briggs & Stratton 495518

Deflector-Muffler

$22.99

$

In Stock, only 1 left!

0

677

Briggs & Stratton 810079

Screw-Hex. Hd.

Note: (Muffler Deflector)

$4.49

$

In Stock, only 1 left!

0

677B

Briggs & Stratton 690661

SCREW

Note: (Muffler Deflector) (#8-18 x 0.375 lg)

$3.49

$

In Stock, Qty 8

0

725A

Briggs & Stratton 805702

Shield-Heat

$39.99

$

Usually ships in 2-12 days

0

725B

Briggs & Stratton 691498

Shield-Heat

$46.99

$

Usually ships in 2-12 days

0

725C

Briggs & Stratton 806102

Shield-Heat

$56.99

$

Usually ships in 2-12 days

0

728

Briggs & Stratton 691514

Screw

Note: (Heat Shield)

$4.99

$

Usually ships in 2-12 days

0

728B

Briggs & Stratton 692067

SCREW

Note: (Heat Shield) (M6x12mm)

$3.99

$

In Stock, Qty 9

0

819

Briggs & Stratton 692056

Screw

Note: (Muffler Bracket) (M8x14mm)

$5.99

$

In Stock, Qty 5

0

819A

Briggs & Stratton 690943

Screw

Note: (Muffler Bracket) (M8x16mm)

$3.49

$

Usually ships in 2-12 days

0

819D

Briggs & Stratton 692062

Screw

Note: (Muffler Bracket) (M8x18mm)

$3.49

$

In Stock, Qty 20+

0

832

Briggs & Stratton 691571

Guard-Muffler

$103.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 691514

Screw

Note: (Muffler Guard)

$4.99

$

Usually ships in 2-12 days

0

836A

Briggs & Stratton 692067

SCREW

Note: (Muffler Guard) (M6x12mm)

$3.99

$

In Stock, Qty 9

0

837

Briggs & Stratton 808085

Spacer (Includes 2)

$18.99

$

Usually ships in 2-12 days

0

863

Briggs & Stratton 691513

Bracket-Muffler

$55.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 691613

Gasket-Exhaust

$5.49

$

Usually ships in 2-12 days

0

884

Briggs & Stratton 690898

Clamp-Muffler

$14.99

$

Usually ships in 2-12 days

0

884A

Briggs & Stratton 691956

Clamp-Muffler

$15.99

$

In Stock, only 3 left!

0

994

Briggs & Stratton 794945

ARRESTOR, Spark

$53.99

$

Usually ships in 2-12 days

0

994A

Briggs & Stratton 808361

Arrestor-Spark
(Superseded to 594562)

$37.99

$

Usually ships in 2-12 days

0

1177

Briggs & Stratton 845823

Nut

Note: (Muffler) (M8)

$4.99

$

Usually ships in 2-12 days

0
