356447-0364-G1 - Briggs & Stratton Horizontal Engine Cylinder Head, Valves, Valve Covers Parts Diagram

Horizontal Engine

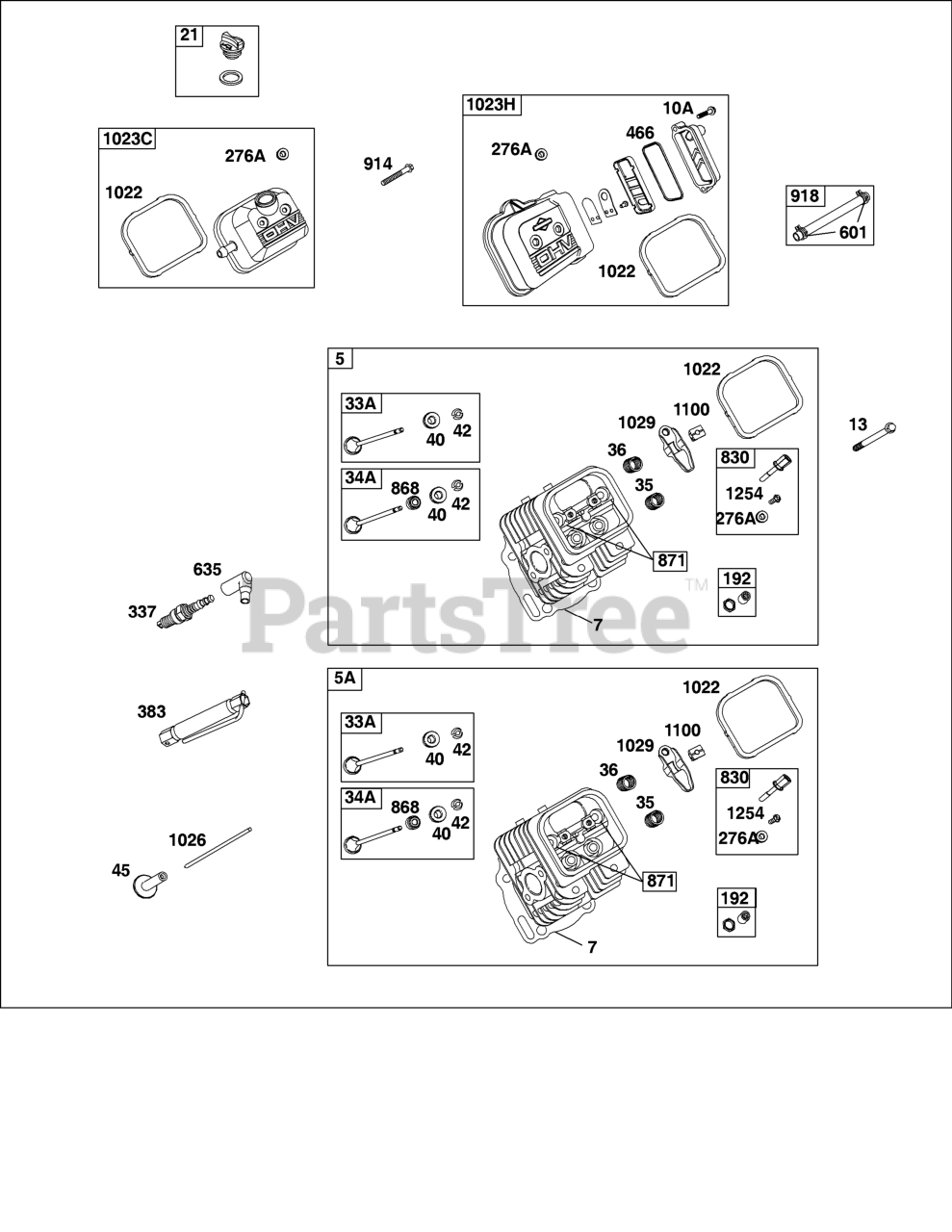

Cylinder Head, Valves, Valve Covers Parts Diagram

  • Title

5

Briggs & Stratton 845486

Head-Cylinder
(Superseded to 84002010)

Note: (Cylinder #1)

$232.99

$

In Stock, Qty 6

0

5A

Briggs & Stratton 845487

Head-Cylinder

Note: (Cylinder #2)

$220.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 845884

Gasket-Cylinder Head

Note: (Graphoil)

$30.99

$

In Stock, Qty 10

0

10A

Briggs & Stratton 806421

SCREW

Note: (Breather Assembly) (Breather Assembly)

$

$

Not available

13

Briggs & Stratton 692059

Screw

Note: (Cylinder Head)

$3.99

$

In Stock, only 4 left!

0

21

Briggs & Stratton 809500

Cap-Oil Fill

$10.99

$

In Stock, Qty 15

0

33A

Briggs & Stratton 807681

Valve-Exhaust
(Superseded to 808687)

$43.99

$

In Stock, Qty 14

0

34A

Briggs & Stratton 807680

Valve-Intake

$26.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 692084

Spring-Valve

Note: (Intake)

$6.49

$

In Stock, Qty 11

0

36

Briggs & Stratton 692084

Spring-Valve

Note: (Exhaust)

$6.49

$

In Stock, Qty 11

0

40

Briggs & Stratton 692058

Retainer-Valve

$5.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 807683

RETAINER, Valve

$6.99

$

In Stock, Qty 12

0

45

Briggs & Stratton 843379

Tappet-Valve

$9.99

$

Usually ships in 2-12 days

0

192

Briggs & Stratton 807623

Adjuster-Rocker Arm

$11.99

$

In Stock, only 1 left!

0

276A

Briggs & Stratton 807085

Washer-Sealing

Note: (Head)(Rocker Cover)

$3.99

$

In Stock, Qty 17

0

337

Briggs & Stratton 496018S

Plug-Spark

Note: (RC14YC - Resistor - Hot)

$4.49

$

In Stock, Qty 13

0

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 1 left!

0

466

Briggs & Stratton 806466

Seal-O Ring

Note: (Breather Assembly) (Breather Assembly)

$10.99

$

In Stock, Qty 11

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 17

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

830

Briggs & Stratton 809157

Stud-Rocker Arm

$6.99

$

In Stock, Qty 14

0

868

Briggs & Stratton 691963

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

871

Briggs & Stratton 692057

Bushing-Valve Guide
(Superseded to 84002672)

$12.99

$

In Stock, only 2 left!

0

914

Briggs & Stratton 807120

Screw

Note: (Rocker Cover)

$3.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 791880

Hose-Vacuum

Note: (Cut To Required Length)

$11.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 806039S

Gasket-Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1023C

Briggs & Stratton 690910

Cover-Rocker

Note: (Cylinder #1) (Fuel Pump)

$45.99

$

Usually ships in 2-12 days

0

1023H

Briggs & Stratton 843750

Cover-Rocker

$81.99

$

In Stock, only 1 left!

0

1026

Briggs & Stratton 691836

Rod-Push

Note: (Steel)

$12.99

$

In Stock, Qty 20+

0

1026

Briggs & Stratton 691758

Rod-Push

Note: (Exhaust)(Aluminum)

$11.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 807323

ARM, Rocker

$12.99

$

In Stock, only 2 left!

0

1100

Briggs & Stratton 791959

PIVOT, Rocker Arm

$6.99

$

In Stock, only 2 left!

0

1254

Briggs & Stratton 807084

SCREW

Note: (Rocker Arm Stud)

$3.49

$

In Stock, only 3 left!

0
