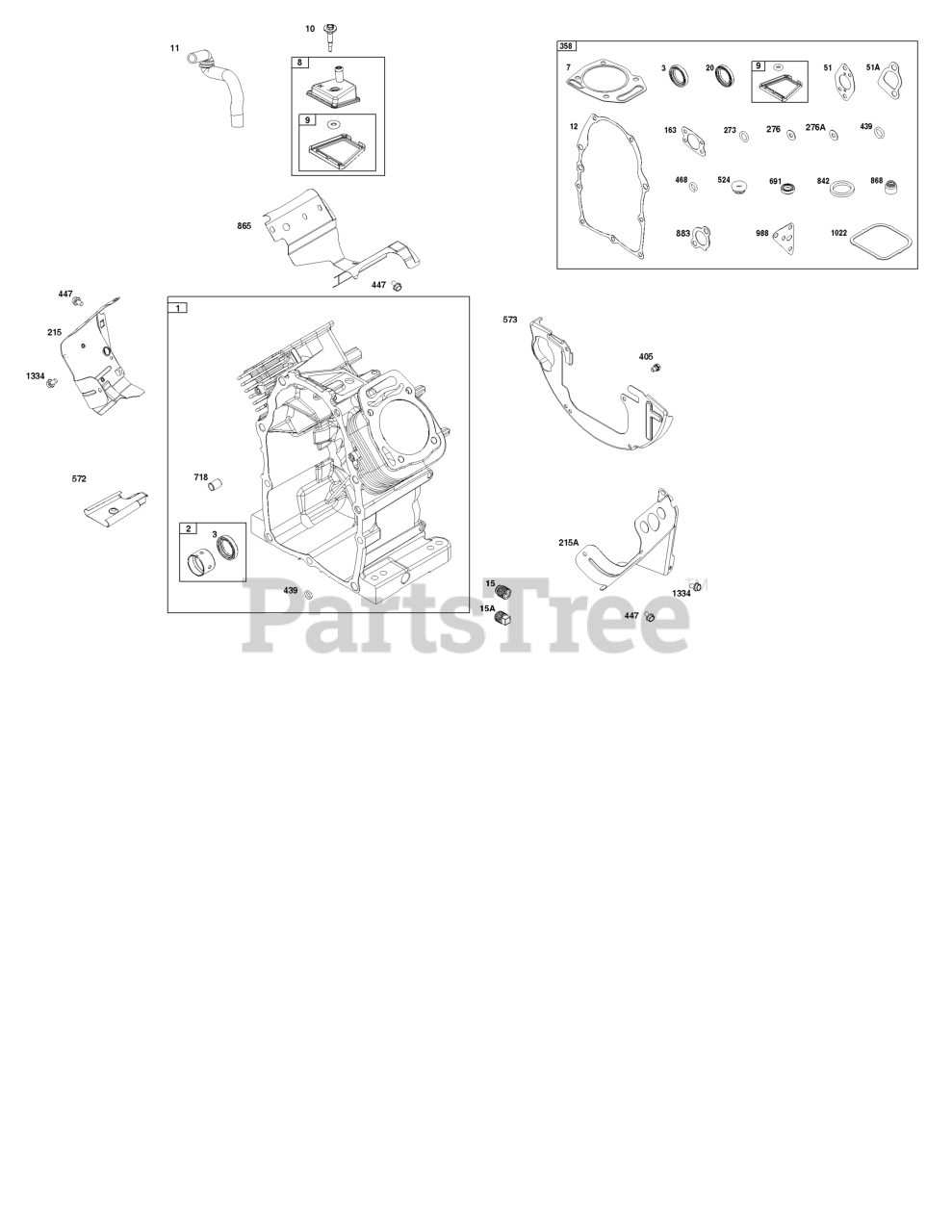

356447-0324-B5 - Briggs & Stratton Horizontal Engine Cylinder Group Parts Diagram

Horizontal Engine

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 845746

CYLINDER ASSEMBLY

$546.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 808534

KIT, Bushing/Seal

Note: (Magneto Side)

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 805101S

SEAL, Oil

Note: (Magneto Side)

$13.99

$

In Stock, Qty 20+

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

8

Briggs & Stratton 808984

BREATHER ASSEMBLY

$53.99

$

In Stock, Qty 16

0

9

Briggs & Stratton 844986

GASKET, Breather

$8.49

$

In Stock, only 2 left!

0

10

Briggs & Stratton 690751

SCREW

Note: (Breather Assembly)

$7.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 844921

TUBE, Breather

$15.99

$

Usually ships in 2-12 days

0

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover and Lubrication Group.)

$

$

Not available

15

Briggs & Stratton 691680

PLUG, Oil Drain

Note: (3/8"-18 NPTF - Internal 3/8" Sq)

$5.99

$

In Stock, only 1 left!

0

15A

Briggs & Stratton 690946

PLUG, Oil Drain

Note: (3/8"-18 NPTF-External 7/16" Sq)

$5.99

$

In Stock, Qty 14

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover and Lubrication Group.)

$

$

Not available

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

215

Briggs & Stratton 841183

COVER, Cylinder Head

$40.99

$

Usually ships in 2-12 days

0

215A

Briggs & Stratton 841182

COVER, Cylinder Head

$35.99

$

Usually ships in 2-12 days

0

273

SEAL, O-Ring

Note: (Part information located in Crankcase Cover and Lubrication Group.)

$

$

Not available

276

Briggs & Stratton JUMPTO276

WASHER, Sealing

Note: (Part information located in Crankcase Cover and Lubrication Group.)

$

$

Currently unavailable

276A

Briggs & Stratton JUMPTO276A

WASHER, Sealing

Note: (Part information located in Cylinder Head Group.)

$

$

Currently unavailable

358

Briggs & Stratton 841188

GASKET SET, Engine

Note: (Service Kits may include extra parts not specific to this engine.)

$122.99

$

Usually ships in 2-12 days

0

405

Briggs & Stratton 807163

SCREW

Note: (Back Plate)

$3.99

$

In Stock, only 1 left!

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Part information located in Crankcase Cover and Lubrication Group.)

$5.99

$

In Stock, Qty 20+

0

447

Briggs & Stratton 841233

SCREW

Note: (Air Guide Cover)

$3.49

$

In Stock, Qty 20+

0

468

SEAL, O-Ring

Note: (Part information located in Crankcase Cover and Lubrication Group.)

$

$

Not available

524

SEAL, O-Ring

Note: (Part information located in Crankcase Cover and Lubrication Group.)

$

$

Not available

572

Briggs & Stratton 690686

BAFFLE, Breather

$14.99

$

In Stock, only 1 left!

0

573

Briggs & Stratton 841127

PLATE, Back

$30.99

$

Usually ships in 2-12 days

0

691

SEAL, Governor Shaft

Note: (Part information located in Crankcase Cover and Lubrication Group.)

$

$

Not available

718

Briggs & Stratton 806469

PIN, Locating

$5.99

$

In Stock, only 2 left!

0

842

SEAL, O-Ring

Note: (Part information located in Crankcase Cover and Lubrication Group.)

$

$

Not available

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

865

Briggs & Stratton 843768

COVER, Air Guide

$39.99

$

Usually ships in 2-12 days

0

883

GASKET, Exhaust

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

988

Briggs & Stratton JUMPTO988

GASKET, Oil Adapter

Note: (Part information located in Crankcase Cover and Lubrication Group.)

$

$

Currently unavailable

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1334

Briggs & Stratton 841233

SCREW

Note: (Air Guide)

$3.49

$

In Stock, Qty 20+

0
