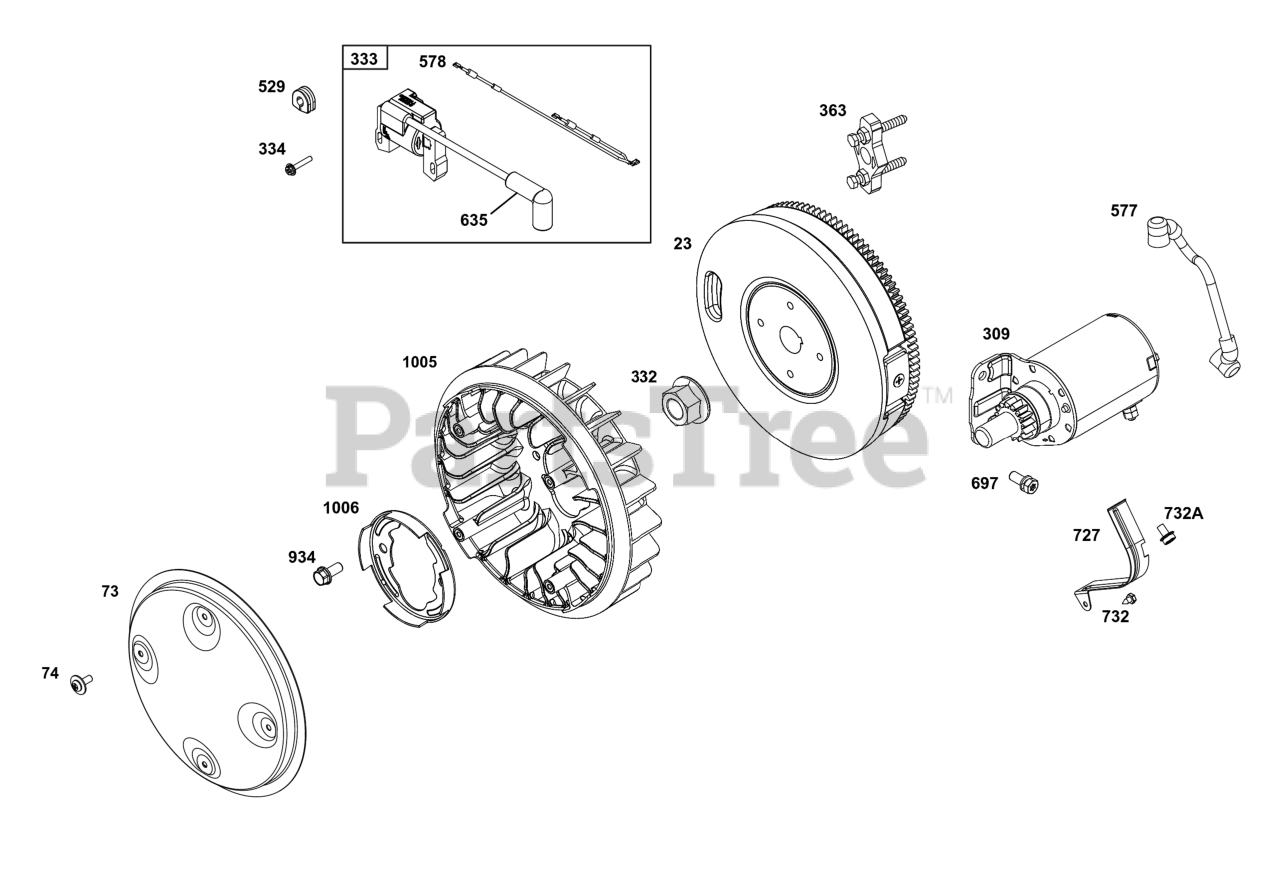

356447-0159-B5 - Briggs & Stratton Horizontal Engine Flywheel, Ignition, and Starter Group Parts Diagram

Horizontal Engine

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 809236

FLYWHEEL
(Superseded to 841050)

Note: (16 Amp)

$274.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 841440

SCREEN, Rotating

$37.99

$

In Stock, only 2 left!

0

74

Briggs & Stratton 841441

SCREW
(Superseded to 84007750)

Note: (Rotating Screen)

$3.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 844717

MOTOR, Starter

$90.99

$

In Stock, Qty 9

0

332

Briggs & Stratton 690887

NUT

Note: (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 845606

ARMATURE, Magneto
(Superseded to 84003819)

$71.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 692066

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 7

0

363

Briggs & Stratton 19203

PULLER, Flywheel

Note: (71.5mm (2.81in.))

$23.99

$

In Stock, only 1 left!

0

529

Briggs & Stratton 690744

GROMMET

$7.49

$

Usually ships in 2-12 days

0

577

Briggs & Stratton 690795

CABLE, Starter

$18.99

$

In Stock, only 2 left!

0

697

Briggs & Stratton 691902

SCREW

Note: (Starter Motor) (Drive Cap) (M8x20mm)

$3.49

$

In Stock, only 4 left!

0

727

Briggs & Stratton 841313

COVER, Starter Drive

$16.99

$

Usually ships in 2-12 days

0

732

Briggs & Stratton 690688

SCREW

Note: (Starter Drive Cover)

$3.49

$

Usually ships in 2-12 days

0

732A

Briggs & Stratton 841233

SCREW

Note: (Starter Drive Cover)

$3.49

$

In Stock, Qty 20+

0

934

Briggs & Stratton 692062

SCREW

Note: (Fan Retainer) (M8x18mm)

$3.49

$

In Stock, Qty 20+

0

1005

Briggs & Stratton 841439

FAN, Flywheel

$34.99

$

In Stock, only 2 left!

0

1006

Briggs & Stratton 690452

RETAINER, Fan

$10.99

$

Usually ships in 2-12 days

0
