356447-0052-H5 - Briggs & Stratton Horizontal Engine Flywheel, Ignition, and Starter Group Parts Diagram

Horizontal Engine

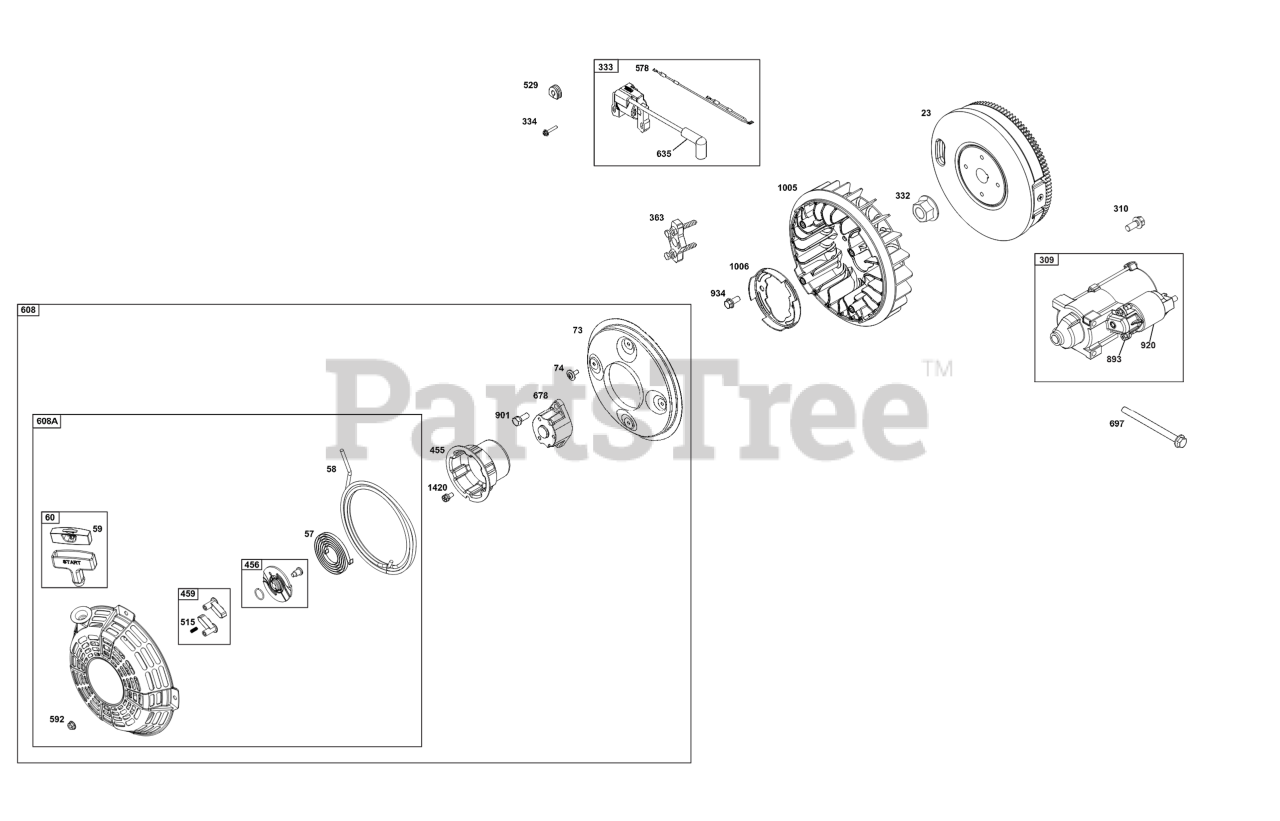

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 809236

FLYWHEEL
(Superseded to 841050)

$274.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 692086

SPRING, Rewind Starter

$15.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 66574

ROPE, Starter

$7.49

$

In Stock, Qty 9

0

59

Briggs & Stratton 805957

INSERT, Grip

$8.49

$

In Stock, only 4 left!

0

60

Briggs & Stratton 808167

GRIP, Starter Rope

$

$

Not available

73

Briggs & Stratton 841662

SCREEN, Rotating

$38.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 841441

SCREW
(Superseded to 84007750)

$3.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 847693

MOTOR-STARTER

$249.99

$

In Stock, only 2 left!

0

310

Briggs & Stratton 806474

SCREW

Note: (Starter Motor)

$5.49

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 690887

NUT

Note: (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 84003819

ARMATURE-MAGNETO

$71.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 692066

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 7

0

363

Briggs & Stratton 19203

PULLER, Flywheel

Note: (71.5mm (2.81in.))

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 841794

CUP, Flywheel

$33.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 845219

PLATE, Pawl Friction

$15.99

$

Usually ships in 2-12 days

0

459

Briggs & Stratton 845218

PAWL, Ratchet

$19.99

$

Usually ships in 2-12 days

0

515

Briggs & Stratton 691528

SPRING, Pawl

$6.99

$

In Stock, only 1 left!

0

529

Briggs & Stratton 690744

GROMMET

$7.49

$

Usually ships in 2-12 days

0

578

WIRE ASSEMBLY

Note: (Part information located in Controls Group.)

$

$

Not available

592

Briggs & Stratton 690939

NUT

Note: (Rewind Starter)

$3.49

$

In Stock, only 2 left!

0

608

Briggs & Stratton 844822

STARTER, Rewind

$169.99

$

Usually ships in 2-12 days

0

608A

Briggs & Stratton 841729

STARTER, Rewind

$142.99

$

In Stock, only 1 left!

0

635

BOOT, Spark Plug

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

678

Briggs & Stratton 841730

SPACER

Note: (Rewind)

$35.99

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 806474

SCREW

Note: (M8x100mm)

$5.49

$

Usually ships in 2-12 days

0

893

Briggs & Stratton 845758

NUT

Note: (M6)

$2.99

$

In Stock, only 2 left!

0

901

Briggs & Stratton 846234

SCREW

Note: (Rewind Spacer)

$4.49

$

Usually ships in 2-12 days

0

920

Briggs & Stratton 846820

SOLENOID, Starter

$30.99

$

In Stock, only 3 left!

0

934

Briggs & Stratton 692062

SCREW

Note: (Fan Retainer) (M8x18mm)

$3.49

$

In Stock, Qty 14

0

1005

Briggs & Stratton 841439

FAN, Flywheel

$34.99

$

In Stock, only 1 left!

0

1006

Briggs & Stratton 690452

RETAINER, Fan

$10.99

$

Usually ships in 2-12 days

0

1420

Briggs & Stratton 841735

SCREW

$3.99

$

Usually ships in 2-12 days

0
