356 BT - Husqvarna Backpack Blower CARBURETOR DETAILS Parts Diagram

Backpack Blower

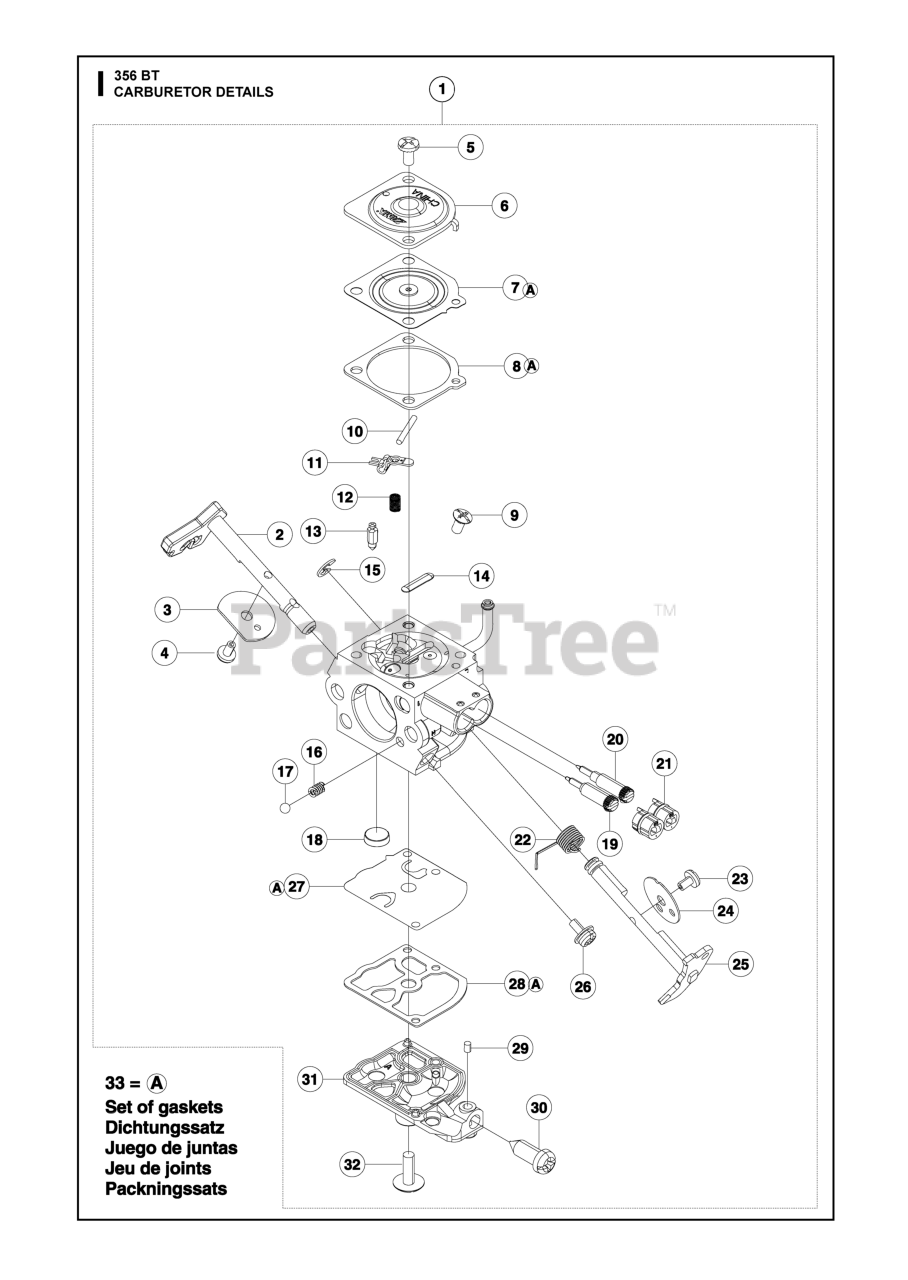

CARBURETOR DETAILS Parts Diagram

  • Title

27

Husqvarna 537020001

PUMP DIAPHRAGM

$9.49

$

In Stock, Qty 5

0

12

Husqvarna 537020301

SPRING
(Superseded to 537273401)

$

$

Not available

15

Husqvarna 537385201

CLIP

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 537020101

GASKET

$4.99

$

In Stock, Qty 13

0

25

Husqvarna 537390001

SHAFT

$

$

Not available

26

Husqvarna 503755301

SCREW *

$3.49

$

In Stock, only 1 left!

0

6

Husqvarna 503974301

COVER

$6.99

$

In Stock, only 1 left!

0

18

Husqvarna 503535701

STRAINER

$4.99

$

In Stock, only 2 left!

0

24

Husqvarna 537390101

THROTTLE FLAP

$

$

Not available

23

Husqvarna 503479201

SCREW

$3.99

$

In Stock, only 2 left!

0

14

Husqvarna 503535601

PLUG

$7.49

$

In Stock, Qty 6

0

5

Husqvarna 503480501

SCREW

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 537019701

SPRING THROTTLE

$3.49

$

In Stock, only 1 left!

0

2

Husqvarna 537390201

SHAFT

$22.99

$

In Stock, only 1 left!

0

7

Husqvarna 504113501

NEEDS DESCRIPTION

$

$

Currently unavailable

33

Husqvarna 537243601

GASKET SET

$17.99

$

Usually ships in 3-10 days

0

20

Husqvarna 537416901

IDLE SCREW

Note: L

$15.99

$

Usually ships in 3-10 days

0

3

Husqvarna 537370301

CHOKE CAP

$7.99

$

In Stock, only 3 left!

0

31

Husqvarna 537020201

COVER

$26.99

$

Usually ships in 3-10 days

0

21

Husqvarna 537417001

LIMITER CAP KIT

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 503480101

SCREW

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503665901

LEVER

$4.99

$

In Stock, only 2 left!

0

16

Husqvarna 537012601

SPRING

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 503481101

PLUG

$10.99

$

Usually ships in 3-10 days

0

19

Husqvarna 537387501

SCREW

Note: H

$13.41

$

Usually ships in 3-10 days

0

30

Husqvarna 537020701

SCREW

$14.99

$

In Stock, only 1 left!

0

1

Husqvarna 579462701

CARBURETOR C1Q-EL52

$96.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503481801

SCREW

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503479701

INLET NEEDLE

$10.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503480301

GASKET METERING SIDE

$5.99

$

In Stock, only 2 left!

0

32

Husqvarna 503479601

SCREW

$3.99

$

In Stock, Qty 5

0

17

Husqvarna 537012501

BALL

$3.99

$

In Stock, Qty 6

0

10

Husqvarna 503480001

PIN RETAINING SCREW
(Superseded to 537020801)

$3.49

$

In Stock, only 1 left!

0
