355Z (B 2654 DLR) (5900768) - Snapper 54" Zero-Turn Mower, 26hp Wheel & Tire Group Parts Diagram

54" Zero-Turn Mower, 26hp

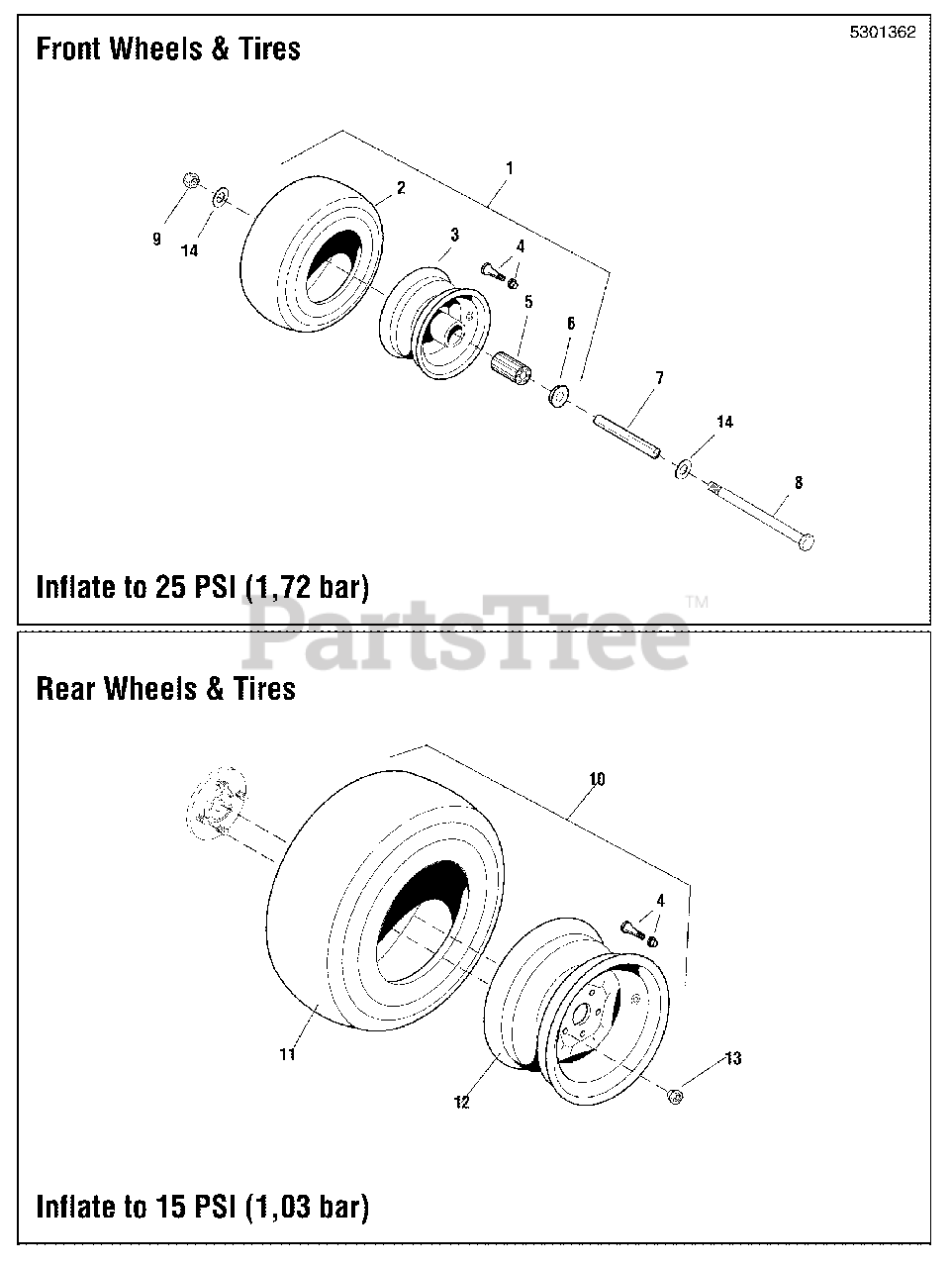

Wheel & Tire Group Parts Diagram

  • Title

1

Snapper 5101418

WHEEL, CASTER, 11 X 4.0-5 SILVER BEAD LO
(Superseded to 5101418YP)

Note: (INCLUDES REF NO. 2 - 6)

$127.99

$

In Stock, Qty 11

0

2

Snapper 5022433X1

TIRE, Front, 11 X 4.0 - 5 (SV)

$70.99

$

Usually ships in 2-12 days

0

3

Snapper 5101418X2

WHEEL ASSEMBLY, 11 X 4.0 - 5 TIRE CMP (SV)

Note: (INCLUDES REF NO. 4 & 5)

$

$

Currently unavailable

4

Snapper 2172353

VALVE STEM & CAP ASSEMBLY (SV)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 5101418X1

BEARING, CASTER WHEEL, 11 X 4.0 - 5 BEAD LOCK (SV)
(Superseded to 5101418X1YP)

Note: (2 PER TIRE)

$28.99

$

In Stock, Qty 14

0

6

Snapper 5021043

BEARING, Retainer

Note: (2 PER TIRE)

$6.99

$

Usually ships in 2-12 days

0

7

Snapper 5045996

CASTER AXLE DDSH
(Superseded to 5045996SM)

$15.99

$

In Stock, Qty 18

0

8

Snapper 5025017X52

BOLT, 1/2-13 X 6-1/2 GD8 YZ
(Superseded to 5025017X52SM)

$10.99

$

In Stock, only 2 left!

0

9

Snapper 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

10

Snapper 5023095

WHEEL+TIRE ASMY REAR 20/8.00-10
(Superseded to 5102329YP)

Note: (INCLUDES REF NO. 4, 11 & 12)

$349.99

$

Usually ships in 2-12 days

0

11

Snapper 5023095X1

TIRE, Rear 20 X 8.0 X 10 (SV)
(Superseded to 5102329)

$349.99

$

Usually ships in 2-12 days

0

12

Snapper 5023095X2

WHEEL ASSEMBLY, For 20 X 8.0 X 10 Tire (SV)
(Superseded to 5102329X2YP)

$259.99

$

Usually ships in 2-12 days

0

13

Snapper 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0

14

Snapper 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0
