355Z (B 2654 DLR) (5900768) - Snapper 54" Zero-Turn Mower, 26hp 54" Mower Deck - Rollers & Casters Parts Diagram

54" Zero-Turn Mower, 26hp

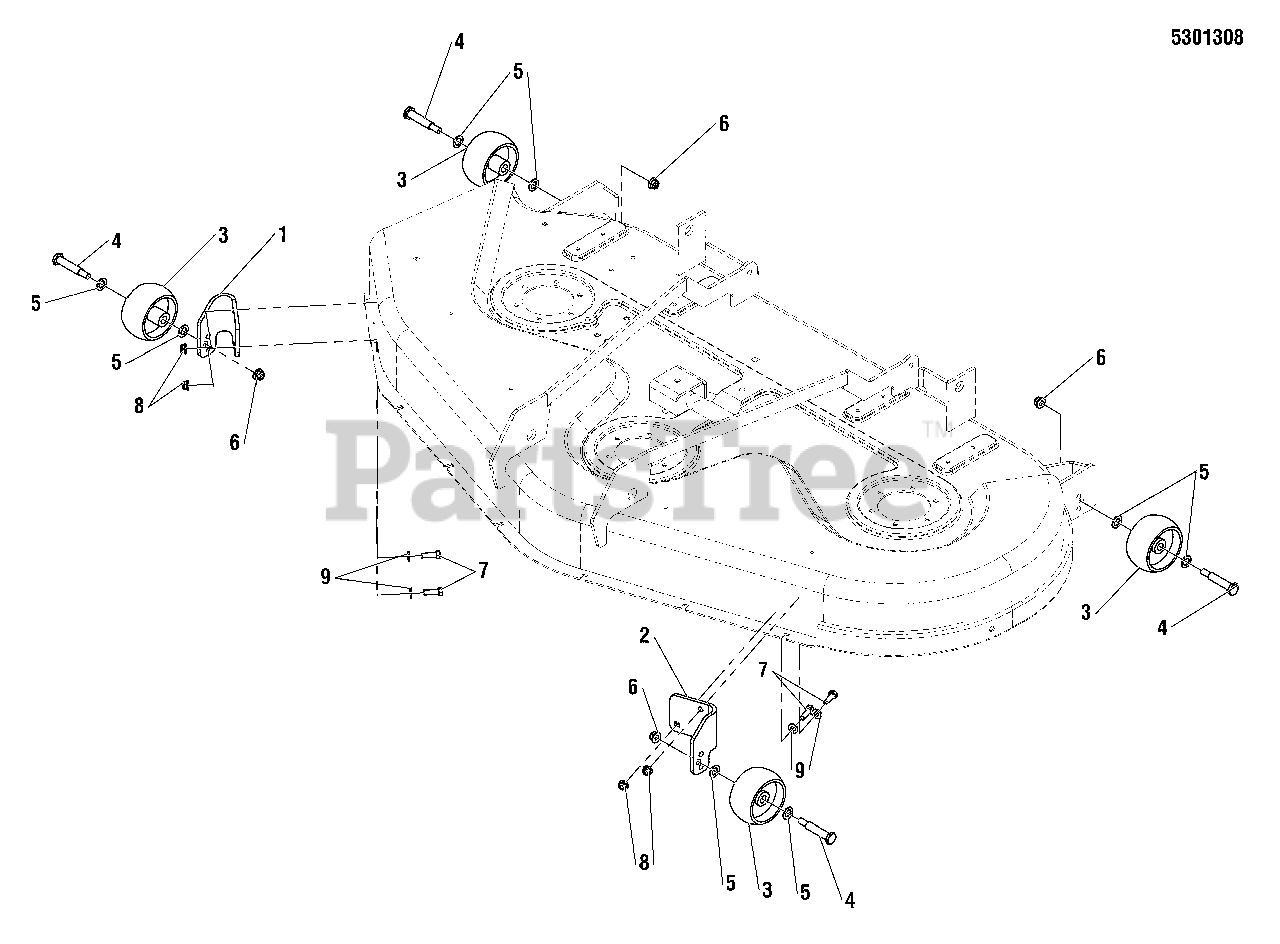

54" Mower Deck - Rollers & Casters Parts Diagram

  • Title
1

Snapper 5403772D

BRACKET, GAUGE WHEEL, RH - RED
(Superseded to 5403772DYP)

$19.99

$

Usually ships in 2-12 days

0

2

Snapper 5403773D

BRACKET, GAUGE WHEEL, LH - RED
(Superseded to 5403773DYP)

$19.99

$

Usually ships in 2-12 days

0

3

Snapper 1714760

WHEEL- 2.00 WIDE 3.92 DIA 0.531ID POLY
(Superseded to 1714760SM)

$6.49

$

In Stock, Qty 20+

0

4

Snapper 2108765

BOLT - WHEEL 3/8-16X2.781 .750 THRD YELLOW
(Superseded to 2108765SM)

$6.49

$

In Stock, Qty 20+

0

5

Snapper 80003590

WASHER, 0500(0.51IDX0.87ODX.06THK) BLK
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

6

Snapper 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

8

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable
