355Z (B 2654 DLR) (5900768) - Snapper 54" Zero-Turn Mower, 26hp 54" Mower Deck - Pulleys, Belt & Idler Arm Parts Diagram

54" Zero-Turn Mower, 26hp

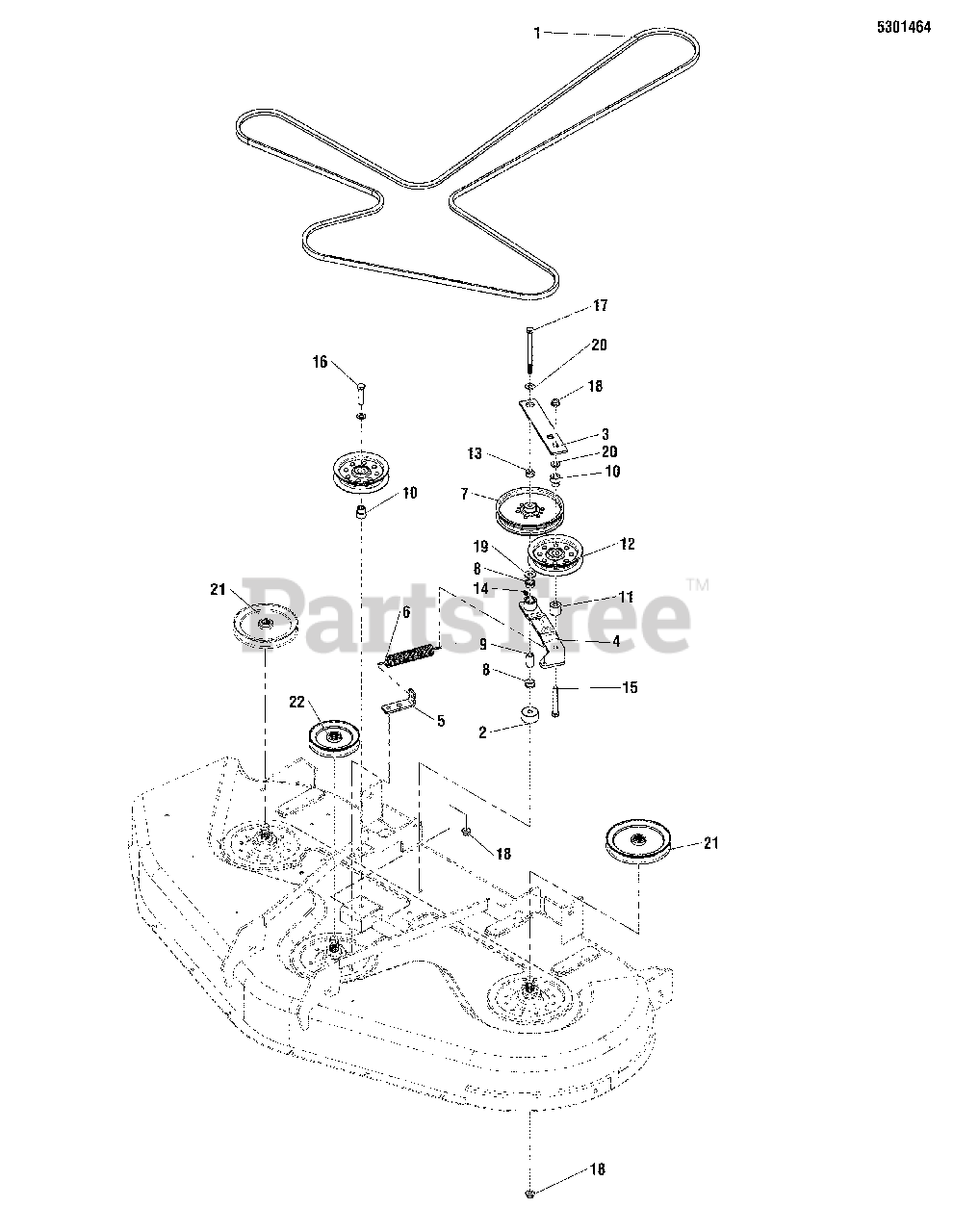

54" Mower Deck - Pulleys, Belt & Idler Arm Parts Diagram

  • Title

1

Snapper 1687399

BELT KIT, A SECTION, 163.00 EL (5101405)
(Superseded to 5101405YP)

$112.99

$

In Stock, only 4 left!

0

2

Snapper 5101412

SPACER, .39 X 1.50 X .75 - YZ
(Superseded to 5101412YP)

$16.99

$

Usually ships in 2-12 days

0

3

Snapper 5403889D

MOUNT, IDLER TENSION - 54 - RED
(Superseded to 5403889DYP)

$17.99

$

Usually ships in 2-12 days

0

4

Snapper 5403895D

WELD, DECK IDLER ARM, CON/SNP Z - RED
(Superseded to 5403895DYP)

$62.99

$

Usually ships in 2-12 days

0

5

Snapper 5403898D

BRACKET, SPRING ANCHOR - SNP/CON Z - RED
(Superseded to 5403898DYP)

$15.99

$

Usually ships in 2-12 days

0

6

Snapper 1715435

SPRING, EXTENSION, 1.00
(Superseded to 1715435SM)

$9.49

$

In Stock, Qty 20+

0

7

Snapper 5101193

PULLEY, FLAT IDLER, 5" W/KOYO
(Superseded to 5101193YP)

$65.99

$

In Stock, only 2 left!

0

8

Snapper 1676148

BUSHING, 0.628IDX0.751ODX0.400LG PWDR MTL
(Superseded to 1676148SM)

$5.99

$

In Stock, Qty 20+

0

9

Snapper 1674669

SPACER, 0.39 IDX0.625ODX1.15 LG CASE HARD
(Superseded to 1674669SM)

$11.99

$

In Stock, Qty 20+

0

10

Snapper 5049184

SPACER, HYDRO PULLEY
(Superseded to 5049184SM)

$5.49

$

In Stock, Qty 6

0

11

Snapper 5047125

SPACER, .39 X 1.00 X .88
(Superseded to 5047125SM)

$7.99

$

In Stock, only 3 left!

0

12

Snapper 5021002

PULLEY, IDLER
(Superseded to 5021002SM)

$40.99

$

In Stock, only 3 left!

0

13

Snapper 5044933

SPACER, .39 X .75 X .38
(Superseded to 5044933SM)

$4.99

$

In Stock, only 3 left!

0

14

Snapper 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

15

Snapper 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, Qty 5

0

16

Snapper 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

17

Snapper 5025013X36

BOLT, 3/8-16 X 4-1/2" GD5 CZ
(Superseded to 5025013X36YP)

$5.99

$

In Stock, only 4 left!

0

18

Snapper 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

In Stock, only 1 left!

0

20

Snapper 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 5101410

WELD, PULLEY, DECK DRIVE -4.477OB -PLAIN
(Superseded to 5101410YP)

$82.99

$

Usually ships in 2-12 days

0

22

Snapper 5101411

WELD, PULLEY, DECK DRIVE -5.70 OB -PLAIN
(Superseded to 5101411YP)

$71.99

$

Usually ships in 2-12 days

0
