355Z (B 2654) (5900748) - Snapper 54" Zero-Turn Mower, 26hp Instrument & Control Panel Group Parts Diagram

54" Zero-Turn Mower, 26hp

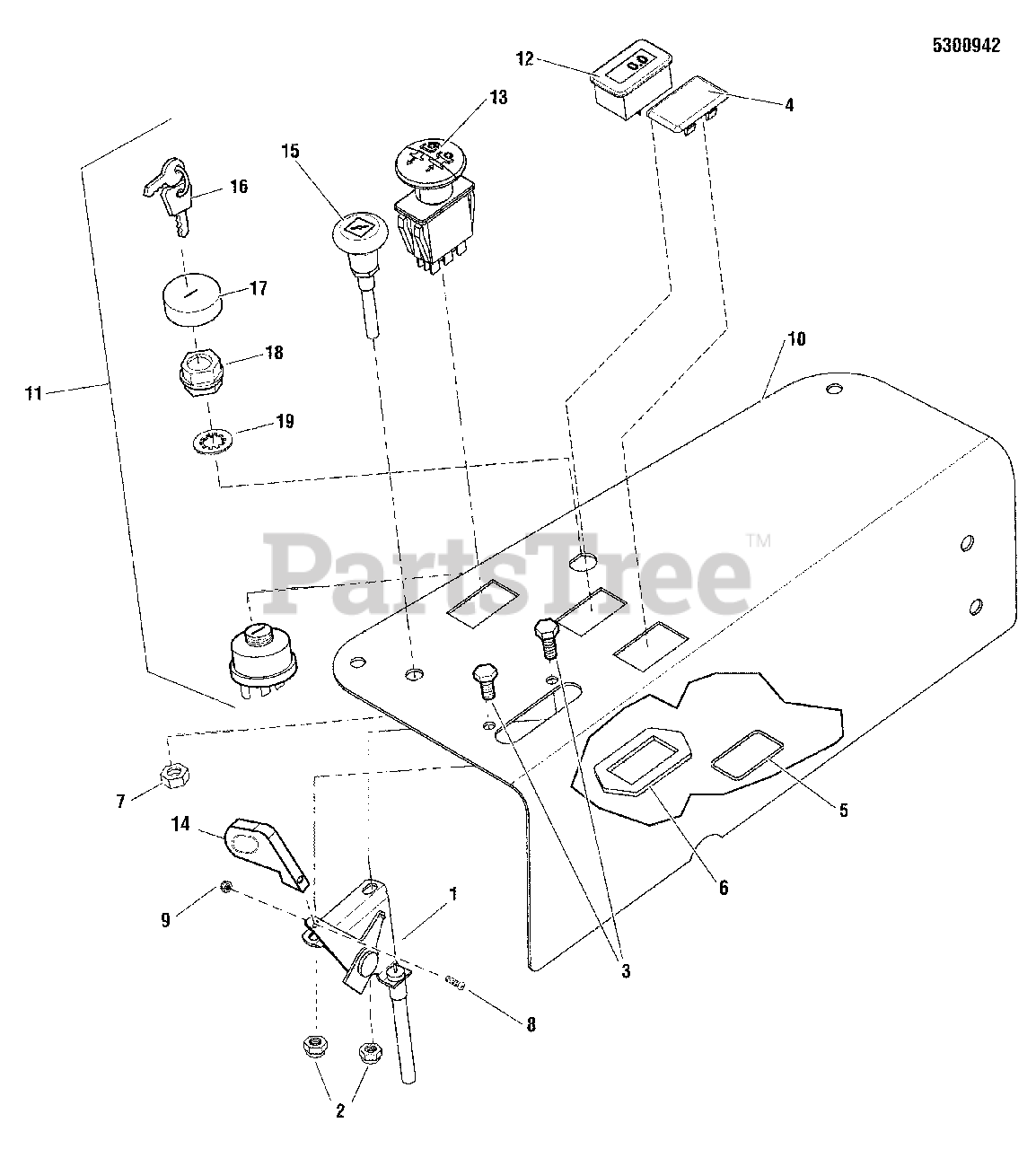

Instrument & Control Panel Group Parts Diagram

  • Title

1

Snapper 5100182

CABLE, THROTTLE CONTROL, 37"
(Superseded to 5100182SM)

$76.99

$

Usually ships in 2-12 days

0

2

Snapper 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

3

Snapper 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

4

Snapper 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, only 1 left!

0

5

Snapper 5022269

O-RING, 7/8 ID X 1/16 W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 2 left!

0

7

Snapper 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 5025270

SCREW, #10-24 X 1" RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 5402842A

PLATE, CONTROL PANEL - BLACK
(Superseded to 5402842ASM)

$47.99

$

Usually ships in 2-12 days

0

11

Snapper 1737853

SWITCH ASMY-IGNITION INDAK NO KEYS/HDWR
(Superseded to 1737853YP)

Note: (Was 5020927)

$35.99

$

In Stock, Qty 20+

0

12

Snapper 5100996

HOUR METER, W/ SUPRESSOR
(Superseded to 5102417)

$65.99

$

In Stock, only 1 left!

0

13

Snapper 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

14

Snapper 1725337

KNOB-SLOTTED THROTTLE
(Superseded to 1725337SM)

$12.99

$

In Stock, only 1 left!

0

15

Snapper 5047779

CABLE, CHOKE CONTROL, 51 (Z)
(Superseded to 5047779SM)

$52.99

$

In Stock, only 4 left!

0

16

Snapper 1737836

KEYS, BLISTER PK KIDS+MWRS DON'T MIX, DOM
(Superseded to 1737836YP)

$20.99

$

In Stock, only 1 left!

0

16

Snapper 1737837

KEYS, BLISTER PK KIDS+MWRS DON'T MIX, EXP
(Superseded to 1737837YP)

$21.99

$

In Stock, only 1 left!

0

17

Snapper 1717550

COVER, SWITCH
(Superseded to 1717550SM)

$8.49

$

In Stock, Qty 15

0

18

Snapper 1717549

NUT, HEX FLANGE, 5/8-32 IGN SW DIE CAST
(Superseded to 1717549SM)

$10.99

$

Usually ships in 2-12 days

0

19

Snapper 1960547

LOCKWASHER, INTERNAL TOOTH, .625 THIN BLK
(Superseded to 1960547SM)

$4.49

$

In Stock, only 3 left!

0
