355Z (B 2654) (5900748) - Snapper 54" Zero-Turn Mower, 26hp 54" Mower Deck - Housing, Cover & Spindles Group Parts Diagram

54" Zero-Turn Mower, 26hp

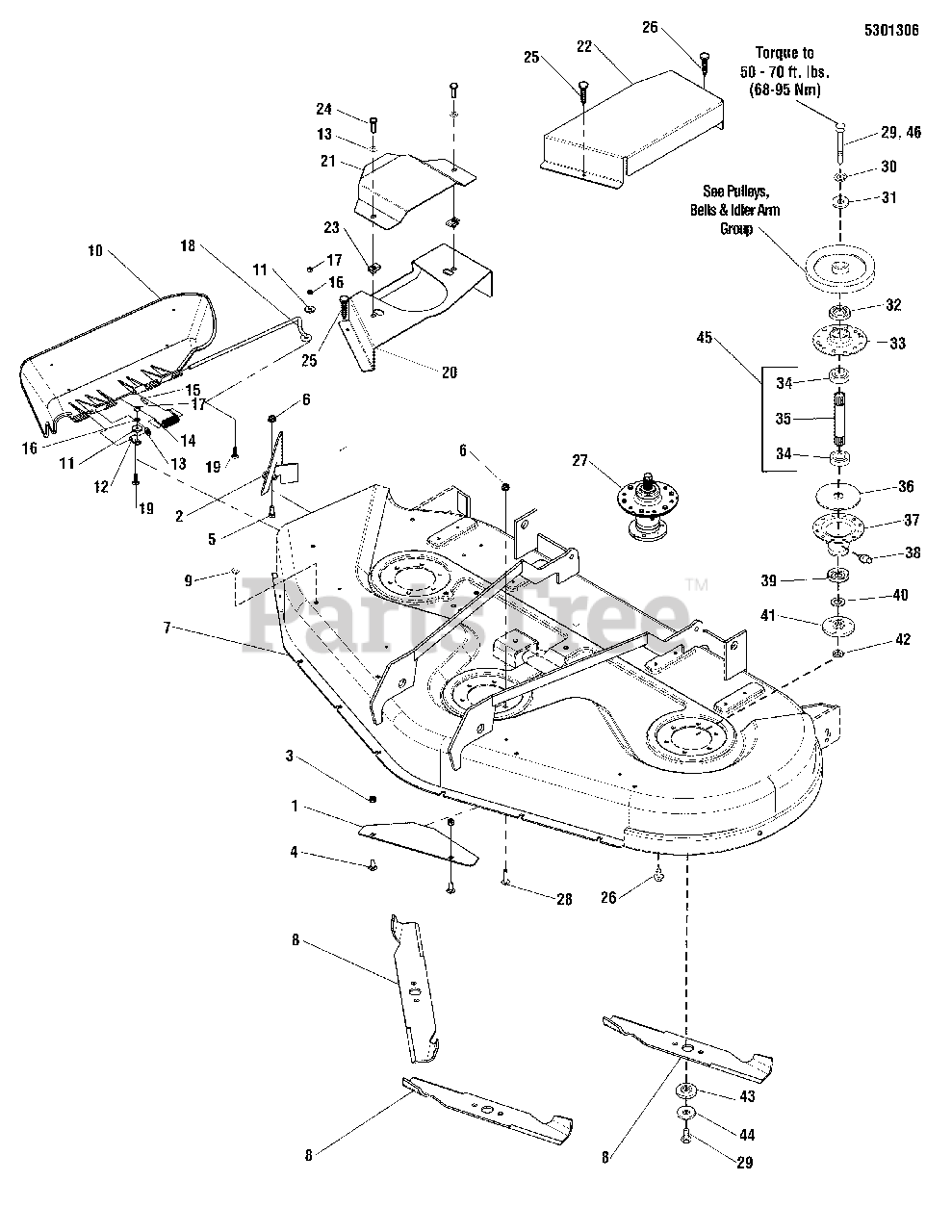

54" Mower Deck - Housing, Cover & Spindles Group Parts Diagram

  • Title

1

Snapper 1720962A

BAFFLE, FRONT BLO-BLACK
(Superseded to 1720962ASM)

$14.99

$

In Stock, Qty 6

0

2

Snapper 1724976A

BAFFLE, DISCHARGE 10GA 54" MWR-BLACK
(Superseded to 1724976ASM)

$69.99

$

In Stock, only 1 left!

0

3

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 1931333

BOLT, RD HD SH SQ NK 5/16-18X0.750 G5 BLK
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

5

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

6

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 5600219

DECK SHELL W/DECALS, 52", SNP2654
(Superseded to 5600219YP)

$1731.99

$

Usually ships in 2-12 days

0

8

Snapper 1687398

KIT, 54" MOWER BLADES (1736043 - 2; 1736044 - 1)
(Superseded to 1687398YP)

$

$

Not available

9

Snapper 1705115

PLUG, BUTTON FOR 0.344SQ HOLE BLACK POLY
(Superseded to 1705115SM)

$4.49

$

In Stock, only 1 left!

0

10

Snapper 1705449

DEFLECTOR, BLACK
(Superseded to 1705449SM)

$122.99

$

In Stock, only 2 left!

0

11

Snapper 1960353

WASHER, 0.250(0.26IDX0.84ODX.12THK) BLK
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

12

Snapper 1704873

CLAMP, WIRE, .312DIA . (1) .281 HOLE BLK
(Superseded to 1704873SM)

$4.49

$

In Stock, Qty 20+

0

13

Snapper 1919326

WASHER, 0.312 (0.34IDX0.75ODX.06THK) BLK
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

14

Snapper 7101082

SPRING, TORSION CHUTE 44/50" BLK
(Superseded to 7101082SM)

$8.49

$

In Stock, Qty 20+

0

15

Snapper 1723323

CAP, VINYL
(Superseded to 1723323SM)

$4.99

$

In Stock, only 1 left!

0

16

Snapper 1916964

LOCKWASHER, SPRING .250 BLK
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

17

Snapper 5025030

NUT, 1/4-20 HEX
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

18

Snapper 5049245

ROD, DEFLECTOR
(Superseded to 1706709SM)

$8.49

$

In Stock, Qty 20+

0

19

Snapper 1931318

BOLT, RD HD SH SQ NK 1/4-20X0.875 G5 BLK
(Superseded to 1931318SM)

$4.49

$

In Stock, only 2 left!

0

20

Snapper 5403904D

PLATE, GUARD, MOWER DECK, 54", RH - RED
(Superseded to 5403904DYP)

$56.99

$

In Stock, only 1 left!

0

21

Snapper 5403905D

PLATE, GUARD, BLOWER PULLEY - RED
(Superseded to 5403905DYP)

$39.99

$

Usually ships in 2-12 days

0

22

Snapper 5403894D

PLATE, GUARD, MOWER DECK, 54", LH - RED
(Superseded to 5403894DYP)

$84.99

$

Usually ships in 2-12 days

0

23

Snapper 5022308

BODY CLIP, 5/16-18 X 1/2 DEEP
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

24

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

25

Snapper 1929000

CAPSCREW, Hex Washer Head Taptite, 1/4-20X0.375 .56
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

26

Snapper 1664847

CAPSCREW, Hex Washer Head Taptite, 5/16-18X0.750BLK
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

27

Snapper 5101446

SPINDLE ASSM, - STAMP STEEL LG SHAFT
(Superseded to 5101446YP)

Note: (Includes Ref. No. 29 - 44)

$

$

Not available

28

Snapper 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

29

Snapper 2823471

CAPSCREW, HEX HEAD 7/16-14x1-1/4 G8 YELLO (SV)
(Superseded to 703579)

Note: (For Single Pulley)

$4.49

$

In Stock, Qty 20+

0

30

Snapper 1918199

LOCKWSHER, SPRING .438 BLK (SV)
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

31

Snapper 1933263

WASHER, 0.438(0.45IDX1.25ODX.25THK) BLK (SV)
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

32

Snapper 1657969

SHIELD, BEARING,MOWER ARBOR UPPER HT TR (SV)
(Superseded to 1657969SM)

$7.49

$

In Stock, Qty 20+

0

33

Snapper 1655729A

HOUSING, ARBOR TOP - BLACK (SV)
(Superseded to 1655729ASM)

$14.99

$

Usually ships in 2-12 days

0

34

Snapper 2108202

BEARING, BALL 0.750ID 1.780OD 0.610LG (SV)
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

35

Snapper 5101357

SHAFT, ARBOR 1.000DIA (SV)
(Superseded to 5101357YP)

$

$

Not available

36

Snapper 1707335

GASKET, FOAM POLY (SV)
(Superseded to 1707335SM)

$5.99

$

In Stock, Qty 20+

0

37

Snapper 1703273A

HOUSING & FITTING ASMY-LOWER BLACK (SV)
(Superseded to 1703273ASM)

$38.99

$

In Stock, Qty 20+

0

38

Snapper 1704314

FITTING, LUBE .250 DRIVE .25SH BL CHK YEL (SV)
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

39

Snapper 1700229

SHIELD, BEARING, MOWER ARBOR LOWER HT TR (SV)
(Superseded to 1700229SM)

$10.99

$

In Stock, Qty 20+

0

40

Snapper 1700230

WASHER, SHIM, .75 0.7535IDX1.388ODX0.30T (SV)
(Superseded to 1700230SM)

$4.99

$

In Stock, Qty 20+

0

41

Snapper 1655777

ADAPTER, BLADE 3.375OD INT SPLINE PWD MTL (SV)
(Superseded to 1655777SM)

$25.99

$

In Stock, Qty 20+

0

42

Snapper 1657528

RETAINING RING, EXT, #75 0.750 SELF LOCK (SV)
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

43

Snapper 1679711

WASHER, Spacer, SPLN.6134IDX2.00OD.390TH SINTERPS (SV)
(Superseded to 1679711SM)

$7.99

$

In Stock, Qty 20+

0

44

Snapper 1656927

WASHER, Splined, 2" OD, .187" Thick (SV)
(Superseded to 1656927SM)

$8.99

$

In Stock, Qty 17

0

45

Snapper 5101358

SHAFT & BEARING ASSM. (SV)

$

$

Not available

46

Snapper 5025015X18

BOLT, HEX, 7/16-14X2-1/4, GD 5, YZ
(Superseded to 2827120SM)

Note: (For Double Pulley)

$

$

Not available
