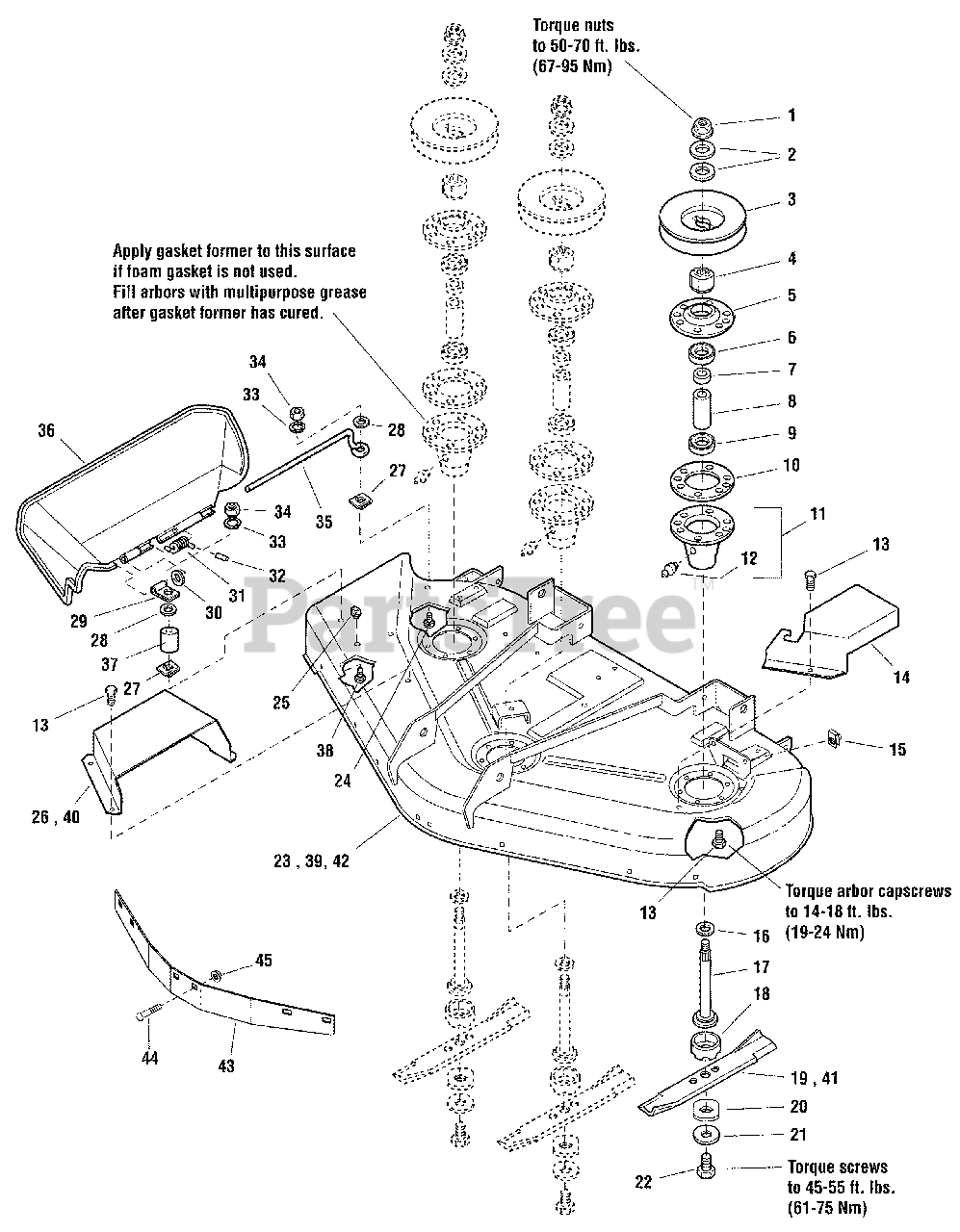

355Z (B 2450) (5900682) - Snapper 50" Zero-Turn Mower, 24hp 44" & 50" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

50" Zero-Turn Mower, 24hp

44" & 50" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

1

Snapper 1714419

NUT, HEX FLANGE, 9/16-18
(Superseded to 1714419SM)

$5.99

$

In Stock, Qty 20+

0

2

Snapper 1713675

WASHER, Bellville, 9/16
(Superseded to 1713675SM)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 1713161

PULLEY
(Superseded to 1713161SM)

$20.99

$

In Stock, Qty 20+

0

4

Snapper 1713613

HUB
(Superseded to 1713613SM)

$15.99

$

In Stock, Qty 20+

0

5

Snapper 1655729A

COVER, ARBOR HOUSING
(Superseded to 1655729ASM)

$14.99

$

Usually ships in 2-12 days

0

6

Snapper 2108202

BEARING, BALL, 3/4 X 1-3/4 X 5/8
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

7

Snapper 1715724

SPACER, 21/32 X 3/4 X 5/8
(Superseded to 1715724SM)

$9.49

$

In Stock, Qty 20+

0

8

Snapper 1732544

SPACER, 11/16 X 5/32 X 2-11/16
(Superseded to 1732544SM)

$5.49

$

In Stock, Qty 20+

0

9

Snapper 1705897

BEARING, BALL, 11/16 X 1-9/16 X 15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

10

Snapper 1707335

SEAL, FOAM
(Superseded to 1707335SM)

$5.99

$

In Stock, Qty 20+

0

11

Snapper 1713338A

ARBOR HOUSING ASSEMBLY
(Superseded to 1713338ASM)

Note: (INCLUDES REF. NO. 12)

$41.99

$

In Stock, Qty 20+

0

12

Snapper 1704314

FITTING, GREASE
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

13

Snapper 1664847

SCREW, HEX WSHR HD TAP TT 5/16-18 X 0.750 BLK
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

14

Snapper 5400403D

GUARD, BELT - LH
(Superseded to 5400403DSM)

$30.99

$

Usually ships in 2-12 days

0

15

Snapper 5022308

BODY CLIP, 5/16-18 X 1/2 DEEP
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

16

Snapper 1713619

WASHER, 9/16, BLACK
(Superseded to 1713619SM)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 1713609

SHAFT, ARBOR
(Superseded to 1713609SM)

$30.99

$

In Stock, Qty 20+

0

18

Snapper 1713196

SHIELD, GRASS, LOWER
(Superseded to 1713196SM)

$9.49

$

In Stock, Qty 20+

0

19

Snapper 1727774

BLADE, MOWER 16.12 .196 THK 44" BM, CONQ
(Superseded to 1716696ASM)

Note: (FOR 44" DECK ONLY)

$25.99

$

In Stock, Qty 20+

0

20

Snapper 1713089

WASHER, HEX, 11/16 X 2
(Superseded to 1713089SM)

$4.99

$

In Stock, Qty 20+

0

21

Snapper 1656916

WASHER, SPRING, 15/32, BLACK
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

22

Snapper 2823471

BOLT, 7/16-14 X 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 5600124

DECK SHELL W/ DECALS, 44 - SNP (2008)
(Superseded to 5600124YP)

Note: (FOR 44" DECK ONLY)

$1937.99

$

Usually ships in 2-12 days

0

24

Snapper 1931318

BOLT, RD HD SH SQ NK 1/4-20X0. 875 G5 BLK
(Superseded to 1931318SM)

$4.49

$

In Stock, only 2 left!

0

25

Snapper 1705115

PLUG, BUTTON FOR 0.344 SQ HOLE BLACK POLY
(Superseded to 1705115SM)

$4.49

$

In Stock, only 1 left!

0

26

Snapper 5401091D

GUARD, BELT - RH, 44", SNAPPER RED
(Superseded to 5401091DYP)

$51.99

$

Usually ships in 2-12 days

0

27

Snapper 1960518

NUT, PUSH FOR .250 DIA THREAD .500 OD BLK
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

28

Snapper 1960353

WASHER, 0.250 (0.26 ID X 0.84 OD X .12 THK) BLK
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

29

Snapper 1704873

CLAMP, WIRE, .312DIA . (1) .281 HOLE BLK
(Superseded to 1704873SM)

$4.49

$

In Stock, Qty 20+

0

30

Snapper 1919326

WASHER, 0.312 (0.34 ID X 0.75 OD X .06THK) BLK
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

31

Snapper 7101082

SPRING, TORSION CHUTE 44/50" BLK
(Superseded to 7101082SM)

$8.49

$

In Stock, Qty 20+

0

32

Snapper 1723323

CAP, VINYL
(Superseded to 1723323SM)

$4.99

$

In Stock, only 1 left!

0

33

Snapper 1916964

LOCKWASHER, SPRING .250 BLK
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

34

Snapper 1916622

NUT, HEX 1/4-20 BLK 588514
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

35

Snapper 5049245

ROD, DEFLECTOR
(Superseded to 1706709SM)

$8.49

$

In Stock, Qty 20+

0

36

Snapper 1705449

DEFLECTOR, BLACK
(Superseded to 1705449SM)

$122.99

$

In Stock, only 2 left!

0

37

Snapper 1710703

SPACER, 0.328 ID X 0.499 OD X 0.625 LG PM
(Superseded to 1710703SM)

$6.49

$

In Stock, Qty 20+

0

38

Snapper 5025144X14

BOLT, CARRIAGE, 1/4-20 X 1.25, GD5, BLACK
(Superseded to 5025144X14SM)

$3.99

$

Usually ships in 2-12 days

0

39

Snapper 5600125

DECK SHELL W/ DECALS, 50 - SNP (2008)
(Superseded to 5600125YP)

Note: (FOR 50" DECK ONLY)

$1876.99

$

Usually ships in 2-12 days

0

40

Snapper 5048446D

GUARD, BELT, RH
(Superseded to 5048446DYP)

Note: (FOR 50" DECK ONLY)

$44.99

$

Usually ships in 2-12 days

0

41

Snapper 1726357

BLADE, MOWER, 18-1/8
(Superseded to 1726357ASM)

Note: (FOR 50" DECK ONLY)

$27.99

$

In Stock, Qty 20+

0

42

Snapper 5600127

EXPORT DECK SHELL W/DECALS, 50 - SNP (2008)
(Superseded to 5600127YP)

Note: (FOR 50" DECK EXPORT MODELS ONLY)

$1558.99

$

Usually ships in 2-12 days

0

43

Snapper 1734181A

BAFFLE, FRONT 44/50 - BLACK
(Superseded to 1734181ASM)

$43.99

$

Usually ships in 2-12 days

0

44

Snapper 5025145X6

BOLT, 5/16-18 X 3/4 CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

45

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0
