355Z (B 2446) (5900775) - Snapper 46" Zero-Turn Mower, 24hp Main Frame & Front Suspension Group Parts Diagram

46" Zero-Turn Mower, 24hp

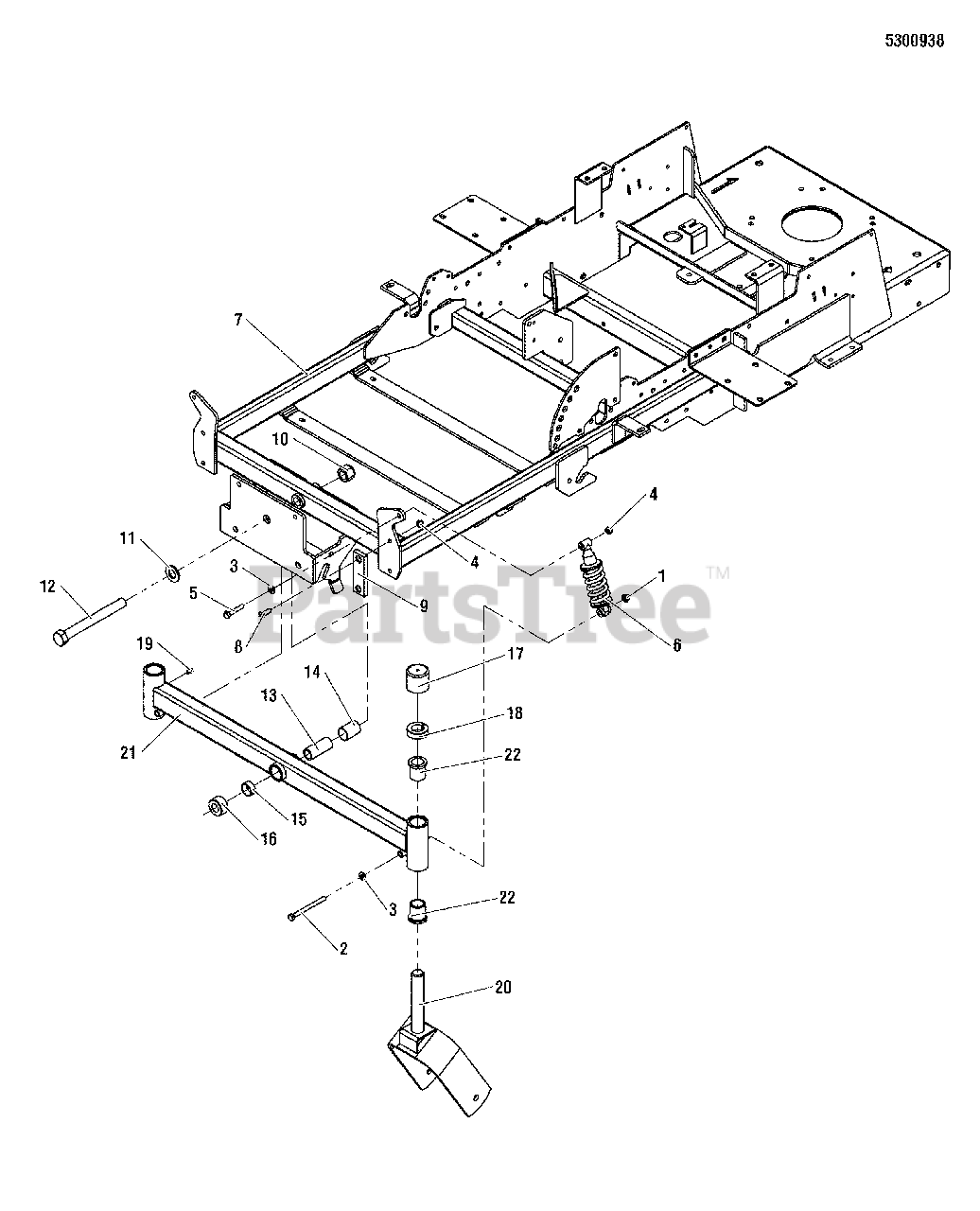

Main Frame & Front Suspension Group Parts Diagram

  • Title

1

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

Note: (360Z & 365Z Models Only)

$3.49

$

Usually ships in 2-12 days

0

2

Snapper 5025011X30

BOLT, 5/16-18 X 3-3/4 GD5
(Superseded to 5025011X30SM)

Note: (360Z & 365Z Models Only)

$6.49

$

Usually ships in 2-12 days

0

3

Snapper 5025155

WASHER, 5/16" SAE

Note: (360Z & 365Z Models Only)

$

$

Currently unavailable

4

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

Note: (355Z Models Use Qty. 4)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

Note: (360Z & 365Z Models Only)

$3.99

$

In Stock, Qty 20+

0

6

Snapper 5023213

SHOCK
(Superseded to 5023213SM)

Note: (360Z & 365Z Models Only)

$52.99

$

In Stock, only 1 left!

0

7

Snapper 5402896D

WELD, MAIN FRAME
(Superseded to 5402896DYP)

Note: (355Z Models Only)

$1937.99

$

Usually ships in 2-12 days

0

7

Snapper 5402816D

WELD, MAIN FRAME

Note: (360Z & 365Z Models Only - S/N: 2016692758 & Below)

$

$

Not available

7

Snapper 5412217D

WELD, MAIN FRAME

Note: (365Z Models - S/N: 2016692759 & Above)

$

$

Currently unavailable

8

Snapper 5025303

SCREW, 5/16-18 X 1 FLAT HD SC
(Superseded to 5025303SM)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 5100930

PAD, FRICTION, .375 X 1.25 X 4.00
(Superseded to 5102702)

$6.99

$

Usually ships in 2-12 days

0

10

Snapper 5025284

NUT, 3/4-16 HEX NYLON LOCK
(Superseded to 5025284SM)

$3.49

$

In Stock, only 3 left!

0

11

Snapper 5025160

WASHER, 3/4" SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 5

0

12

Snapper 5025265X56

BOLT, 3/4-16 X 7" YZ GD5
(Superseded to 5025265X56SM)

$43.99

$

Usually ships in 2-12 days

0

13

Snapper 5047489

SPACER, .75 X 1.00 X 2.38
(Superseded to 5047489SM)

$35.99

$

In Stock, Qty 13

0

14

Snapper 5022852

PIVOT BEARING, 1.00" X 1.125" OD X 1.50"
(Superseded to 5022852SM)

$33.99

$

In Stock, Qty 16

0

15

Snapper 5100358

PIVOT BEARING, 1.00 X 1.125 OD X .50
(Superseded to 5100358SM)

$18.99

$

In Stock, Qty 14

0

16

Snapper 5400756

SPACER, .76X 1.50 X .79
(Superseded to 5400756SM)

$9.99

$

Usually ships in 2-12 days

0

17

Snapper 5023214

CAP, VINYL 1.687 X 1-1/2
(Superseded to 5023214SM)

$6.49

$

In Stock, Qty 16

0

18

Snapper 5020602

COLLAR, 1" SPLIT
(Superseded to 5020602SM)

$22.99

$

In Stock, only 1 left!

0

19

Snapper 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

20

Snapper 5048775D

WELD,CASTER YOKE
(Superseded to 5048775DYP)

$170.99

$

Usually ships in 2-12 days

0

21

Snapper 5400962D

WELD, PIVOTING FRONT END - ORG
(Superseded to 5400962DYP)

$264.99

$

Usually ships in 2-12 days

0

22

Snapper 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 18

0
