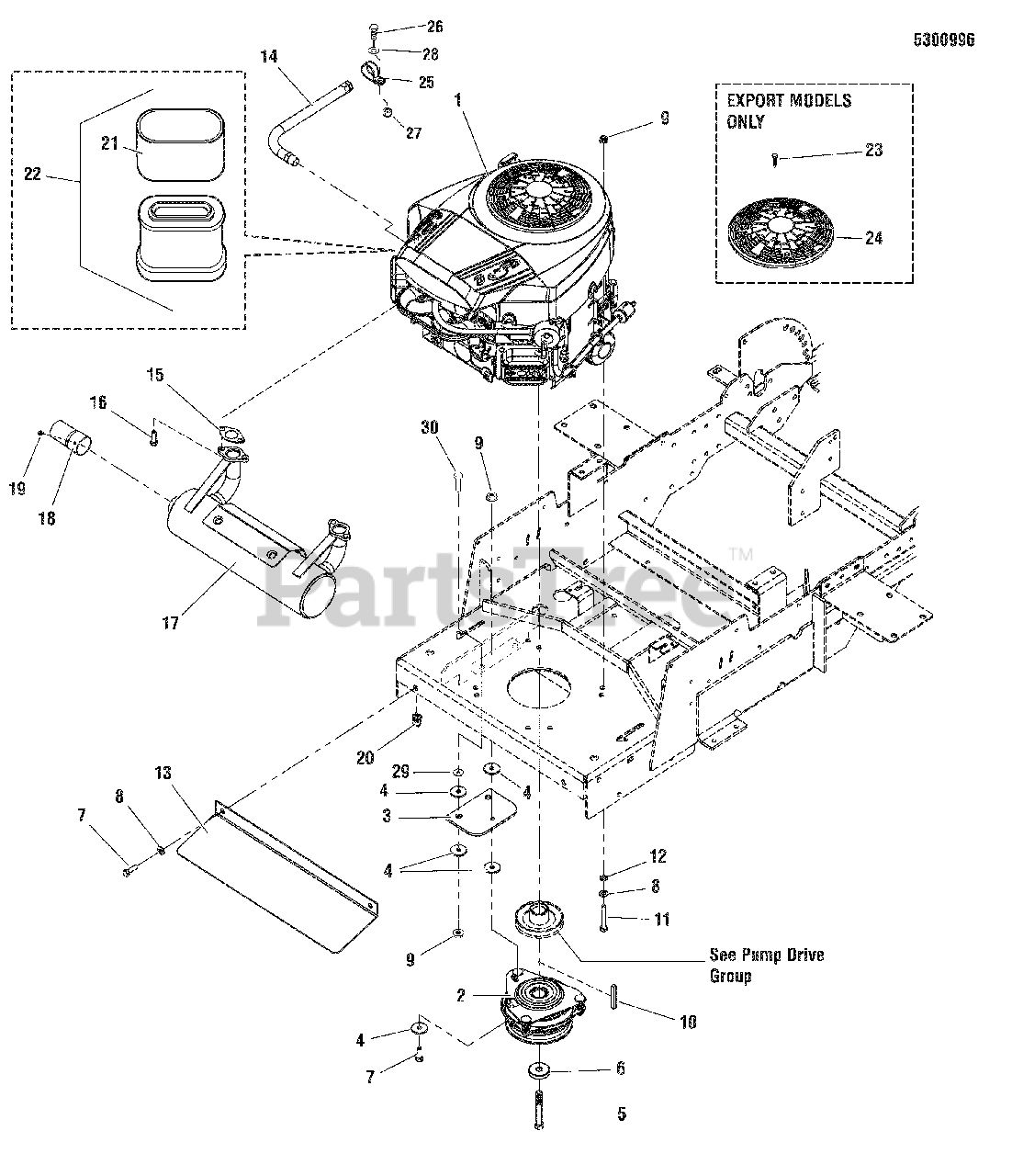

355Z (B 2446) (5900775) - Snapper 46" Zero-Turn Mower, 24hp Engine & PTO Group - S/N: 2014726546 & Below Parts Diagram

46" Zero-Turn Mower, 24hp

Engine & PTO Group - S/N: 2014726546 & Below Parts Diagram

  • Title

1

* ENGINE, B&S, ELS

$

$

Not available

2

Snapper 5023100

CLUTCH, #51110100, ELECTRIC, 1" SHAFT
(Superseded to 5023100SM)

$535.99

$

Usually ships in 2-12 days

0

3

Snapper 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

4

Snapper 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

5

Snapper 5103300

BOLT, CRANKSHAFT, 7/16-20 X 3-1/4"
(Superseded to 5103300YP)

$5.99

$

In Stock, only 1 left!

0

6

Snapper 5042132

SPACER, .45 X 1.62 X .37
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

7

Snapper 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

8

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

9

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 5050407X18

KEY, 1/4" SQ. X 2 1/4
(Superseded to 5050407X18SM)

$4.49

$

In Stock, only 1 left!

0

11

Snapper 5025011X18

BOLT, 5/16-18 X 2-1/4" GD 5 YZ
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

12

Snapper 5025188

WASHER, 5/16" INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

13

Snapper 5403059D

PLATE, HEAT SHIELD - RED
(Superseded to 5403059DYP)

$47.99

$

Usually ships in 2-12 days

0

14

Snapper 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

15

Snapper 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 19

0

16

Snapper 690341

SCREW

$5.99

$

In Stock, only 3 left!

0

17

Snapper 5100907

MUFFLER, B&S-ELS
(Superseded to 5100907SM)

$

$

Not available

18

Snapper 5104348

EXTENSION, TAILPIPE, 3" - BLACK
(Superseded to 5104348YP)

$14.99

$

Usually ships in 2-12 days

0

19

Snapper 5021808X8

SCREW
(Superseded to 5021808X8SM)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper 5022308

BODY CLIP, 5/16-18 X 1/2 DEEP
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

21

Snapper 792303

* PRE CLEANER (SV)

$10.99

$

In Stock, only 1 left!

0

22

Snapper 792105

* AIR CLEANER W/ PRE CLEANER (SV)

Note: (INCLUDES REF NO 21)

$28.99

$

In Stock, Qty 20+

0

23

Snapper 95050

* SCREW, CROSS RECESSED THREAD
(Superseded to 691138)

Note: (EXPORT MODELS)

$3.99

$

In Stock, Qty 18

0

24

Snapper 793821

COVER, STATIC / LABEL ASSY
(Superseded to 798767)

Note: (EXPORT MODELS)

$45.99

$

In Stock, Qty 7

0

25

Snapper 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

Note: (NOT SHOWN - FOR OIL DRAIN HOSE)

$4.49

$

Usually ships in 2-12 days

0

26

Snapper 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

Note: (NOT SHOWN - FOR OIL DRAIN HOSE)

$3.99

$

In Stock, Qty 20+

0

27

Snapper 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

Note: (NOT SHOWN - FOR OIL DRAIN HOSE)

$3.99

$

In Stock, Qty 20+

0

28

Snapper 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

Note: (NOT SHOWN - FOR OIL DRAIN HOSE)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

30

Snapper 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

31

Snapper 696854

FILTER, Oil

Note: (NOT SHOWN)

$13.99

$

In Stock, Qty 20+

0
