355Z (B 2446) (5900775) - Snapper 46" Zero-Turn Mower, 24hp 46" Mower Deck Group - Rollers Parts Diagram

46" Zero-Turn Mower, 24hp

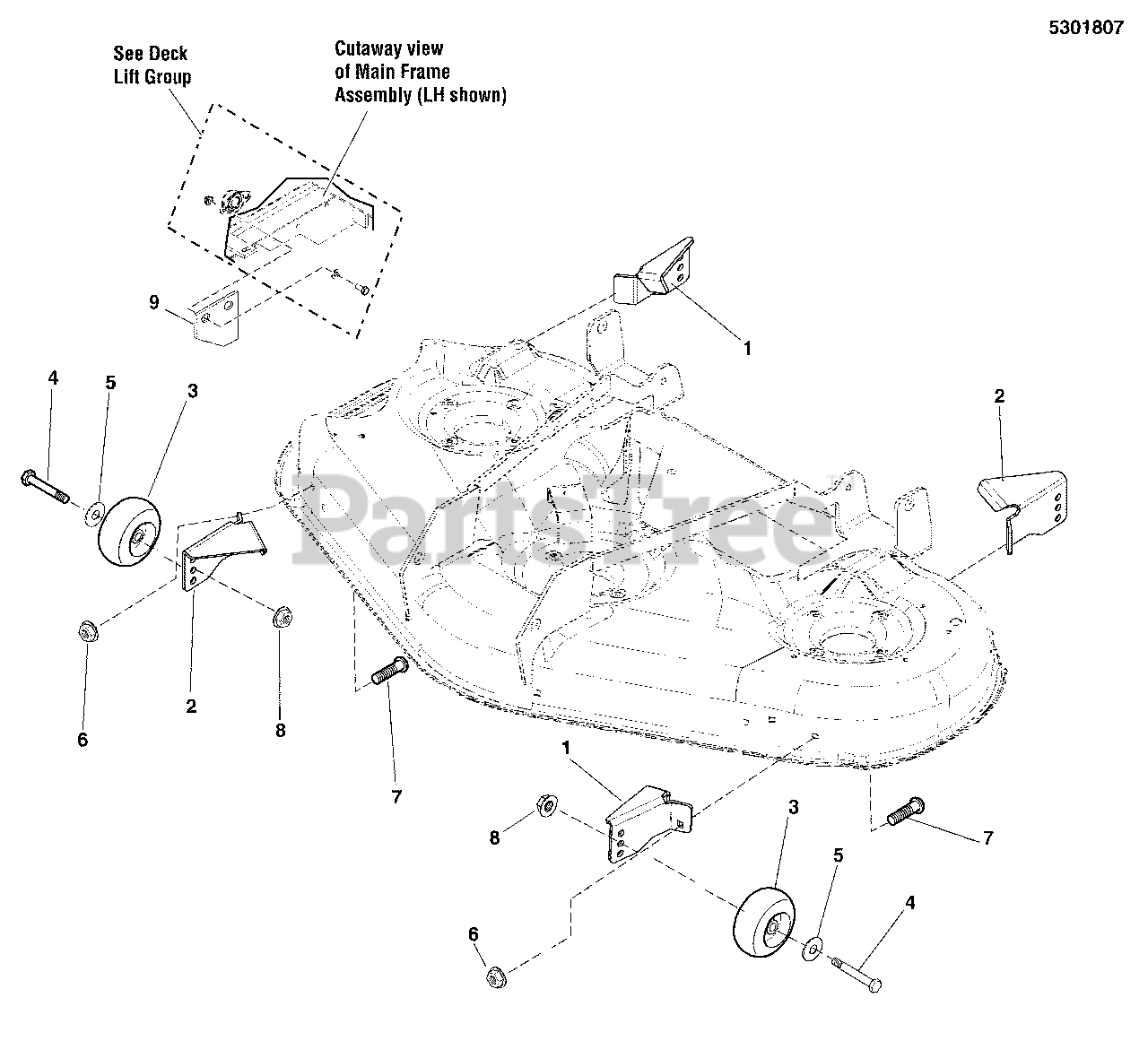

46" Mower Deck Group - Rollers Parts Diagram

  • Title

1

Snapper 1736074A

BRKT, GAUGE WHEEL
(Superseded to 1736074BMYP)

$15.99

$

In Stock, only 1 left!

0

2

Snapper 1736075A

BRKT, GAUGE WHEEL
(Superseded to 1736075BMYP)

$14.99

$

In Stock, Qty 14

0

3

Snapper 1736896

WHEEL, GAUGE BLACK POLY 5" DIA
(Superseded to 1736896YP)

$16.99

$

In Stock, Qty 5

0

4

Snapper 1736539

BOLT, SHLDR 3/8-16X3.41 .750 THRD YELLOW
(Superseded to 1736539YP)

$8.99

$

Usually ships in 2-12 days

0

5

Snapper 1960170

WASHER, 0.500 (0.51IDX1.00ODX.10THK) BLK
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

6

Snapper 1931277

NUT, HEX FLANGE 5/16-18, WHIZ LK SM, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

7

Snapper 1931334

BOLT, RD HD SH SQ NK 5/16-18X0.875 G5 BLK
(Superseded to 704065)

$4.49

$

In Stock, Qty 5

0

8

Snapper 1960687

NUT, HEX FLANGE 3/8-16 ESNA BLK
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 5405735D

PLATE, DECK STOP, 355Z - RED
(Superseded to 5405735DYP)

$18.99

$

Usually ships in 2-12 days

0
