355Z (B 2446) (5900775) - Snapper 46" Zero-Turn Mower, 24hp 46" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

46" Zero-Turn Mower, 24hp

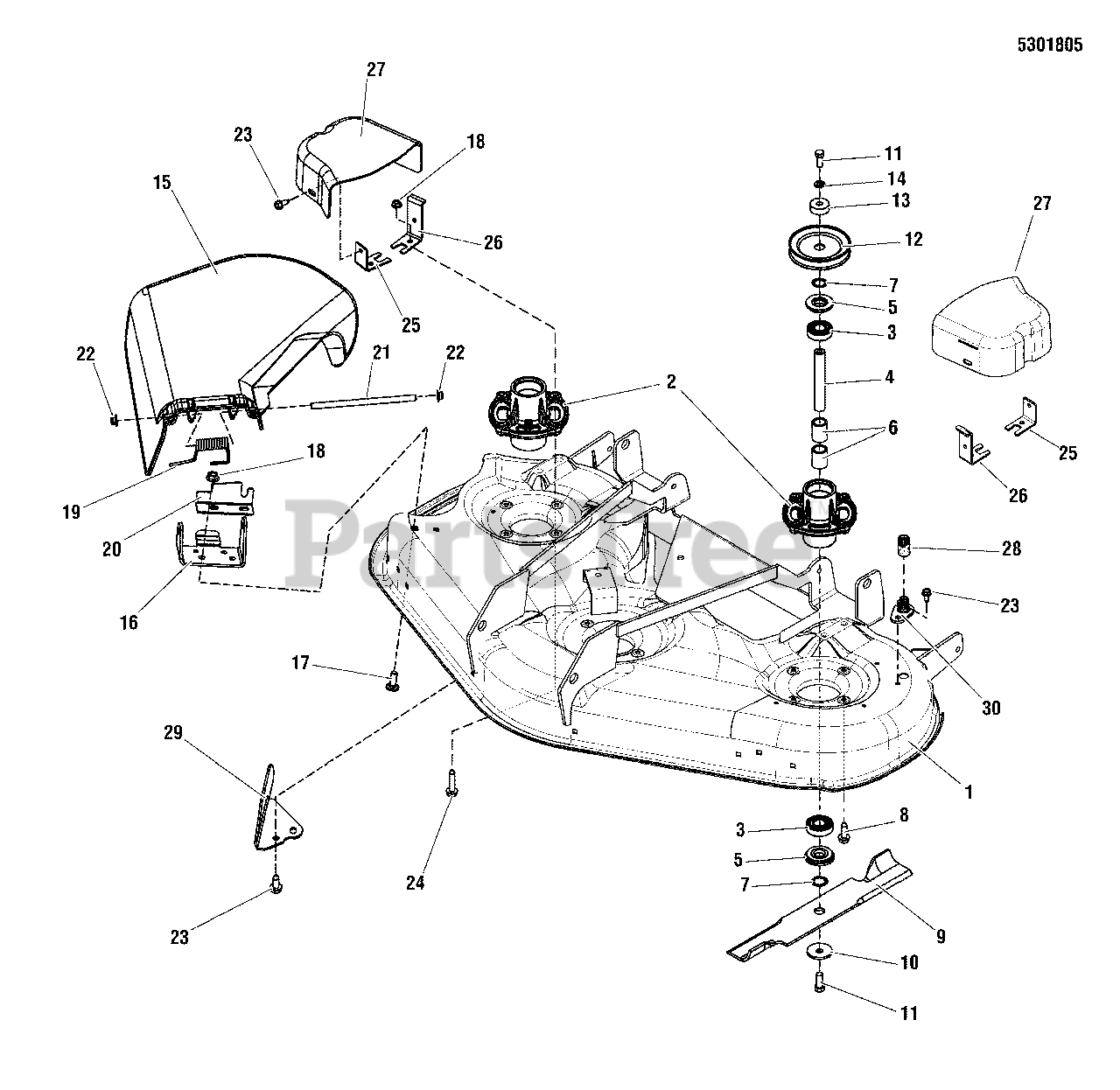

46" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Snapper 5600358

DECK SHELL, W/ DECALS, 46, SNP 355Z
(Superseded to 5600358YP)

$1310.99

$

Usually ships in 2-12 days

0

2

Snapper 1737352

HOUSING, SPINDLE, CAST STEEL, MACHINED
(Superseded to 1737352YP)

$43.99

$

In Stock, Qty 9

0

3

Snapper 1735399

BEARING, BALL, 20MM 46" MWR
(Superseded to 1735399YP)

$9.99

$

In Stock, Qty 20+

0

4

Snapper 1735326

SHAFT, SPINDLE, 20MM DIA 134.60MM LG
(Superseded to 1735326YP)

$27.99

$

In Stock, only 4 left!

0

5

Snapper 1735323

SHIELD, ARBOR, 2.050OD 46" MWR
(Superseded to 1735323YP)

$6.99

$

In Stock, Qty 8

0

6

Snapper 1735328

SPACER, BEARING PWDR MTL 46" MWR
(Superseded to 1735328YP)

$6.49

$

In Stock, only 3 left!

0

7

Snapper 1960766

RING, SELF LOCKING 46" MWR
(Superseded to 1960766YP)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 1960373

CAPSCREW, Hex Washer Head Taptite, 5/16-18X1.000BLK
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 1737228

BLADE, MOWER 16.13LG 46" MWR
(Superseded to 1737228BZYP)

$21.99

$

In Stock, Qty 20+

0

10

Snapper 1656916

WASHER, SPRING 0.475IDX1.75ODX.156TH BLK
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

11

Snapper 1920676

CAPSCREW, HEX HD 7/16-14X1.000 G5 BLK
(Superseded to 1920676SM)

$5.49

$

In Stock, Qty 12

0

12

Snapper 1735686

PULLEY, 4.6 OD 11GA SPLIT 46" MWR
(Superseded to 1735686YP)

$19.99

$

In Stock, only 2 left!

0

13

Snapper 1735579

SPACER, LOWER DRIVE 46" MWR
(Superseded to 1735579YP)

$7.49

$

In Stock, only 1 left!

0

14

Snapper 1918199

LOCKWSHER, SPRING .438 BLK
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 1735447

DEFLECTOR, DISCH PLASTIC 46/52 DECKS
(Superseded to 1687750YP)

$37.99

$

In Stock, Qty 20+

0

16

Snapper 1736365A

PIVOT, HINGE
(Superseded to 1736365BMYP)

$12.99

$

In Stock, only 1 left!

0

17

Snapper 1931333

BOLT, RD HD SH SQ NK 5/16-18X0.750 G5 BLK
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

18

Snapper 1931277

NUT, HEX FLANGE 5/16-18, WHIZ LK SM, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

19

Snapper 1736364

SPRING, TORS DEFLECTOR 2.16LG 46" MWR
(Superseded to 1736364YP)

$8.49

$

Usually ships in 2-12 days

0

20

Snapper 1737359A

PLATE, DEFLECTOR CLOSEOFF
(Superseded to 1737359BMYP)

$8.49

$

In Stock, only 3 left!

0

21

Snapper 1736366

ROD, DEFLECTOR, YELLOW ZINC
(Superseded to 1736366YP)

$11.99

$

Usually ships in 2-12 days

0

22

Snapper 7012542

NUT, PUSH, 5/16 BZ
(Superseded to 704028)

$5.49

$

In Stock, only 4 left!

0

23

Snapper 1664847

CAPSCREW, Hex Washer Head Taptite, 5/16-18X0.750BLK
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 1930600

CAPSCREW, Hex Washer Head Taptite, 5/16-18X1.500 BLK
(Superseded to 1930600SM)

$4.99

$

In Stock, Qty 19

0

25

Snapper 5405736A

BRKT, BELT COVER, SHORT
(Superseded to 5405736AYP)

$11.99

$

In Stock, only 2 left!

0

26

Snapper 5405734A

BRKT, BELT COVER, TALL W/ TAB
(Superseded to 5405734AYP)

$15.99

$

In Stock, only 2 left!

0

27

Snapper 1735752

COVER, BELT BLACK POLY 46 + 52" MWRS
(Superseded to 1735752YP)

$29.99

$

Usually ships in 2-12 days

0

28

Snapper 1736898

CONNECTER, WASHOUT PORT, 46+52" BLK POLY
(Superseded to 1756246YP)

$15.99

$

In Stock, only 1 left!

0

29

Snapper 1737279A

BAFFLE, PINCHOFF
(Superseded to 1737279BMYP)

$16.99

$

In Stock, only 1 left!

0

30

Snapper 1735716

ADAPTER, WASHOUT PORT 46+52" PLASTIC
(Superseded to 1756247YP)

$6.49

$

Usually ships in 2-12 days

0
