355447-0121-01 - Briggs & Stratton Horizontal Engine Flywheel, Ignition, and Starter Group Parts Diagram

Horizontal Engine

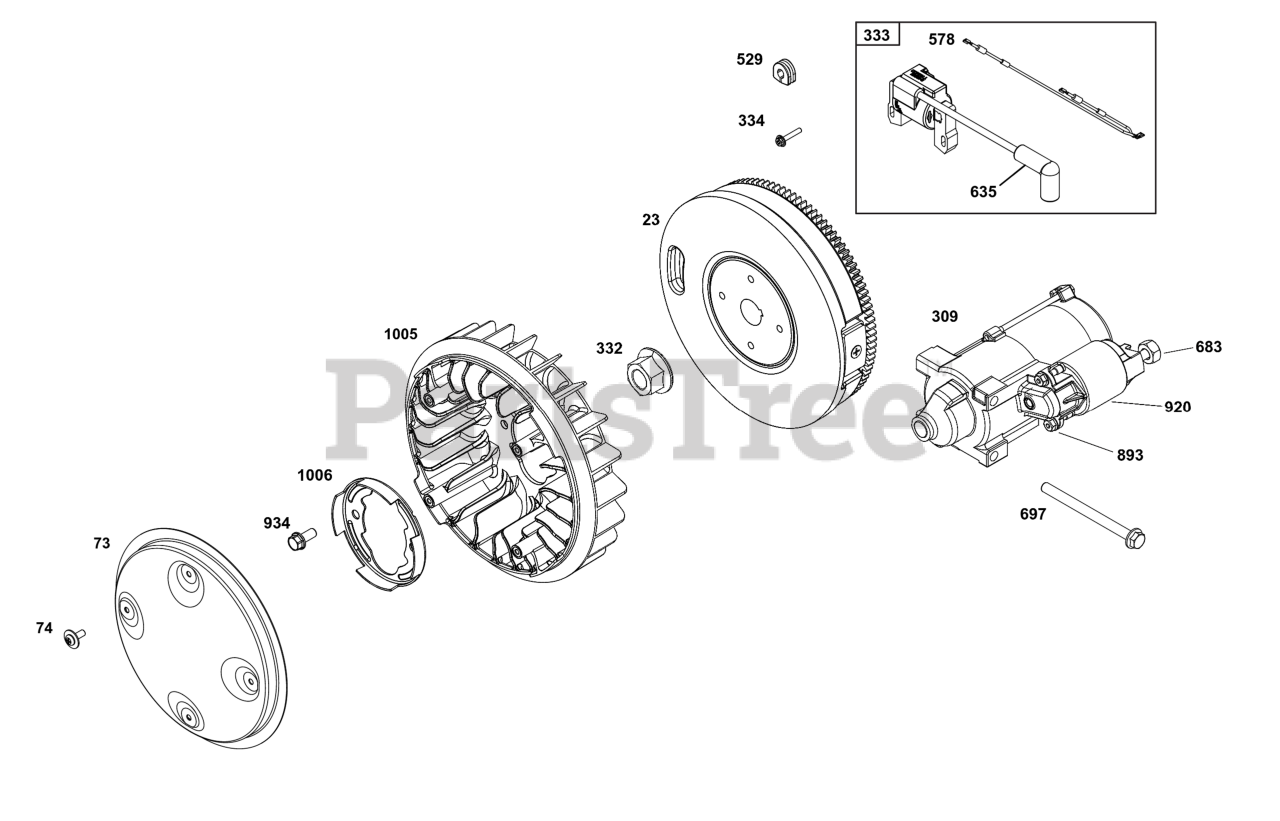

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 845489

FLYWHEEL

$315.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 841440

SCREEN, Rotating

$37.99

$

In Stock, only 2 left!

0

74

Briggs & Stratton 841441

SCREW
(Superseded to 84007750)

Note: (Rotating Screen)

$3.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 847693

MOTOR, Starter

$249.99

$

In Stock, only 2 left!

0

332

Briggs & Stratton 690887

NUT

Note: (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 845606

ARMATURE, Magneto
(Superseded to 84003819)

$71.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 692066

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 7

0

529

Briggs & Stratton 690744

GROMMET

$7.49

$

Usually ships in 2-12 days

0

683

Briggs & Stratton 691029

NUT

Note: (Starter Solenoid)

$5.49

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 806474

SCREW

Note: (Starter Motor) (Drive Cap)

$5.49

$

Usually ships in 2-12 days

0

893

Briggs & Stratton 845758

NUT

Note: (Starter Solenoid)

$2.99

$

In Stock, only 1 left!

0

920

Briggs & Stratton 847694

SOLENOID, Starter
(Superseded to 84008635)

$61.99

$

In Stock, only 3 left!

0

934

Briggs & Stratton 692062

SCREW

Note: (Fan Retainer)

$3.49

$

In Stock, Qty 20+

0

1005

Briggs & Stratton 841439

FAN, Flywheel

$34.99

$

In Stock, only 2 left!

0

1006

Briggs & Stratton 690452

RETAINER, Fan

$10.99

$

Usually ships in 2-12 days

0
