355447-0120-01 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

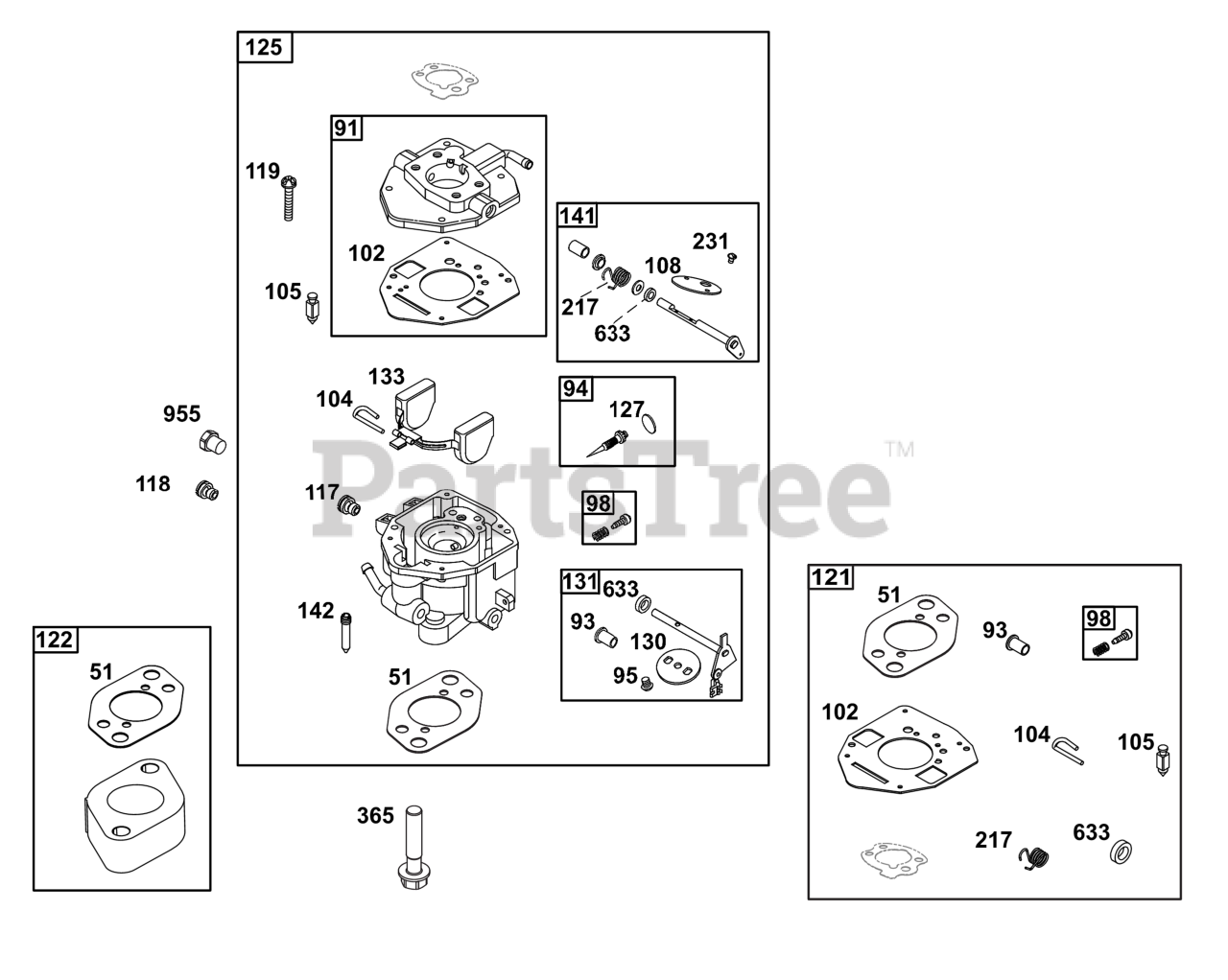

Carburetor Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

91

Briggs & Stratton 845515

BODY, Upper Carburetor

$167.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 84002695

BUSHING, Throttle Shaft

$14.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 847026

KIT, Idle Mixture

$16.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 808981

KIT, Idle Speed

$37.99

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 845516

GASKET, Carburetor Body

$43.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 690723

PIN, Float Hinge

$9.49

$

In Stock, only 3 left!

0

105

Briggs & Stratton 846577

VALVE, Float Needle

$22.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 847024

VALVE, Choke

$

$

Currently unavailable

117

Briggs & Stratton 844990

JET, Main

Note: (Standard)

$19.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 805537

JET-MAIN

Note: (High Altitude) (5000 > 9000 Feet)

$19.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 807012

JET, Main

Note: (High Altitude) (9000+ Feet)

$16.99

$

Usually ships in 2-12 days

0

119

Briggs & Stratton 690720

SCREW

Note: (Upper Carburetor Body to Lower Carburetor Body)

$3.49

$

In Stock, only 2 left!

0

121

Briggs & Stratton 84002693

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$202.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 690691

SPACER, Carburetor

$13.99

$

In Stock, only 3 left!

0

125

Briggs & Stratton 846546

CARBURETOR

$345.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 847028

PLUG, Welch

$5.99

$

In Stock, only 1 left!

0

130

Briggs & Stratton 84002700

VALVE, Throttle

$10.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 846578

KIT, Throttle Shaft

$69.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 844546

FLOAT, Carburetor

$29.99

$

In Stock, only 1 left!

0

141

Briggs & Stratton 845518

KIT, Choke Shaft

$67.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 845521

NOZZLE, Carburetor

$38.99

$

Usually ships in 2-12 days

0

217

Briggs & Stratton 84002699

SPRING, Choke Return

$17.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

365

Briggs & Stratton 690711

SCREW

Note: (Carburetor/Throttle Body)

$6.99

$

Usually ships in 2-12 days

0

633

Briggs & Stratton 690722

SEAL, Choke/Throttle Shaft

$15.99

$

In Stock, only 4 left!

0

955

Briggs & Stratton 807723

PLUG, Carburetor

$6.49

$

In Stock, Qty 12
