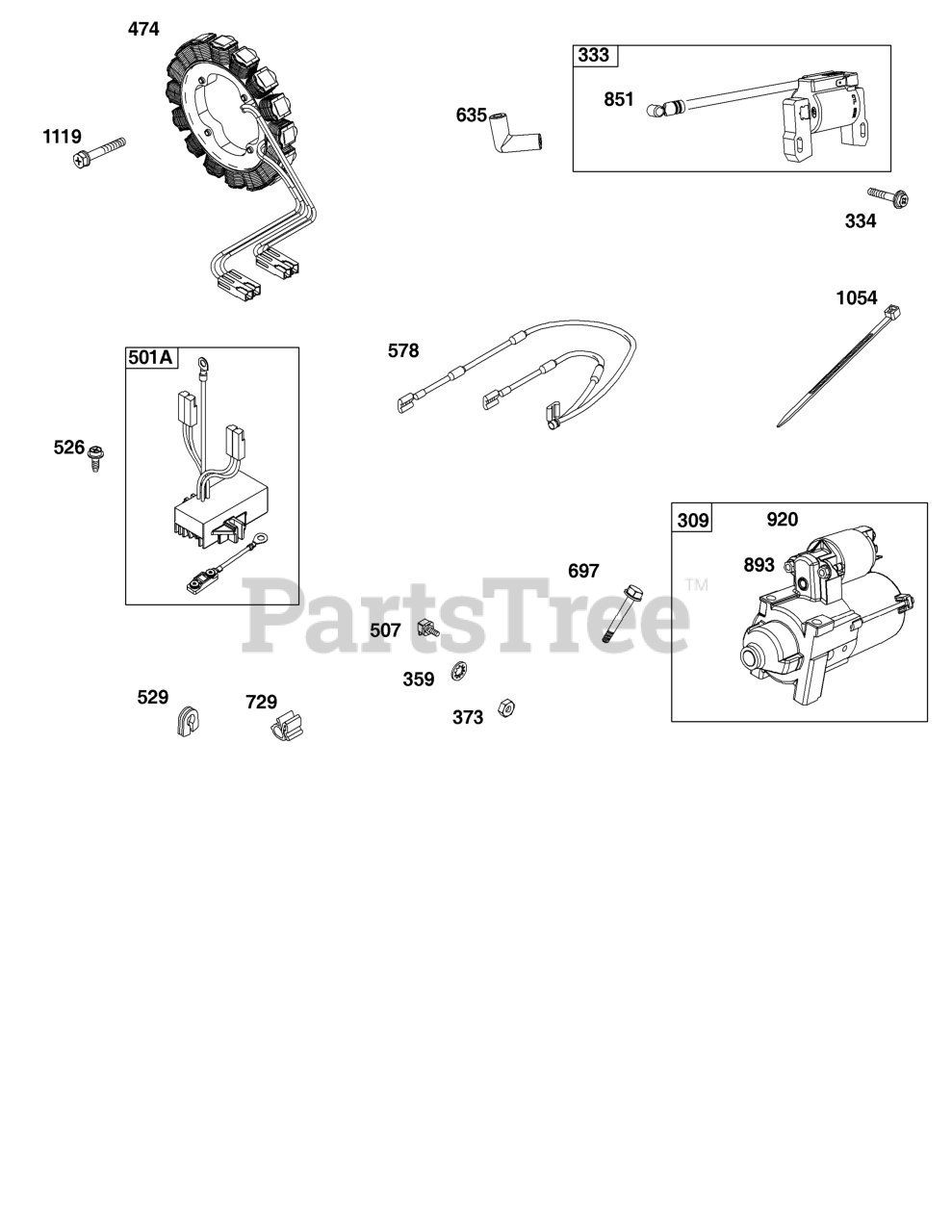

355447-0119-01 - Briggs & Stratton Horizontal Engine Alternator, Electric Starter, Regulator, Wires Parts Diagram

Horizontal Engine

Alternator, Electric Starter, Regulator, Wires Parts Diagram

  • Title

309

Briggs & Stratton 847693

MOTOR, Starter

$249.99

$

In Stock, only 2 left!

0

333

Briggs & Stratton 844548

Armature-Magneto
(Superseded to 845606)

$71.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 692066

Screw

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 7

0

359

Briggs & Stratton 691077

Washer (Ground Terminal)

Note: (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

373

Briggs & Stratton 845823

Nut

Note: (Ground Terminal)

$4.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 841178

ALTERNATOR

$232.99

$

In Stock, only 1 left!

0

501A

Briggs & Stratton 848187

REGULATOR

$262.99

$

In Stock, only 2 left!

0

507

Briggs & Stratton 691972

Insulator

$8.49

$

In Stock, only 2 left!

0

526

Briggs & Stratton 690717

Screw

Note: (Regulator)

$3.49

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 690744

Grommet

$7.49

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 844547

Wire Assembly

$17.99

$

In Stock, Qty 20+

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

697

Briggs & Stratton 806474

Screw

Note: (Starter Motor) (Drive Cap)

$5.49

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 690586

Clip-Wire

$3.99

$

In Stock, only 3 left!

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

893

Briggs & Stratton 845758

Nut

Note: (Starter Solenoid)

$2.99

$

In Stock, only 2 left!

0

920

Briggs & Stratton 847694

SOLENOID, Starter
(Superseded to 84008635)

$61.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691552

SCREW

Note: (Alternator)

$3.99

$

Usually ships in 2-12 days

0
