355447-0110-G2 - Briggs & Stratton Horizontal Engine Carburetors, Fuel Pump, Intake Manifold Parts Diagram

Horizontal Engine

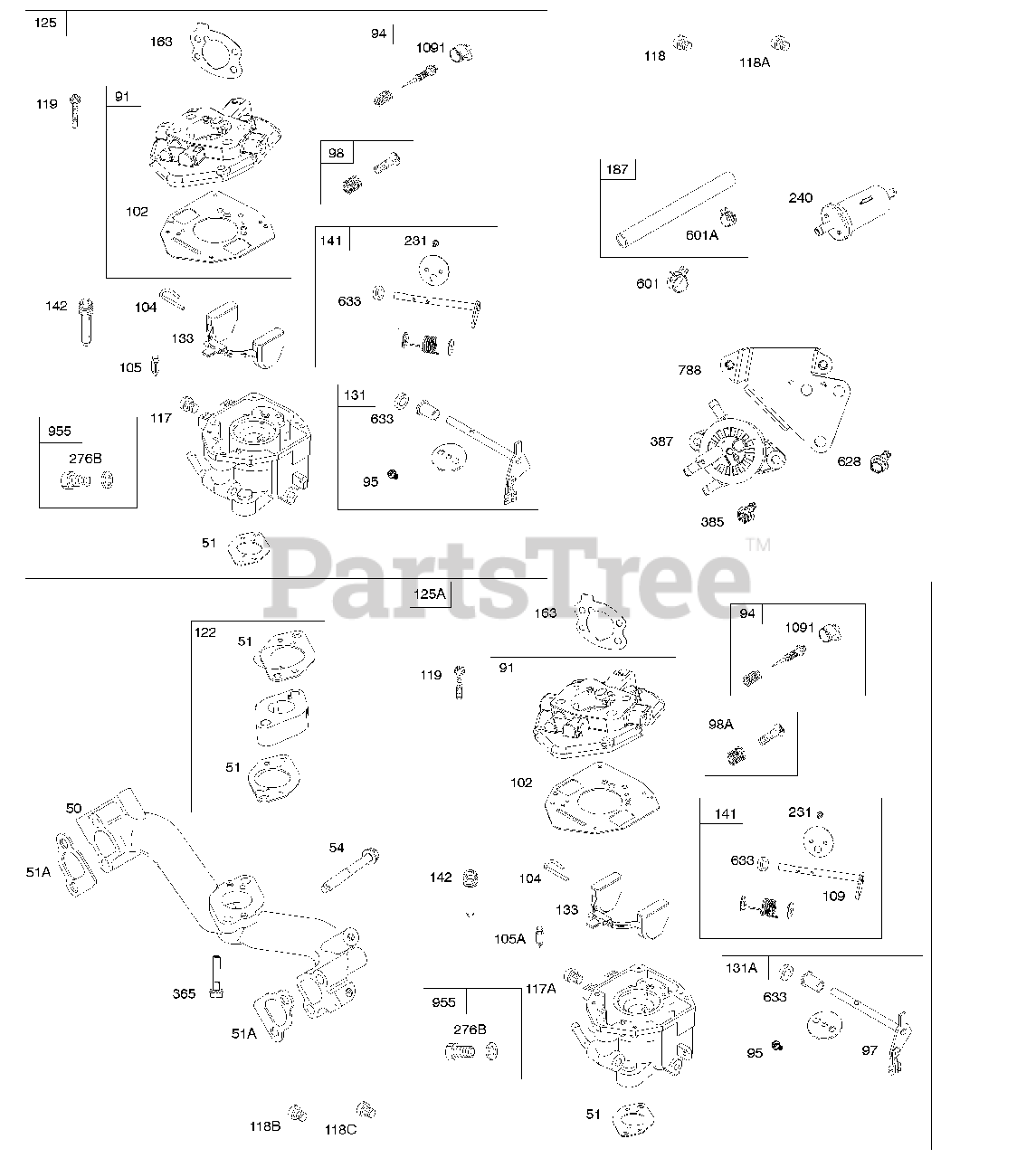

Carburetors, Fuel Pump, Intake Manifold Parts Diagram

  • Title

50

Briggs & Stratton 690754

Manifold-Intake

$131.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 691694

Gasket-Intake

Note: (Intake Manifold To Carburetor)

$2.99

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 692035

Gasket-Intake

Note: (Intake Manifold to Cylinder Head)

$3.49

$

In Stock, Qty 17

0

54

Briggs & Stratton 846604

Screw

Note: (Intake Manifold)

$5.99

$

Usually ships in 2-12 days

0

91

Briggs & Stratton 845515

Body-Upper Carburetor

$167.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 844987

Kit-Idle Mixture

$44.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 808177

Kit-Idle Speed

$13.99

$

In Stock, only 1 left!

0

102

Briggs & Stratton 845516

Gasket-Carburetor Body

$43.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 690723

Pin-Float Hinge

$9.49

$

In Stock, only 3 left!

0

105

Briggs & Stratton 797410

Valve-Float Needle

$15.99

$

In Stock, Qty 20+

0

117

Briggs & Stratton 690880

Jet-Main

Note: (Standard) (Standard)

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 844990

Jet-Main

Note: (High Altitude) (High Altitude) (5000 > 9000 Feet)

$19.99

$

In Stock, only 1 left!

0

118A

Briggs & Stratton 805537

Jet-Main

Note: (High Altitude) (High Altitude) (9000 Feet and Above)

$19.99

$

Usually ships in 2-12 days

0

119

Briggs & Stratton 690720

Screw

Note: (Upper Carburetor Body to Lower Carburetor Body)

$3.49

$

In Stock, only 2 left!

0

122

Briggs & Stratton 690691

Spacer-Carburetor

$13.99

$

In Stock, only 3 left!

0

125

Briggs & Stratton 845512

Carburetor
(Superseded to 846546)

$345.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 845517

Kit-Throttle Shaft

$74.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 844546

Float-Carburetor

$29.99

$

In Stock, only 1 left!

0

141

Briggs & Stratton 845518

Kit-Choke Shaft

$67.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 845521

Nozzle-Carburetor

$38.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 844931

Gasket-Air Cleaner

$5.49

$

In Stock, Qty 18

0

187

Briggs & Stratton 791766

LINE, Fuel

Note: (15" Long)(Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

187

Briggs & Stratton 841589

Line-Fuel

Note: (35 Inches Long)(Cut To Required Length)

$38.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.49

$

In Stock, Qty 20+

0

276B

Briggs & Stratton 690724

Washer-Sealing

Note: (Carburetor Plug)

$7.99

$

In Stock, Qty 8

0

365

Briggs & Stratton 690711

Screw

Note: (Carburetor)

$6.99

$

Usually ships in 2-12 days

0

385

Briggs & Stratton 807084

SCREW

Note: (Fuel Pump)

$3.49

$

In Stock, only 3 left!

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 691038

CLAMP, Hose

Note: (Black)

$3.99

$

In Stock, Qty 17

0

601A

Briggs & Stratton 791850

CLAMP, Hose

Note: (Green)

$3.49

$

In Stock, Qty 20+

0

628

Briggs & Stratton 806660

Screw

Note: (Fuel Pump Bracket)

$3.99

$

In Stock, only 1 left!

0

633

Briggs & Stratton 690722

SEAL, Choke/Throttle Shaft

Note: (Throttle Shaft) (Choke Shaft)

$15.99

$

In Stock, only 4 left!

0

788

Briggs & Stratton 691559

Bracket-Fuel Pump

$24.99

$

In Stock, only 1 left!

0

955

Briggs & Stratton 807723

Plug-Carburetor

$6.49

$

In Stock, Qty 12

0

1091

Briggs & Stratton 844448

Cap-Limiter

$8.49

$

Usually ships in 2-12 days

0
