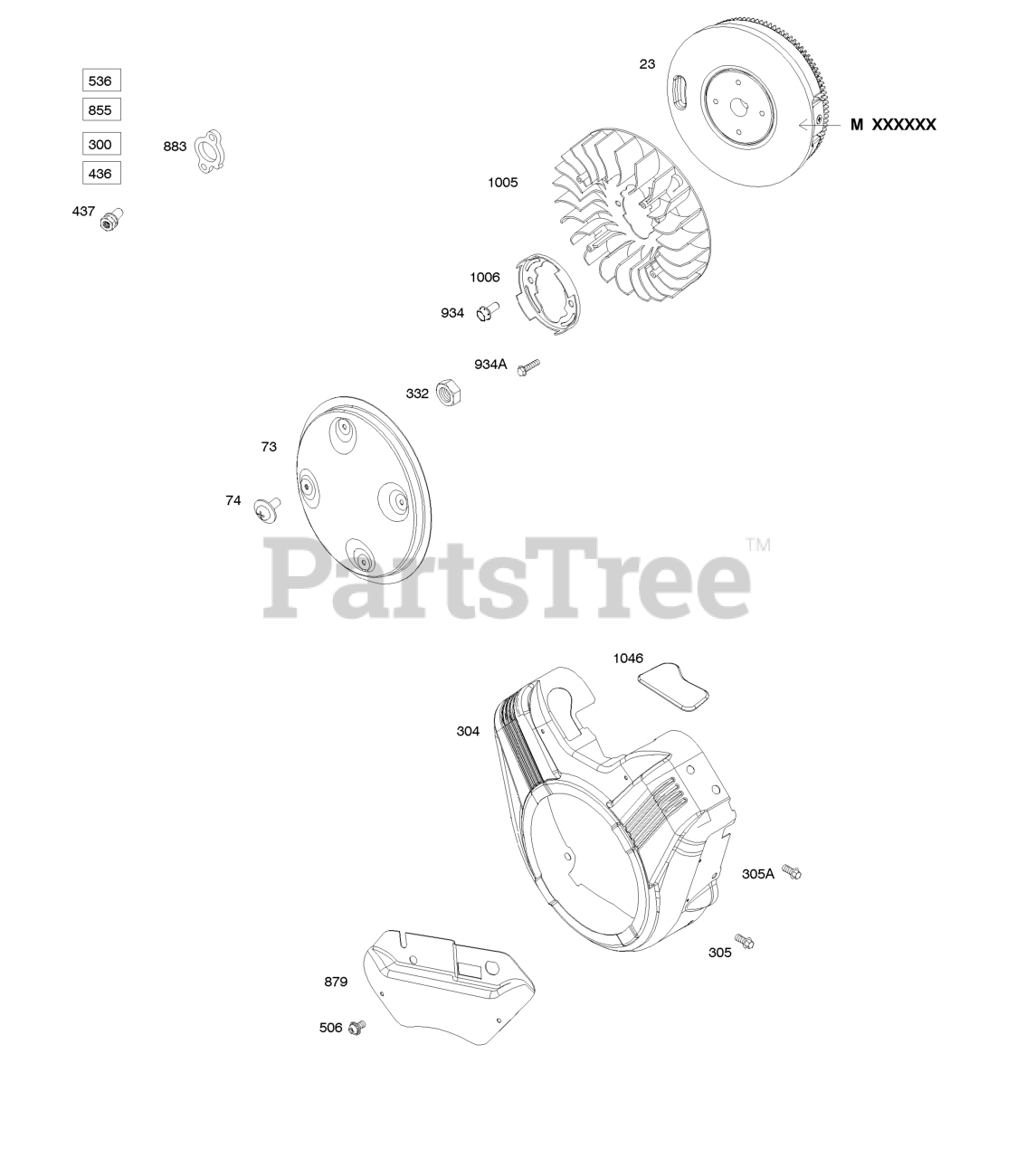

355447-0110-G2 - Briggs & Stratton Horizontal Engine Blower Housing, Flywheel, Rotating Screen Parts Diagram

Horizontal Engine

Blower Housing, Flywheel, Rotating Screen Parts Diagram

  • Title
23

Briggs & Stratton 845489

Flywheel

Note: (Metric Thread) (M XXXXXX)

$315.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 841440

Screen-Rotating

$37.99

$

In Stock, only 2 left!

0

74

Briggs & Stratton 841441

Screw
(Superseded to 84007750)

Note: (Rotating Screen)

$3.99

$

Usually ships in 2-12 days

0

300

Muffler

Note: (CONTACT O.E.M. FOR REPLACEMENT)

$

$

Not available

304

Briggs & Stratton 844153

Housing-Blower
(Superseded to 84003968)

$132.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 692056

Screw

Note: (Blower Housing) (M8x14mm)

$5.99

$

In Stock, Qty 5

0

305A

Briggs & Stratton 841233

SCREW

Note: (Blower Housing) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 690887

Nut

Note: (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

436

Manifold-Exhaust

Note: (CONTACT O.E.M. FOR REPLACEMENT)

$

$

Not available

437

Briggs & Stratton 691902

Screw

Note: (Exhaust Manifold)

$3.49

$

In Stock, Qty 8

0

506

Briggs & Stratton 807120

Screw

Note: (Carburetor Cover)

$3.99

$

Usually ships in 2-12 days

0

536

Cleaner-Air

Note: (CONTACT O.E.M. FOR REPLACEMENT)

$

$

Not available

855

Adapter-Air Cleaner

Note: (CONTACT O.E.M. FOR REPLACEMENT)

$

$

Not available

879

Briggs & Stratton 842132

Cover-Carburetor/EFI

$26.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 691613

Gasket-Exhaust

$5.49

$

Usually ships in 2-12 days

0

934

Briggs & Stratton 692062

Screw

Note: (Fan Retainer) (M8x18mm) Used After Code Date 14112600

$3.49

$

In Stock, Qty 20+

0

934A

Briggs & Stratton 691058

Screw (Fan Retainer)

Note: (Fan Retainer) (5/16-18x.75) Used Before Code Date 14112700

$5.99

$

In Stock, Qty 11

0

1005

$34.99

$

In Stock, only 2 left!

0

1006

$10.99

$

Usually ships in 2-12 days

0

1046

Briggs & Stratton 692082

Plug-Blower Housing

$11.99

$

Usually ships in 2-12 days

0
