355 RX - Husqvarna String Trimmer (SN: 20073100001 - 20082700000) CARBURETOR & AIR FILTER Parts Diagram

String Trimmer

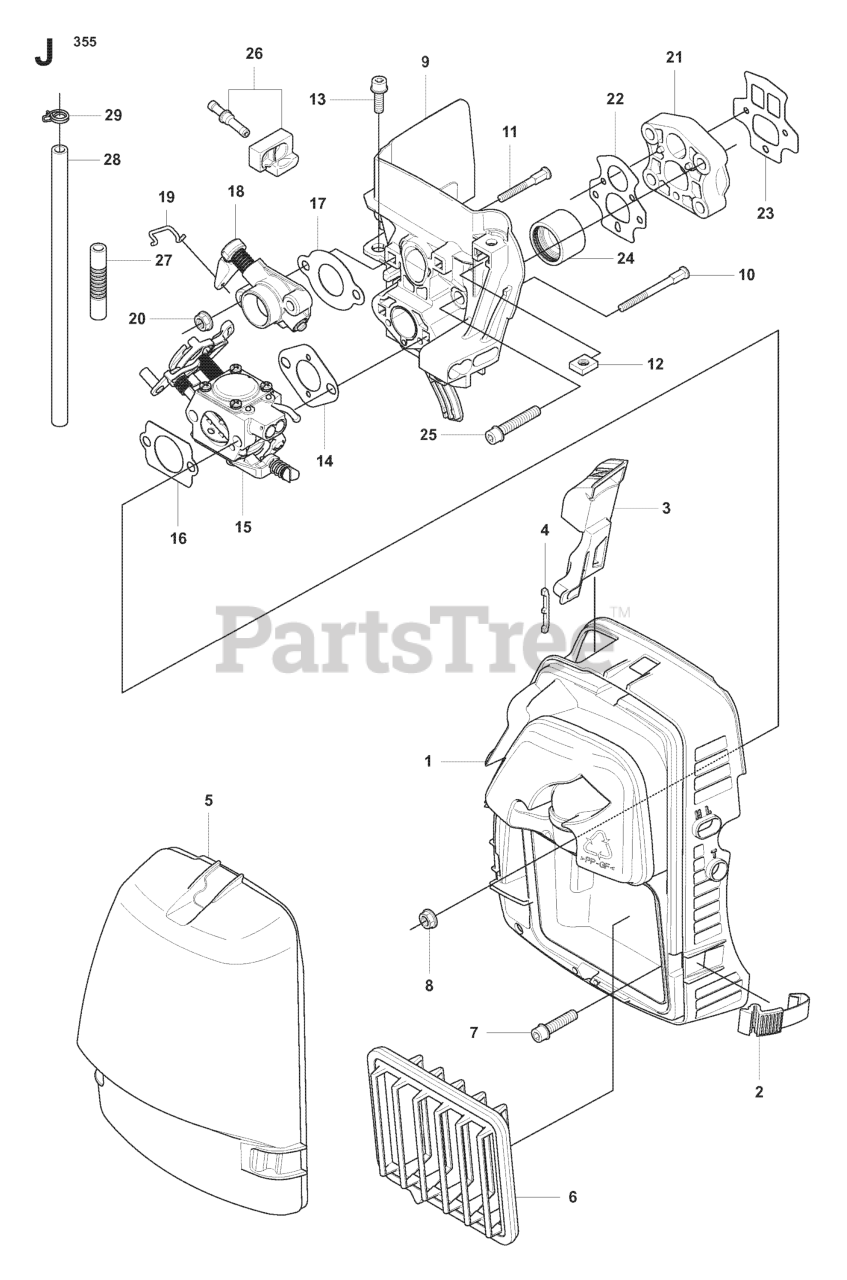

CARBURETOR & AIR FILTER Parts Diagram

  • Title
15

Husqvarna 502654201

CARBURETOR WT-814A
(Superseded to 505426801)

Note: WALBRO WT-814A

$113.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

5

Husqvarna 537410101

FILTER COVER
(Superseded to 537410102)

$20.99

$

Usually ships in 3-10 days

0

1

Husqvarna 537412501

FILTER HOLDER
(Superseded to 537412502)

$

$

Not available

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 537410803

FILTER

Note: FLOCK

$

$

Not available

26

$5.99

$

Usually ships in 3-10 days

0

25

Husqvarna 503200780

SCREW IHSCFM

$4.99

$

In Stock, only 1 left!

0

28

Husqvarna 544324914

RP FUEL HOSE
(Superseded to 581756114)

$7.99

$

In Stock, only 2 left!

0

$7.49

$

In Stock, only 2 left!

0

6

Husqvarna 537410801

FILTER

Note: NYLON 80/32 WINTER

$

$

Not available

$4.99

$

Usually ships in 3-10 days

0

$11.99

$

In Stock, only 3 left!

0

27

Husqvarna 537425802

SUCTION HOSE
(Superseded to 581756140)

$5.99

$

In Stock, Qty 5

0

18

Husqvarna 544214001

VALVE HOUSING

$22.99

$

Usually ships in 3-10 days

0

14

Husqvarna 544042901

%GASKET
(Superseded to 510043701)

$6.49

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, only 2 left!

0

$

$

Not available

6

Husqvarna 537410802

FILTER

Note: NYLON 44/27

$22.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, only 3 left!

0

9

Husqvarna 537350401

INSULATION WALL

$17.99

$

Usually ships in 3-10 days

0

21

$13.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, only 3 left!

0

$6.49

$

In Stock, Qty 8

0

3

Husqvarna 537352601

CHOKE CONTROL

$6.99

$

Usually ships in 3-10 days

0

24

Husqvarna 537410501

INLET PIPE

$6.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 544348601

HOSE CLAMP

$6.49

$

Usually ships in 3-10 days

0
