355 RX - Husqvarna String Trimmer (2008-07) Carb Parts/WT-814A (355) Parts Diagram

String Trimmer

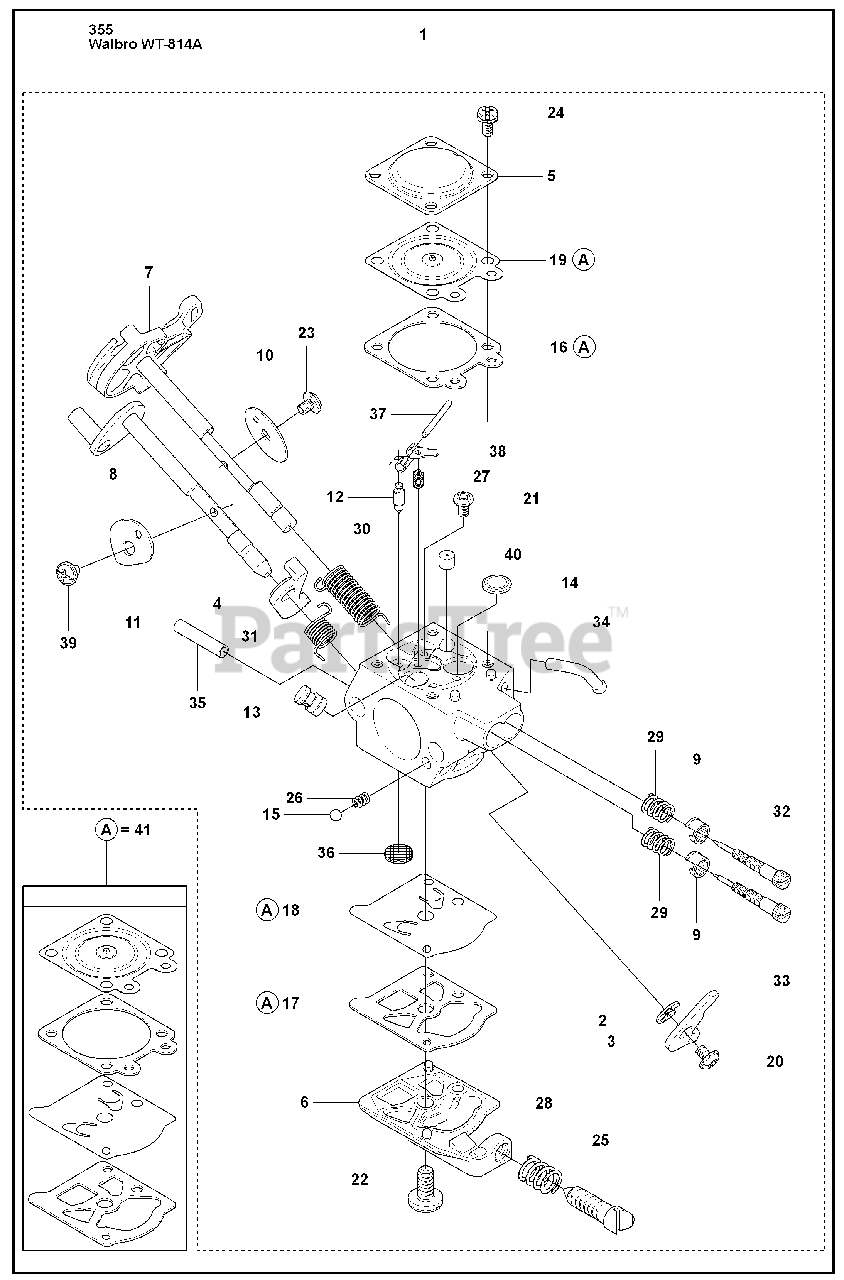

Carb Parts/WT-814A (355) Parts Diagram

  • Title

1

Husqvarna 502654201

CARBURETOR WT-814A
(Superseded to 505426801)

Note: Incl. Pos. 2-40

$113.99

$

Usually ships in 3-10 days

0

2

Husqvarna 505316736

E CLIP
(Superseded to 502119801)

$9.49

$

Usually ships in 3-10 days

0

3

Husqvarna 544970701

LEVER

$

$

Not available

4

Husqvarna 544177701

LEVER

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 505316754

DIAPHRAGM COVER

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503584301

COVER

$6.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544043601

SHAFT

$11.99

$

Usually ships in 3-10 days

0

8

Husqvarna 544044001

SHAFT

$13.99

$

Usually ships in 3-10 days

0

9

Husqvarna 544970801

LIMITER CAP

$8.99

$

In Stock, only 2 left!

0

10

Husqvarna 544970901

VALVE

$

$

Not available

11

Husqvarna 537109601

VALVE

$

$

Not available

12

Husqvarna 503563401

INLET NEEDLE

$17.99

$

In Stock, Qty 10

0

13

Husqvarna 503800401

JET

$4.99

$

In Stock, only 1 left!

0

14

Husqvarna 503607801

PLUG
(Superseded to 503574201)

$7.99

$

In Stock, only 4 left!

0

15

Husqvarna 501468501

BALL

$7.99

$

Usually ships in 3-10 days

0

16

Husqvarna 504350906

GASKET

$11.99

$

In Stock, Qty 7

0

17

Husqvarna 504130906

GASKET

$11.99

$

In Stock, only 3 left!

0

18

Husqvarna 502213601

DIAPHRAGM, FUEL PUMP
(Superseded to 504130807)

$31.99

$

In Stock, Qty 6

0

19

Husqvarna 504130808

METERING DIAPHRAGM
(Superseded to 503896701)

$51.99

$

In Stock, Qty 10

0

20

Husqvarna 501468701

SCREW

$7.99

$

Usually ships in 3-10 days

0

21

Husqvarna 505316717

SCREW

$7.99

$

In Stock, Qty 6

0

22

Husqvarna 501466901

SCREW

$9.49

$

In Stock, Qty 5

0

23

Husqvarna 537003401

SCREW
(Superseded to 501468701)

$7.99

$

Usually ships in 3-10 days

0

24

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, Qty 5

0

25

Husqvarna 537408201

SCREW

$17.99

$

In Stock, only 1 left!

0

26

Husqvarna 501468401

SPRING

$7.99

$

In Stock, only 1 left!

0

27

Husqvarna 501795901

SPRING

$11.99

$

Usually ships in 3-10 days

0

28

Husqvarna 501667801

SPRING
(Superseded to 530035121)

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 544971001

SPRING

$10.99

$

Usually ships in 3-10 days

0

30

Husqvarna 544177601

SPRING

$13.99

$

Usually ships in 3-10 days

0

31

Husqvarna 544971101

SPRING

$

$

Not available

32

Husqvarna 502847201

NEEDLE

Note: H

$8.99

$

Usually ships in 3-10 days

0

33

Husqvarna 544971301

NEEDLE

Note: L

$14.99

$

Usually ships in 3-10 days

0

34

Husqvarna 544971501

FITTING

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 544971601

FITTING

$

$

Not available

36

Husqvarna 501666101

FUEL INLET SCREEN

$14.99

$

In Stock, Qty 5

0

37

Husqvarna 505520125

FULCRUM PIN

$7.99

$

In Stock, only 3 left!

0

38

Husqvarna 505520127

LEVER

$5.99

$

Usually ships in 3-10 days

0

39

Husqvarna 544111501

SCREW

$7.99

$

Usually ships in 3-10 days

0

40

Husqvarna 505426901

JET

$

$

Not available

41

Husqvarna 537412601

GASKET SET

Note: Incl. Pos. 16, 17, 18 & 19

$29.99

$

Usually ships in 3-10 days

0
