355 FXT - Husqvarna Brush Cutter (2008-07) Gearbox/355Fx/Fxt Parts Diagram

Brush Cutter

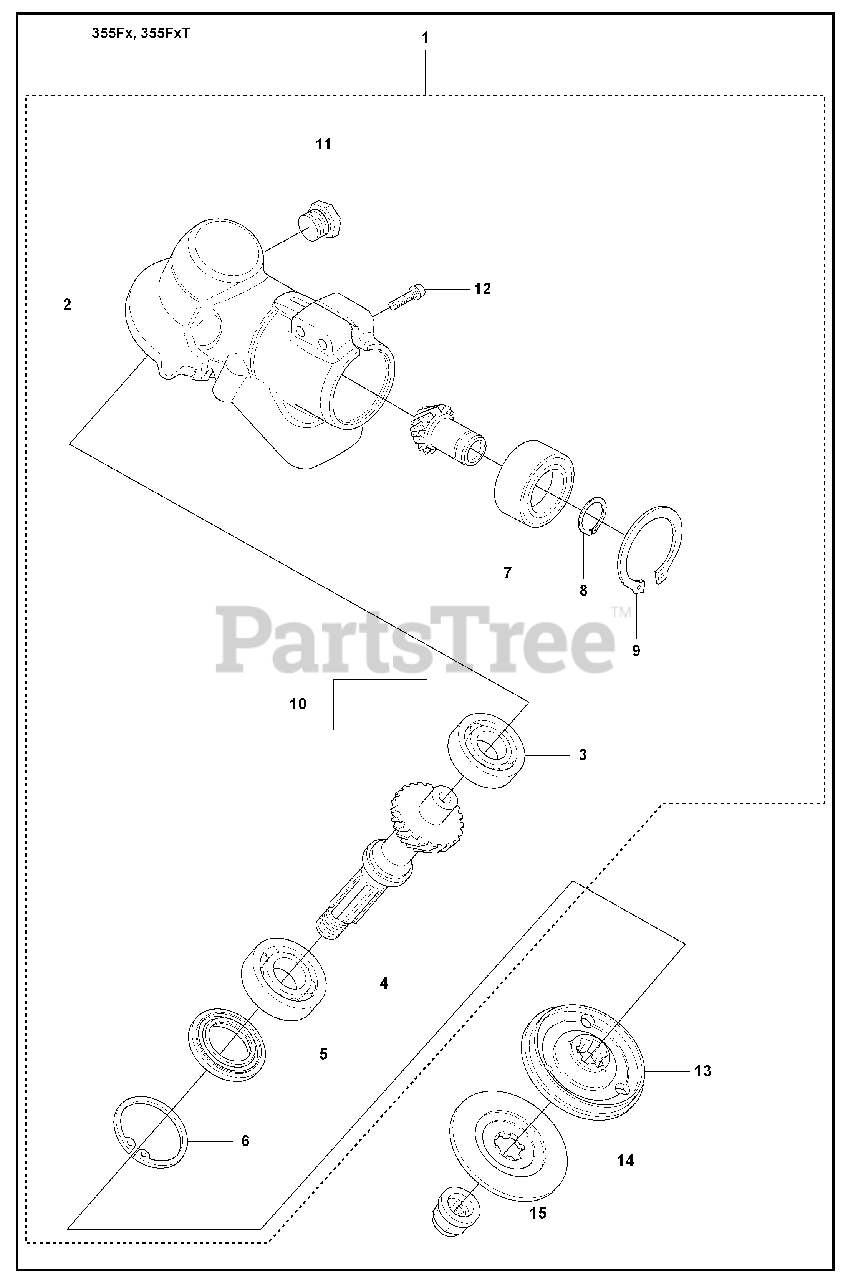

Gearbox/355Fx/Fxt Parts Diagram

  • Title

1

Husqvarna 537428202

RP BEVEL GEAR
(Superseded to 537428204)

Note: Incl. Pos. 2-12

$319.99

$

Usually ships in 3-10 days

0

2

Husqvarna 537428301

%GEAR HOUSING
(Superseded to 537428204)

$319.99

$

Usually ships in 3-10 days

0

3

Husqvarna 738210110

BALL BEARING

$24.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503250801

BALL BEARING

$24.99

$

In Stock, Qty 9

0

5

Husqvarna 544809201

SEALING

$

$

Not available

6

Husqvarna 735313310

RETAINING RING SGH 35

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 503251801

BEARING

$

$

Not available

8

Husqvarna 735311700

RETAINING RING SGA 15

$3.49

$

In Stock, Qty 7

0

9

Husqvarna 735313110

RETAINING RING

$4.99

$

In Stock, only 2 left!

0

10

Husqvarna 502434701

BEVEL GEAR
(Superseded to 537428204)

$319.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503201501

PLUG

$9.99

$

In Stock, only 1 left!

0

12

Husqvarna 725537265

SCREW

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 544197801

DRIVER

$37.99

$

Usually ships in 3-10 days

0

14

Husqvarna 544217801

SUPPORT FLANGE
(Superseded to 537343502)

$26.99

$

Usually ships in 3-10 days

0

15

Husqvarna 503227301

BLADE NUT
(Superseded to 502291101)

$7.99

$

Usually ships in 3-10 days

0
