355 - Cub Cadet 42" Blade Adapter Snowblade Adapter Kit Parts Diagram

42" Blade Adapter

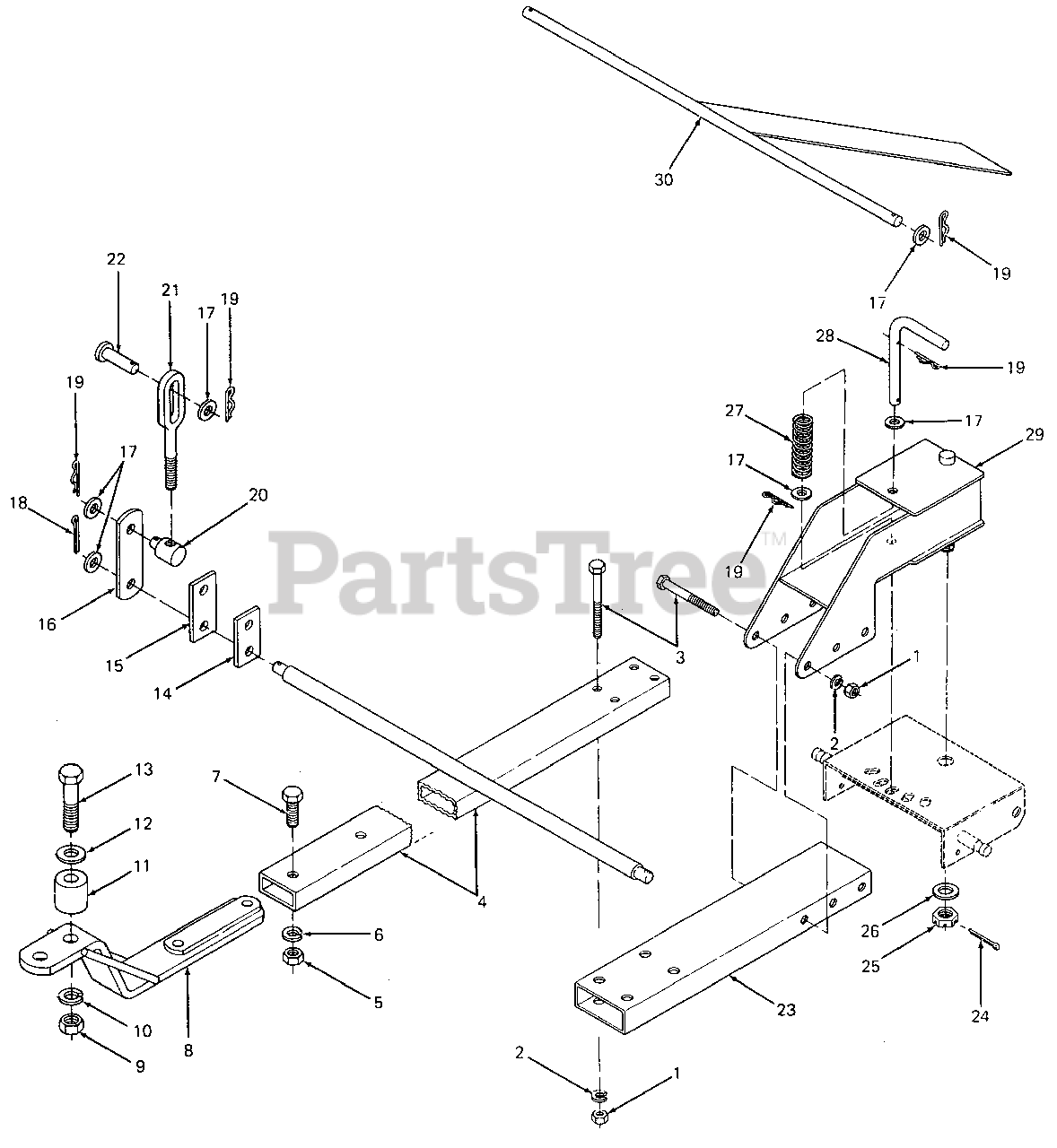

Snowblade Adapter Kit Parts Diagram

  • Title

1

Cub Cadet 712-0241

Nut, Hex, 3/8-24

$4.49

$

In Stock, Qty 13

0

2

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0902

Screw, Hex Cap, 3/8-24 X 3.75 Lg GR5

$7.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-1336A

Bracket, Lift

$

$

Not available

5

Cub Cadet 712-0461

Nut, Hex Jam, 1/2-13
(Superseded to 912-3048)

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 6

0

7

Cub Cadet 710-3181

Screw, Hex Cap, 1/2-13 X 1.5 Lg GR5

$6.99

$

In Stock, only 1 left!

0

8

Cub Cadet 703-1334

Bracket, Hanging

$

$

Not available

9

Cub Cadet 712-0221

Nut, Hex Insert Lock, 5/8-18

$

$

Not available

10

Cub Cadet 736-0158

Washer, Lock, 5/8

$4.49

$

In Stock, Qty 11

0

11

Cub Cadet 750-3051

Spacer, .65 X 1.5 X 1.5 Lg

$

$

Not available

12

Cub Cadet 736-0237

Washer, Flat, .64 X 1.25 X .100 Thk

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0923

Screw, Hex Cap, 5/8-18 X 3.0 Lg GR5

$9.99

$

In Stock, only 1 left!

0

14

Cub Cadet 703-1392

Link, Lift

Note: (1.0 between centers)

$

$

Not available

15

Cub Cadet 703-1335

Link, Lift

Note: (1.38 between centers)

$

$

Not available

16

Cub Cadet 703-1669

Link, Lift

Note: (2.0 between centers)

$24.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 736-0272

Washer, Flat, .510 X 1.0 X .060 Thk

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 714-0470

Pin, Cotter, 1/8 Dia X 1.25 Lg

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 714-0101

Pin, Internal Cotter

$4.99

$

In Stock, only 2 left!

0

20

Cub Cadet 711-3021

Ferrule, Adjustment, 1/2-20 Trd
(Superseded to 911-3021)

$34.99

$

In Stock, only 1 left!

0

21

Cub Cadet 719-3010

Link, Adjustment
(Superseded to 919-3010)

$

$

Not available

22

Cub Cadet 711-0332

Pin, Lift Bracket
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 17

0

23

Cub Cadet 703-1343

Tubing, Rectangular, 2 X 3 X 21.0 Lg

$

$

Not available

24

Cub Cadet 714-3021

Pin, Cotter, 1/8 Dia X 1-5/8 Lg
(Superseded to 914-3021)

$

$

Not available

25

Cub Cadet 712-3047

Nut, Hex Castle, 3/4-16 GR5
(Superseded to 712-0359)

$11.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 736-3023

Washer, Flat, .812 X 1.47 X .108 Thk
(Superseded to 736-0134)

$4.49

$

In Stock, Qty 10

0

27

Cub Cadet 732-3035

Spring, Compression
(Superseded to 932-3035)

$11.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 747-3105

Handle, Pivot Bracket

$

$

Not available

29

Cub Cadet 703-1338

Bracket, Pivot

$

$

Not available

30

Cub Cadet 703-1341

Plate, Guide

$

$

Not available
