355 (990614) - Simplicity Wonderboy 28" Rear-Engine Riding Mower Belts & Pulleys Group Parts Diagram

Wonderboy 28" Rear-Engine Riding Mower

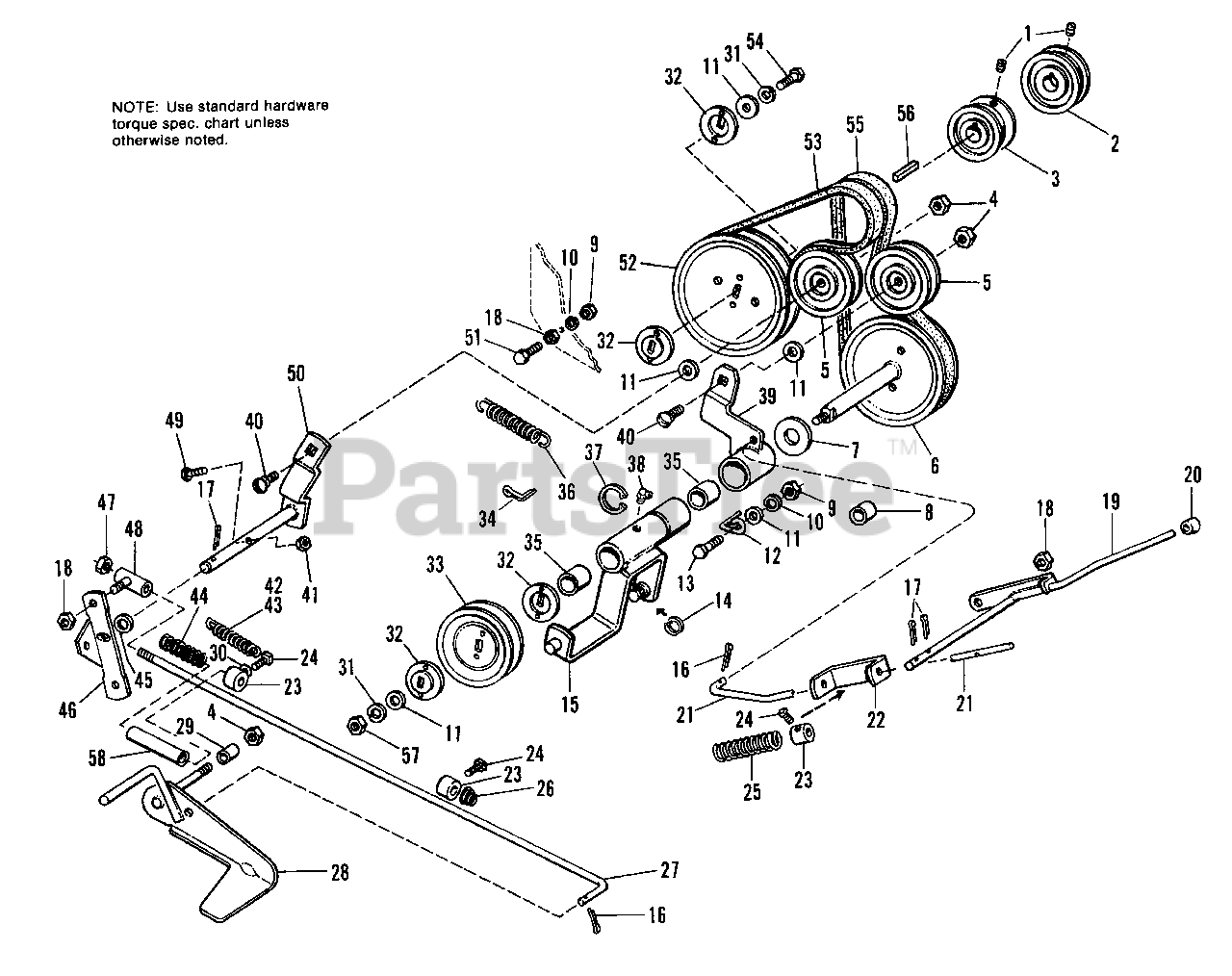

Belts & Pulleys Group Parts Diagram

  • Title

1

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

$

$

Not available

2

Simplicity 118331

PULLEY, Engine

$

$

Not available

3

Simplicity 158498

PULLEY, Drive

$

$

Not available

4

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

5

Simplicity 2154534SM

PULLEY, Idler

$32.99

$

Usually ships in 2-12 days

0

6

Simplicity 2158630

PULLEY & SHAFT ASSY

$

$

Not available

7

Simplicity 119018

WASHER

$

$

Not available

8

Simplicity 158398

SPACER

$

$

Not available

9

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18 (Qty. 1 on 990774, 990775)
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1917356SM

LOCKWASHER, 5/16 (Qty. 1 on 990774, 990775)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 2817642

WASHER, Plain, 5/16 (Qty. 1 on 990774, 990775)

$

$

Not available

12

Simplicity 8021014

STOP, Belt

Note: Used on Mfg. No. 990554 & 990614.

$

$

Not available

13

Simplicity 2823325

CAPSCREW, Hex Hd, 5/16-18 x 7/8

Note: Used on Mfg. No. 990554 & 990614.

$

$

Not available

14

Simplicity 2158399SM

RING, Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

15

Simplicity 158632

HOUSING ASSY

$

$

Not available

16

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

17

Simplicity 2818452

PIN, Cotter, 1/8 x 1

$

$

Not available

18

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

19

Simplicity 158603

HANDLE ASSY, P.T.O. Control

$

$

Not available

20

Simplicity 158437

KNOB

$

$

Not available

21

Simplicity 158609

ROD, Clutch

$

$

Not available

22

Simplicity 2158406

GUIDE ASSY, Rod

$

$

Not available

23

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

24

Simplicity 2828804

SETSCREW, 1/4-20 x 3/8

$

$

Not available

25

Simplicity 2163103SM

SPRING

$8.49

$

Usually ships in 2-12 days

0

26

Simplicity 2153010SM

SPRING, Conical

$8.99

$

Usually ships in 2-12 days

0

27

Simplicity 158575

ROD, Clutch

$

$

Not available

28

Simplicity 158604

PEDAL ASSY, Foot

$

$

Not available

29

Simplicity 2158388

SPACER

$

$

Not available

30

Simplicity 2816955

WASHER, Plain, 3/16

$

$

Not available

31

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

32

Simplicity 2158378SM

WASHER, Special

$

$

Not available

33

Simplicity 2158400

PULLEY Mower Drive

$

$

Not available

34

Simplicity 158646

PIN, Cotter

Note: Used on Mfg. No. 990554 & 990614.

$

$

Not available

35

Simplicity 2108054

BEARING, Needle

$

$

Not available

36

Simplicity 2154369SM

SPRING

$17.99

$

In Stock, Qty 8

0

37

Simplicity 158396

RING, Retaining

$

$

Not available

38

Simplicity 2815019SM

FITTING, Grease

$4.49

$

In Stock, only 2 left!

0

39

Simplicity 158461

LEVER ASSY, Idler

$

$

Not available

40

Simplicity 2822249

BOLT, Carriage, 3/8-16 x 1

$

$

Not available

41

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

42

Simplicity 2156302

SPRING
(Superseded to 2156302SM)

Note: Used on Mfg. No. 990554 & 990614.

$6.49

$

In Stock, Qty 20+

0

43

Simplicity 2159159SM

SPRING

Note: Used on Mfg. No. 99077 & 990775.

$37.99

$

In Stock, only 1 left!

0

44

Simplicity 2157041SM

SPRING, Compression

$15.99

$

Usually ships in 2-12 days

0

45

Simplicity 2818430

WASHER, Plain, 7/16

$

$

Not available

46

Simplicity 158536

LEVER

$

$

Not available

47

Simplicity 2824433

NUT, Elastic Stop, 5/16-18

$

$

Not available

48

Simplicity 156303

GUIDE ASSY, Rod

$

$

Not available

49

Simplicity 2821960

CAPSCREW, Hex Hd, 1/4-20 x 1

$

$

Not available

50

Simplicity 158537

ARM ASSY, Idler Pulley

$

$

Not available

51

Simplicity 2821221

CAPSCREW, Hex Hd, 5/16-18 x 1-1/2

$

$

Not available

52

Simplicity 2158377SM

PULLEY, Transmission

$

$

Not available

53

Simplicity 2158573SM

BELT, V

$20.99

$

Usually ships in 2-12 days

0

54

Simplicity 2823325

CAPSCREW, Hex Hd, 5/16-18 x 7/8

$

$

Not available

55

Simplicity 2121398SM

BELT, V

$17.99

$

Usually ships in 2-12 days

0

56

Simplicity 1729279SM

KEY
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

57

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

58

Simplicity 172179

SPACER

Note: Used on Mfg. No. 99077 & 990775.

$

$

Not available
