355 (990556) - Simplicity Wonderboy Rear-Engine Riding Mower 28" Mower Housing & Arbor Group Parts Diagram

Wonderboy Rear-Engine Riding Mower

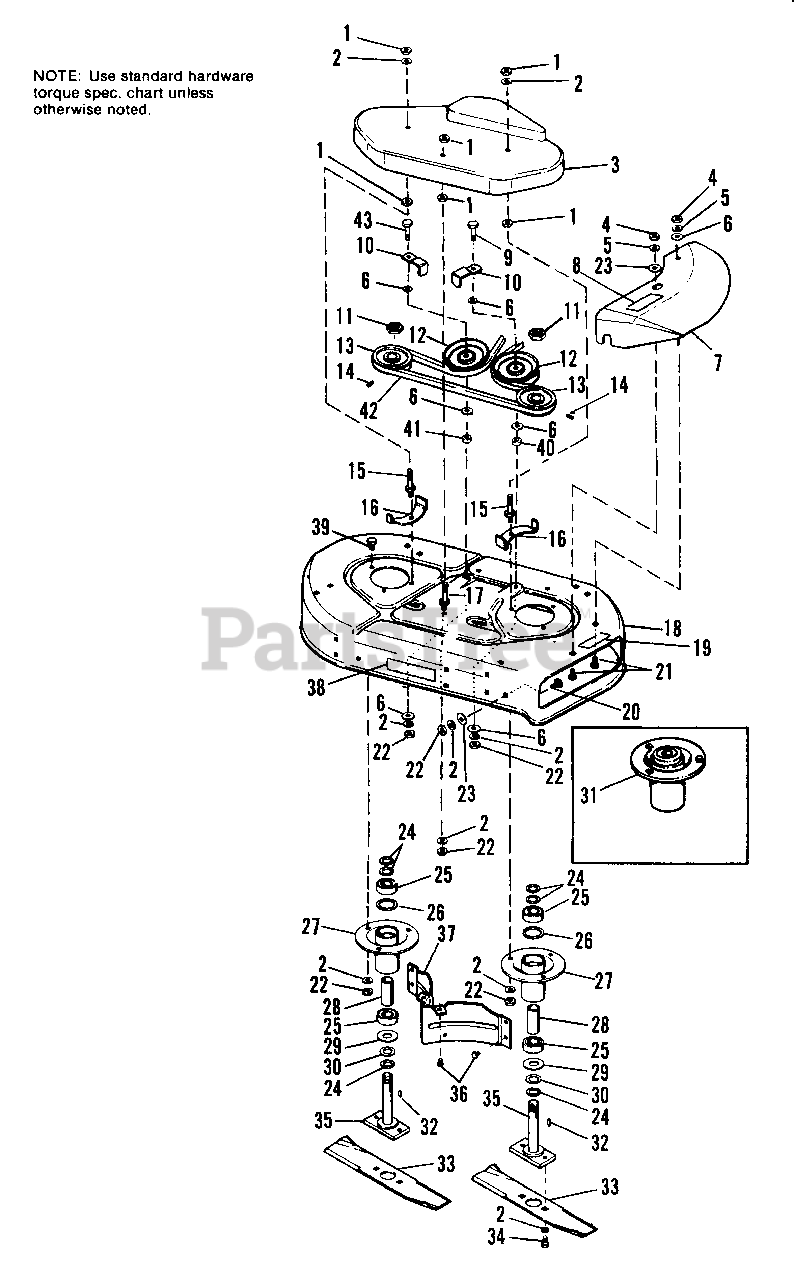

28" Mower Housing & Arbor Group Parts Diagram

  • Title

1

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

2

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

3

Simplicity 170160

COVER, Housing

$

$

Not available

4

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

7

Simplicity 108504

DEFLECTOR

$

$

Not available

8

Simplicity 103031

DECAL, Safety

$

$

Not available

9

Simplicity 2823701

CAPSCREW, Hex Hd., 3/8-16 x 2

$

$

Not available

10

Simplicity 2106717

GUIDE, Belt

$

$

Not available

11

Simplicity 2822133

LOCKNUT, Jam, 3/4-16

$

$

Not available

12

Simplicity 2106716

PULLEY, Idler

$

$

Not available

13

Simplicity 2177005SM

ULLEY

$48.99

$

In Stock, only 1 left!

0

14

Simplicity 2830544

SETSCREW, 5/16-18 x 3/8

$

$

Not available

15

Simplicity 106771

STUD

$

$

Not available

16

Simplicity 170163

GUIDE, Belt

$

$

Not available

17

Simplicity 2108372SM

STUD

$46.99

$

Usually ships in 2-12 days

0

18

Simplicity 158614

HOUSING, Mower

$

$

Not available

19

Simplicity 2108507

FILM, Safety

$

$

Not available

20

Simplicity 2820562

BOLT, Carriage, 3/8-16 x 3/4

$

$

Not available

21

Simplicity 2822110

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

22

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

23

Simplicity 1924356SM

WASHER, Special
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

24

Simplicity 2108181

WASHER

$

$

Not available

25

Simplicity 2108202SM

BEARING, Roller

$11.99

$

In Stock, Qty 20+

0

26

Simplicity 2108134

RING, Backing

$

$

Not available

27

Simplicity 2108679

TUBE ASSY., Arbor

$

$

Not available

28

Snapper 2108201SM

SPACER

$19.99

$

In Stock, only 1 left!

0

29

Simplicity 2108257SM

WASHER

$6.99

$

In Stock, only 2 left!

0

30

Simplicity 2108472

WASHER

$

$

Not available

31

Simplicity 2108822

TUBE ASSY., Arbor W/Bearings

$

$

Not available

32

Simplicity 2818312SM

KEY, Woodruff, #61
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

33

Simplicity 2108298

BLADE, Knife

$

$

Not available

34

Simplicity 2822586SM

CAPSCREW, Hex Hd., 3/8-16 x 5/8

$2.99

$

In Stock, Qty 5

0

35

Simplicity 2108250SM

ARBOR ASSY.

$115.99

$

Usually ships in 2-12 days

0

36

Simplicity 2827428

SCREW, Hex, Self Tapping, 1/4-20 x 3/8

$

$

Not available

37

Simplicity 108531

BAFFLE

$

$

Not available

38

Simplicity 155061

DECAL, Simplicity

$

$

Not available

39

Simplicity 2821965

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

40

Simplicity 159029

SPACER

$

$

Not available

41

Simplicity 2158227SM

SPACER

$32.99

$

In Stock, only 1 left!

0

42

Simplicity 2170164SM

BELT, V, Drive

$40.99

$

Usually ships in 2-12 days

0

43

Simplicity 2821971

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4

$

$

Not available
