355 (195-355-100) - Cub Cadet Blade Adapter (1985) Snow Blade Adapter Kit Parts Diagram

Blade Adapter

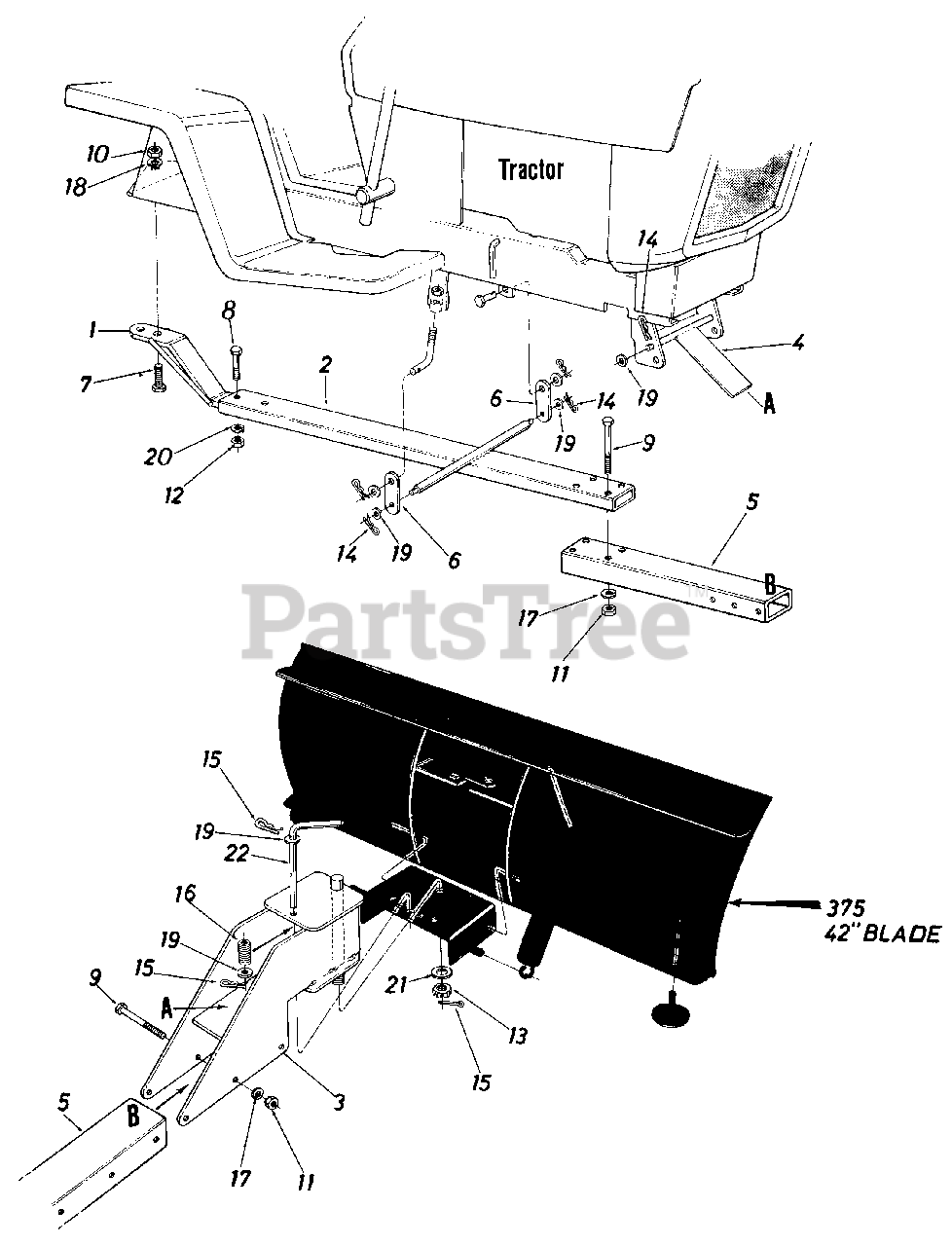

Snow Blade Adapter Kit Parts Diagram

  • Title

1

Cub Cadet 703-1334

Hanging Bracket Ass'y.

$

$

Not available

2

Cub Cadet 703-1336

Lift Shaft Ass'y.

$

$

Not available

3

Cub Cadet 703-1338

Pivot Bracket Ass'y.

$

$

Not available

4

Cub Cadet 703-1341

Guide Plate Ass'y.

$

$

Not available

5

Cub Cadet 703-1343

Rectangular Tubing

$

$

Not available

6

Cub Cadet 703-1335

Lift Linkage

$

$

Not available

7

Cub Cadet 710-0312

Hex Bolt 5/8-18 x 1.31 " Lg.

$

$

Not available

8

Cub Cadet 710-0769

Hex Bolt 1/2-20 x 1.50" Lg.*

$

$

Currently unavailable

9

Cub Cadet 710-0902

Hex Bolt3/8-24 x 3.75" Lg.*

$7.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-0221

Hex Ins. L.-Nut 5/8-18 Thd.

$

$

Not available

11

Cub Cadet 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

12

Cub Cadet 712-0461

Hex Jam Nut 1/2-13 Thd.
(Superseded to 912-3048)

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3047

Castle Nut 3/4-16 Thd. (Grade 5)
(Superseded to 712-0359)

$11.99

$

In Stock, only 1 left!

0

14

Cub Cadet 714-0101

Inter Cot. Pin 1/2" Dia.

$4.99

$

In Stock, only 1 left!

0

15

Cub Cadet 714-0162

Cotter Pin 5/32 x 1.25" Lg.*

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 732-3035

Compression Spring
(Superseded to 932-3035)

$11.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 736-0169

L.-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0237

Fl.-Wash..64" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0272

Fl.-Wash. .510" I.D. x 1.0" O.D.

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0921

L.-Wash. 1/2" I.D.*

$4.49

$

In Stock, only 2 left!

0

21

Cub Cadet 736-3023

Fl.-Wash .812" I.D. x 1.469" O.D.
(Superseded to 736-0134)

$4.49

$

In Stock, Qty 10

0

22

Cub Cadet 747-3105

Handle Pivot Brkt.

$

$

Not available
