353 - Husqvarna Chainsaw (2011-01) CRANKCASE Parts Diagram

Chainsaw

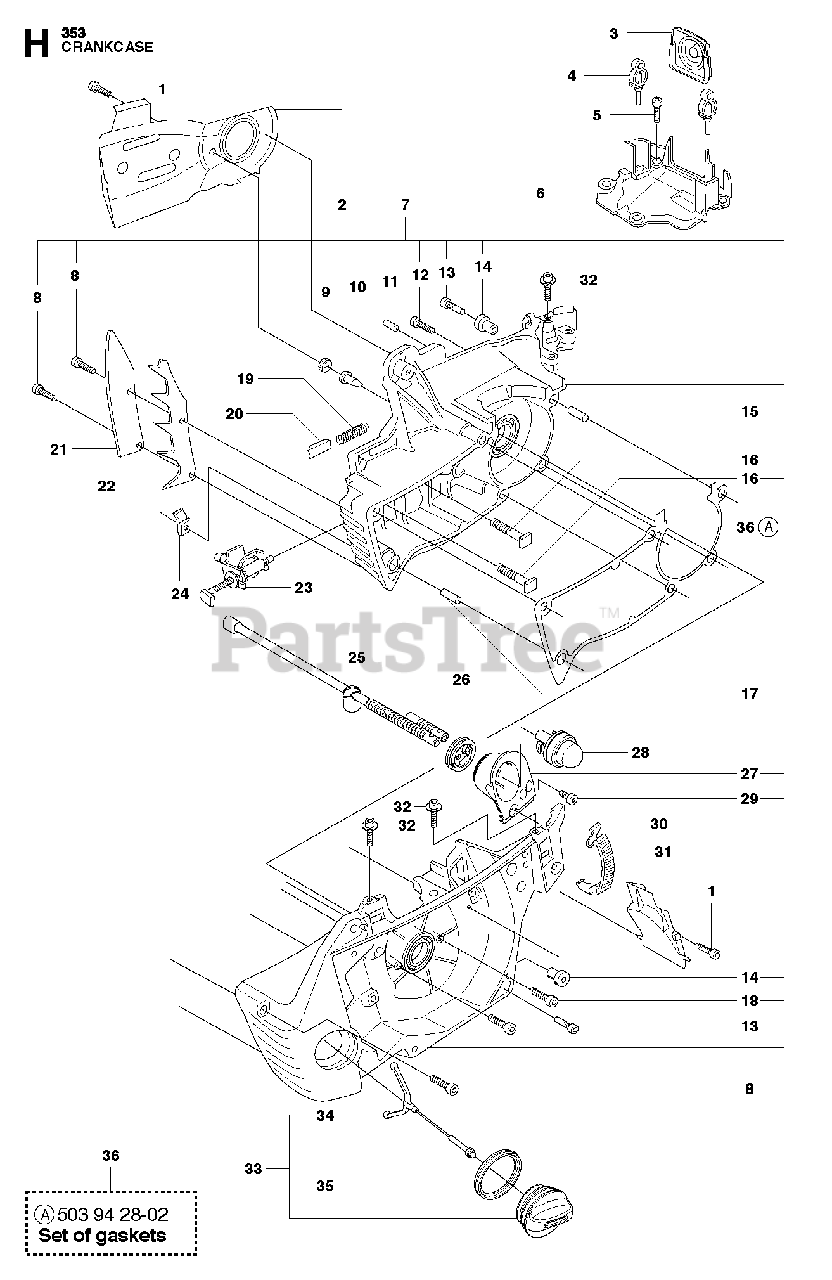

CRANKCASE Parts Diagram

  • Title

$3.49

$

In Stock, Qty 7

0

2

Husqvarna 537405601

CHAIN GUIDE PLATE

Note: . 7

$12.99

$

Usually ships in 3-10 days

0

$14.99

$

Usually ships in 3-10 days

0

$8.49

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 2 left!

0

6

Husqvarna 544360701

CARBURETOR AREA BASE

$11.99

$

Usually ships in 3-10 days

0

7

Husqvarna 537171905

CRANKCASE ASSY

$261.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503200776

SCREW

Note: . 7

$7.49

$

In Stock, only 2 left!

0

9

Husqvarna 537403501

PLUG
(Superseded to 537403502)

Note: . 7

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

Note: . 7

$5.99

$

In Stock, only 4 left!

0

11

Husqvarna 721120730

PIN

Note: . 7

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 503200870

SCREW

Note: . 7

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 503215101

SCREW

Note: . 7

$7.49

$

In Stock, only 4 left!

0

14

Husqvarna 503869201

MOVEMENT LIMITER

Note: . 7

$9.99

$

In Stock, only 2 left!

0

15

Husqvarna 503905601

SLEEVE

Note: . 7

$

$

Not available

16

Husqvarna 503875401

BOLT

Note: . 7

$9.99

$

In Stock, Qty 8

0

17

Husqvarna 503905601

SLEEVE

Note: . 7

$

$

Not available

18

Husqvarna 503202516

SCREW

Note: . 7

$3.49

$

In Stock, only 2 left!

0

19

Husqvarna 503436501

LOCK SPRING

$7.49

$

In Stock, only 3 left!

0

$9.99

$

In Stock, Qty 8

0

$9.99

$

Usually ships in 3-10 days

0

22

Husqvarna 503905901

FELLING DOG

$10.99

$

Usually ships in 3-10 days

0

23

Husqvarna 537071201

CHAIN TENSIONER

Note: . 23

$47.99

$

Usually ships in 3-10 days

0

24

Husqvarna 503886301

CHAIN CATCHER

$10.99

$

In Stock, only 1 left!

0

$

$

Not available

$

$

Not available

27

Husqvarna 504071503

BRACKET

Note: . 7

$

$

Not available

28

Husqvarna 503936601

AIR PURGE BUBBLE

$21.99

$

In Stock, Qty 20+

0

29

Husqvarna 544449701

SCREW IHSCT

Note: . 7

$7.49

$

In Stock, only 2 left!

0

30

Husqvarna 503894701

BUCKLE ORANGE

Note: orange 353

$14.99

$

Usually ships in 3-10 days

0

31

$6.99

$

In Stock, only 1 left!

0

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 537281502

OIL TANK CAP GREY

$13.99

$

In Stock, only 2 left!

0

34

Husqvarna 503578901

TANK LOCK

Note: . 33

$9.99

$

In Stock, Qty 15

0

35

Husqvarna 501626801

OILCAP GASKET

Note: . 33

$7.49

$

In Stock, only 1 left!

0

36

Husqvarna 503942802

GASKET SET

Note: A Set of gaskets

$14.99

$

In Stock, only 1 left!

0
