353 - Husqvarna Chainsaw (2011-01) CARBURETOR DETAILS Parts Diagram

Chainsaw

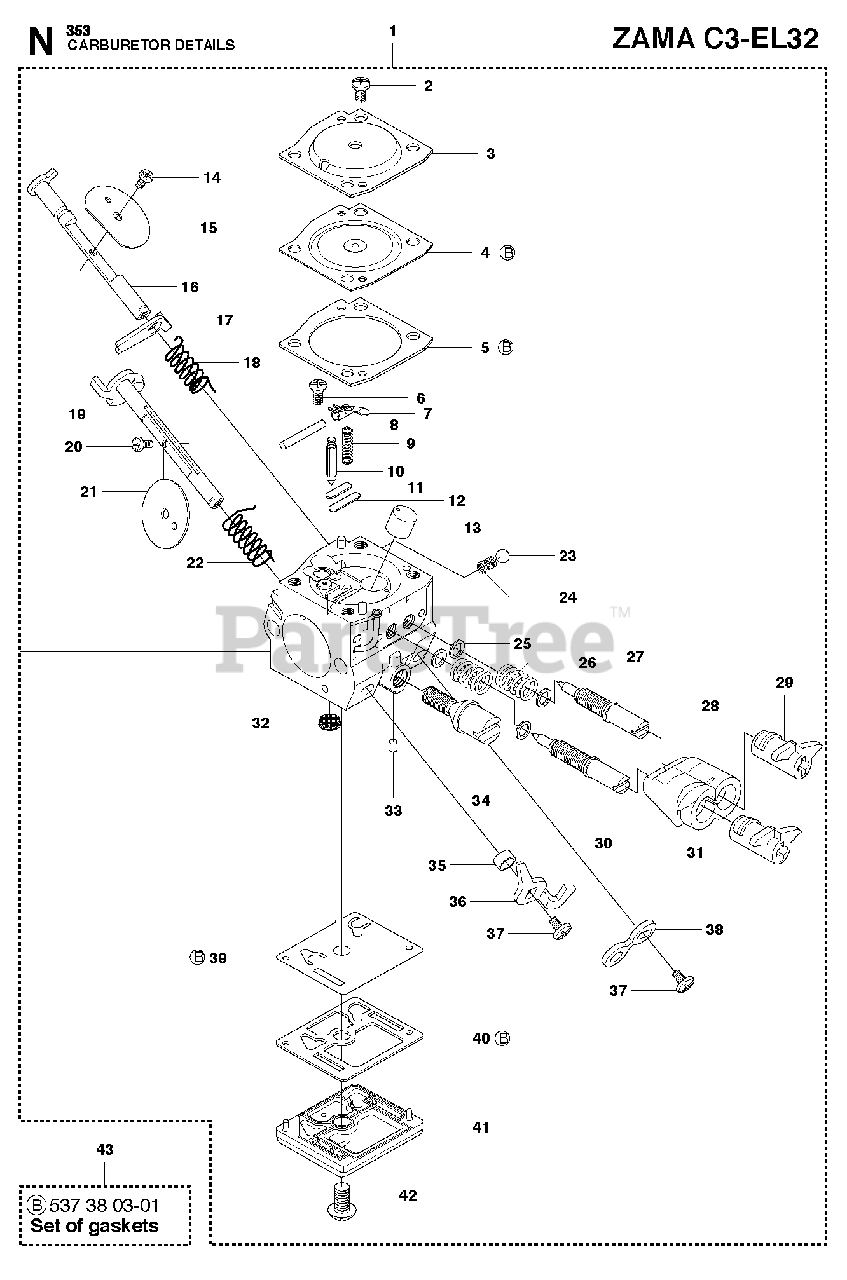

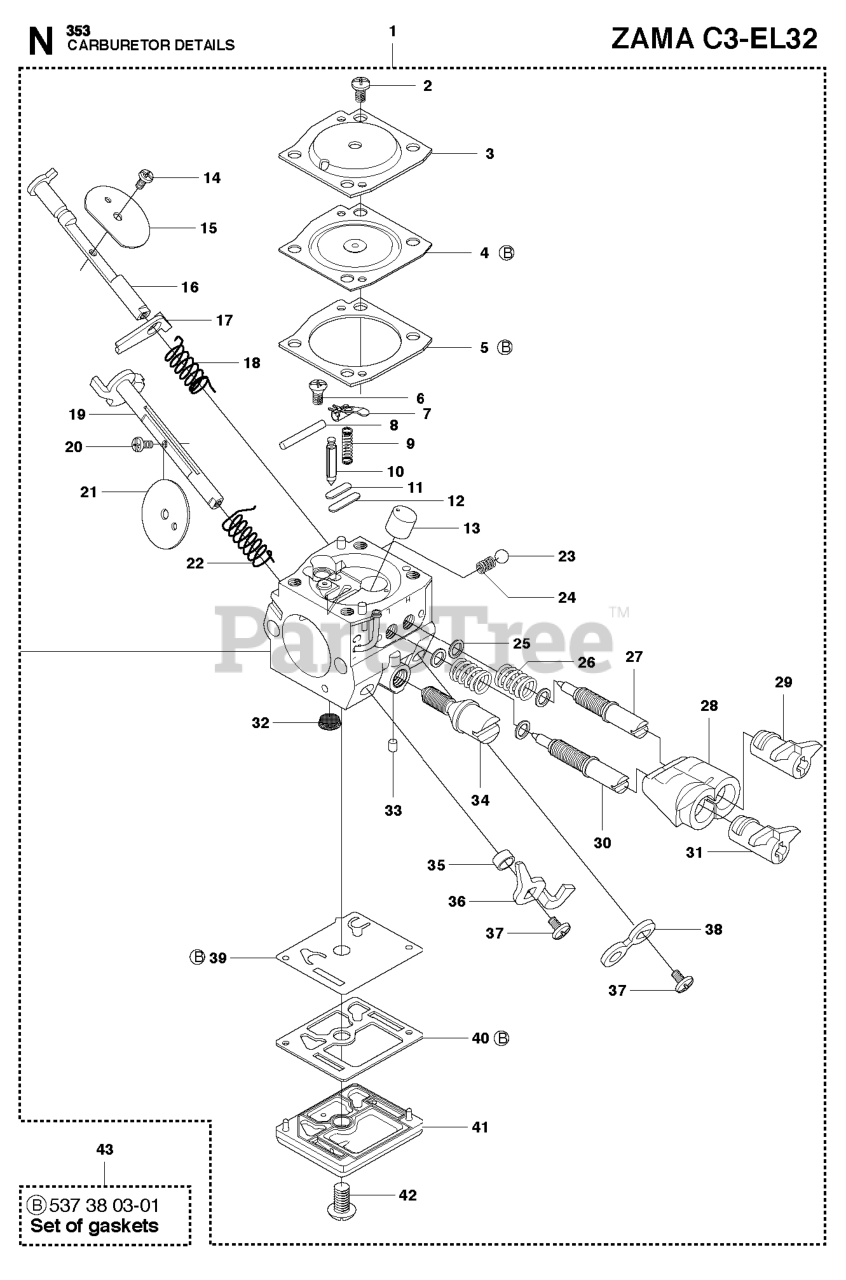

CARBURETOR DETAILS Parts Diagram

  • Title

1

Husqvarna 503283210

CARBURETOR

$84.99

$

Usually ships in 3-10 days

0

2

Husqvarna 503480501

SCREW

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 537176001

COVER

Note: . 1

$8.99

$

Usually ships in 3-10 days

0

4

Husqvarna 537175901

DIAPHRAGM

Note: . 1 43

$24.99

$

In Stock, only 4 left!

0

5

Husqvarna 503884401

Gasket

Note: . 1 43

$

$

Not available

6

Husqvarna 503480101

SCREW

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 537176401

LEVER

Note: . 1

$7.99

$

In Stock, only 3 left!

0

8

Husqvarna 503480001

PIN FULCRUM
(Superseded to 537020801)

Note: . 1

$3.49

$

In Stock, only 1 left!

0

9

Husqvarna 537176301

SPRING

Note: . 1

$6.49

$

In Stock, only 1 left!

0

10

Husqvarna 537176201

VALVE

Note: . 1

$27.99

$

In Stock, only 1 left!

0

11

Husqvarna 537177801

PLUG

Note: . 1

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 503535601

PLUG

Note: . 1

$7.49

$

In Stock, Qty 6

0

13

Husqvarna 537416101

JET

Note: . 1

$24.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503523601

SCREW

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 544056601

CHOKE FLAP

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 537266701

CHOKE SHAFT

Note: . 1

$27.99

$

Usually ships in 3-10 days

0

17

Husqvarna 544056701

THROTTLE LOCK

Note: . 1

$8.07

$

Usually ships in 3-10 days

0

18

Husqvarna 537176601

SPRING

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 537266301

THROTTLE SHAFT

Note: . 1

$42.99

$

Usually ships in 3-10 days

0

20

Husqvarna 503481801

SCREW

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 537266601

THROTTLE FLAP

Note: . 1

$11.99

$

Usually ships in 3-10 days

0

22

Husqvarna 537176101

SPRING

Note: . 1

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 537012501

BALL

Note: . 1

$3.99

$

In Stock, Qty 6

0

24

Husqvarna 537012601

SPRING

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 503903101

WASHER

Note: . 1

$

$

Not available

26

Husqvarna 503480801

SPRING
(Superseded to 503994301)

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 537178501

JET

Note: . 1

$14.99

$

Usually ships in 3-10 days

0

28

Husqvarna 503903401

SLEEVE

Note: . 1

$8.49

$

Usually ships in 3-10 days

0

29

Husqvarna 503903301

LIMITER CAP

Note: . 1

$4.99

$

In Stock, only 1 left!

0

30

Husqvarna 537267001

LOW SPEED NEEDLE

Note: . 1

$30.99

$

Usually ships in 3-10 days

0

31

Husqvarna 503903201

LIMITER CAP

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 503535701

STRAINER

Note: . 1

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 503481101

PLUG

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

34

Husqvarna 537177601

IDLE SCREW

Note: . 1

$13.99

$

In Stock, only 4 left!

0

35

Husqvarna 503481901

BUSHING

Note: . 1

$6.99

$

In Stock, only 4 left!

0

36

Husqvarna 537176901

LEVER

Note: . 1

$

$

Not available

37

Husqvarna 503479001

SCREW

Note: . 1

$3.99

$

In Stock, Qty 8

0

38

Husqvarna 537177501

LEVER

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

39

Husqvarna 537380201

PUMP DIAPHRAGM

Note: . 1 43

$24.99

$

In Stock, only 2 left!

0

40

Husqvarna 503616601

GASKET

Note: . 1 43

$5.49

$

In Stock, Qty 6

0

41

Husqvarna 537176801

COVER

Note: . 1

$

$

Not available

42

Husqvarna 503479601

SCREW

Note: . 1

$3.99

$

In Stock, Qty 5

0

43

Husqvarna 537380301

GASKET SET

Note: B Set of gaskets

$34.99

$

Usually ships in 3-10 days

0
