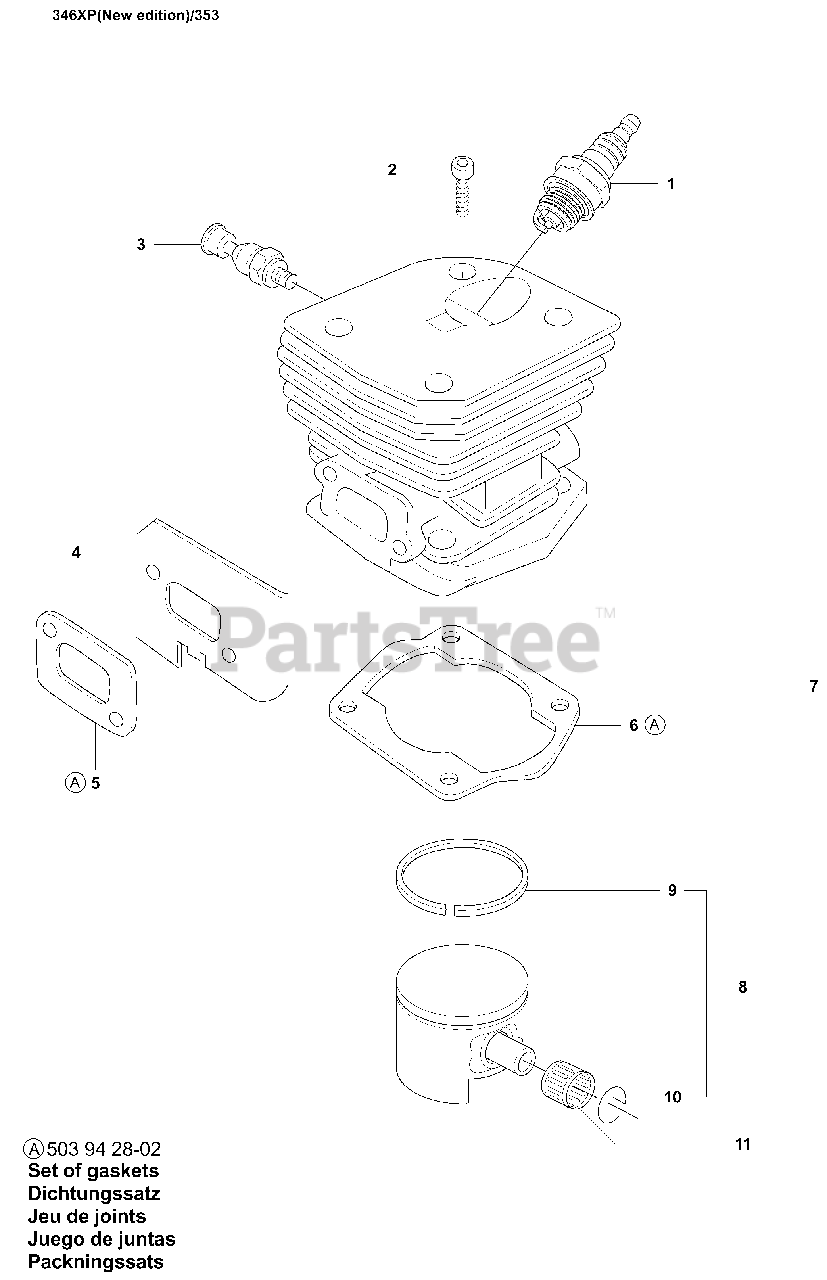

353 - Husqvarna Chainsaw (2007-08) Cylinder Parts Diagram

Chainsaw

Cylinder Parts Diagram

  • Title

1

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 503235111)

$3.49

$

In Stock, Qty 20+

0

2

Husqvarna 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 19

0

3

Husqvarna 503665401

DECOMPRESSION VALVE
(Superseded to 544200001)

$66.99

$

In Stock, only 2 left!

0

4

Husqvarna 503971301

GUARD

$12.99

$

In Stock, only 1 left!

0

5

Husqvarna 503862501

GASKET

Note: A

$7.49

$

In Stock, Qty 8

0

6

Husqvarna 503894401

GASKET

Note: A

$8.99

$

In Stock, only 1 left!

0

7

Husqvarna 537253102

PISTON CYLINDER KIT 353
(Superseded to 537253104)

Note: 353

$227.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544142903

%CYLINDER
(Superseded to 544142907)

Note: 346XP

$170.99

$

Usually ships in 3-10 days

0

7

Husqvarna 544142904

%CYLINDER
(Superseded to 544142908)

Note: 346XP dk

$205.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503869872

Note: 346XP Japan 45cc, 42 mm

$

$

Currently unavailable

8

Husqvarna 537223602

PISTON
(Superseded to 537223604)

$157.99

$

Usually ships in 3-10 days

0

8

Husqvarna 544143102

%PISTON
(Superseded to 525470102)

$125.99

$

Usually ships in 3-10 days

0

8

Husqvarna 544143102

%PISTON
(Superseded to 525470102)

$125.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503907371

PISTON ASSY

$102.99

$

Usually ships in 3-10 days

0

9

Husqvarna 503289011

%PISTON RING
(Superseded to 544435001)

$31.99

$

In Stock, only 2 left!

0

9

Husqvarna 503289056

PISTON RING
(Superseded to 544807601)

$29.99

$

Usually ships in 3-10 days

0

9

Husqvarna 503289005

PISTON RING

$31.99

$

In Stock, only 3 left!

0

10

Husqvarna 737441000

LOCKING RING

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 737441000

LOCKING RING

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 737441000

LOCKING RING

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 501451601

SUPPORT BUSHING

$24.99

$

In Stock, only 1 left!

0

11

Husqvarna 501451601

SUPPORT BUSHING

$24.99

$

In Stock, only 1 left!

0

A

Husqvarna 503942802

GASKET SET

Note: Set of gaskets

$14.99

$

In Stock, only 1 left!

0
