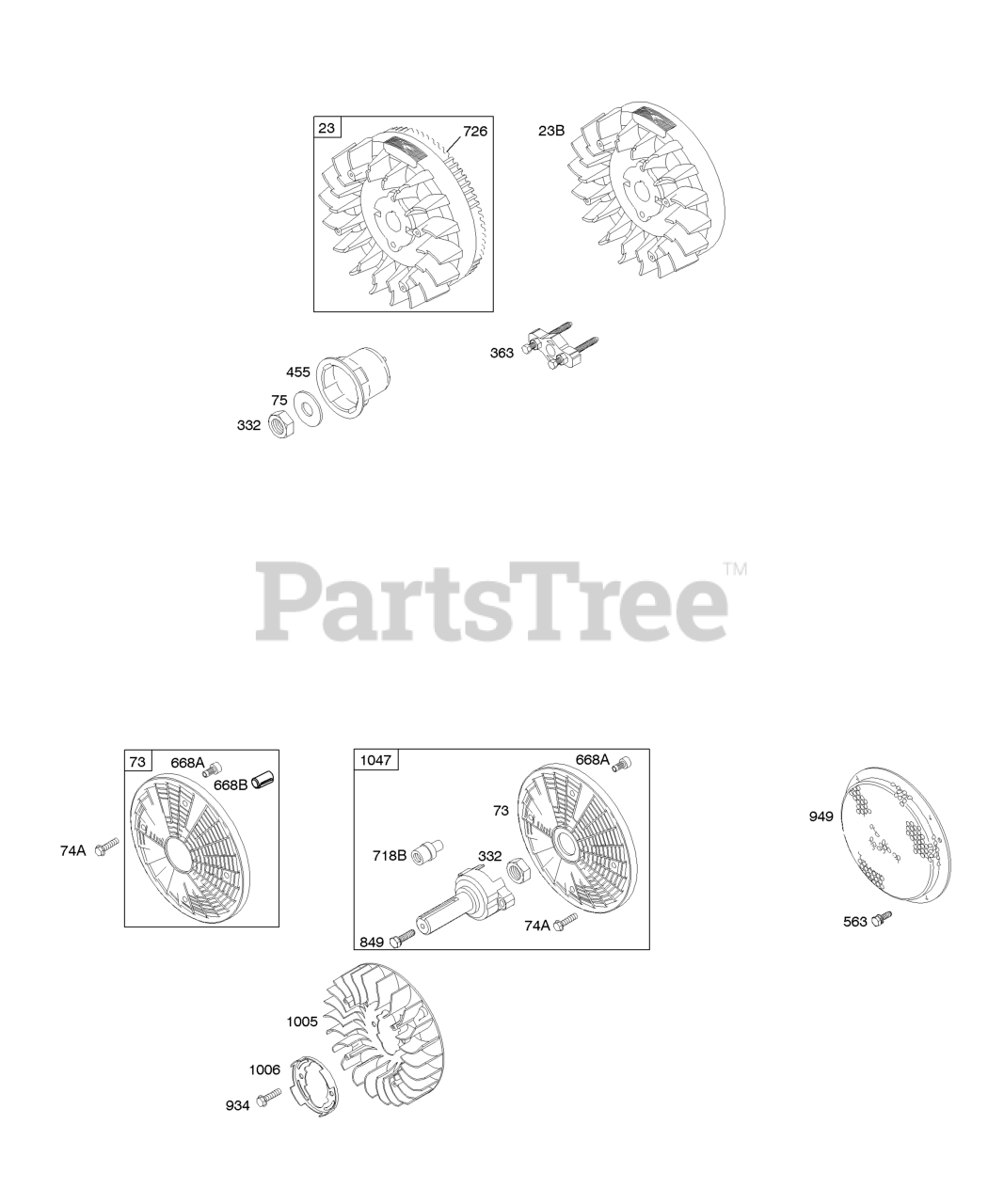

351447-0181-01 - Briggs & Stratton Horizontal Engine Flywheel Parts Diagram

Horizontal Engine

Flywheel Parts Diagram

  • Title

23

Briggs & Stratton 808768

Flywheel

Note: (Steel Ring Gear)

$

$

Not available

73

Briggs & Stratton 494439

SCREEN, Rotating

Note: (8 9/32" Diameter)

$53.99

$

In Stock, Qty 10

0

74A

Briggs & Stratton 691647

Screw

Note: (Rotating Screen)

$3.99

$

In Stock, only 4 left!

0

75

Briggs & Stratton 691490

Washer

Note: (Flywheel)

$3.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 690887

Nut

Note: (Flywheel)

$5.49

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 690864

Cup-Flywheel

$32.99

$

Usually ships in 2-12 days

0

563

Briggs & Stratton 691982

Screw

Note: (Debris Screen Guard)

$3.99

$

In Stock, only 4 left!

0

668A

Briggs & Stratton 691500

SPACER

$7.49

$

Usually ships in 2-12 days

0

668B

Briggs & Stratton 691215

SPACER

$7.49

$

In Stock, only 1 left!

0

718B

Briggs & Stratton 690740

Pin-Locating

$19.99

$

Usually ships in 2-12 days

0

726

Gear-Ring

Note: (Steel)(See Reference 23 for Service)

$

$

Not available

849

Briggs & Stratton 691088

Screw

Note: (Stub Shaft)

$3.99

$

Usually ships in 2-12 days

0

934

Briggs & Stratton 691058

Screw

Note: (Fan Retainer)

$5.99

$

In Stock, Qty 11

0

949

Briggs & Stratton 690475

Guard-Debris Screen

$

$

Not available

1005

Briggs & Stratton 690911

Fan-Flywheel
(Superseded to 843977)

Note: Used Before Code Date 00102600

$

$

Not available

1005

Briggs & Stratton 809441

Fan-Flywheel

Note: Used After Code Date 00102500

$

$

Not available

1006

Briggs & Stratton 690452

Retainer-Fan

$10.99

$

Usually ships in 2-12 days

0

1047

Briggs & Stratton 841580

Shaft-Stub

$278.99

$

Usually ships in 2-12 days

0
