351447-0181-01 - Briggs & Stratton Horizontal Engine Exhaust System Parts Diagram

Horizontal Engine

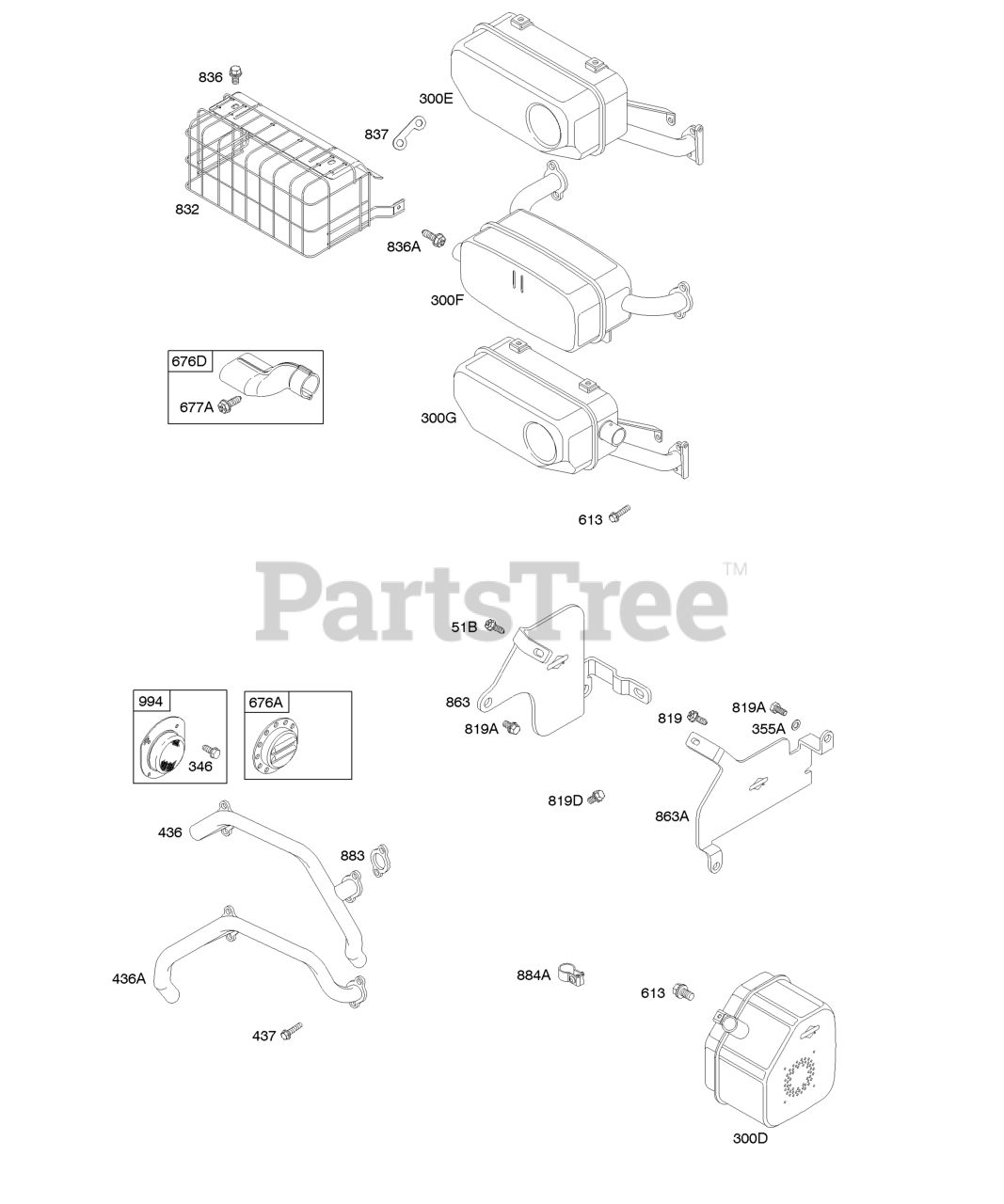

Exhaust System Parts Diagram

  • Title

51B

Briggs & Stratton 690950

GASKET, Intake

Note: (Manifold To Carburetor)

$2.99

$

In Stock, Qty 15

0

300D

Briggs & Stratton 692099

Muffler

Note: (Lo Mount)(Starter Motor Side Or Oil Filter Side)

$184.99

$

Usually ships in 2-12 days

0

300E

Briggs & Stratton 690906

Muffler

Note: (Hi Mount)(Starter Side Exit)

$268.99

$

Usually ships in 2-12 days

0

300F

Briggs & Stratton 690931

Muffler

Note: (Hi Mount)(Starter Side Exit)

$315.99

$

Usually ships in 2-12 days

0

300G

Briggs & Stratton 691562

Muffler

Note: (Hi Mount)(Oil Filter Side Exit)

$274.99

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 690661

SCREW

Note: (Spark Arrestor)

$3.49

$

In Stock, Qty 8

0

355A

Briggs & Stratton 690944

Washer

Note: (Muffler Bracket)

$5.99

$

Usually ships in 2-12 days

0

436

Briggs & Stratton 692061

Manifold-Exhaust

Note: (Lo Mount)(Oil Filter Side)

$149.99

$

Usually ships in 2-12 days

0

436A

Briggs & Stratton 691499

Manifold-Exhaust

Note: (Lo Mount)(Starter Motor Side)

$152.99

$

Usually ships in 2-12 days

0

437

Briggs & Stratton 691902

Screw

Note: (Exhaust Manifold)

$3.49

$

In Stock, only 4 left!

0

613

Briggs & Stratton 692067

SCREW

Note: (Muffler)

$3.99

$

In Stock, Qty 9

0

676A

Briggs & Stratton 397630

Deflector-Muffler
(Superseded to 795038)

Note: (Louvered)

$15.99

$

Usually ships in 2-12 days

0

676D

Briggs & Stratton 808394

Deflector-Muffler

Note: (Elbow)

$45.99

$

Usually ships in 2-12 days

0

677A

Briggs & Stratton 690688

Screw

Note: (Muffler Deflector)

$3.49

$

Usually ships in 2-12 days

0

819

Briggs & Stratton 690943

Screw

Note: (Muffler Bracket)

$3.49

$

Usually ships in 2-12 days

0

819A

Briggs & Stratton 692067

SCREW

Note: (Muffler Bracket)

$3.99

$

In Stock, Qty 9

0

819D

Briggs & Stratton 692056

Screw

Note: (Muffler Bracket)

$5.99

$

In Stock, Qty 5

0

832

Briggs & Stratton 691571

Guard-Muffler

$103.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 691514

Screw

Note: (Muffler Guard)

$4.99

$

Usually ships in 2-12 days

0

836A

Briggs & Stratton 692067

SCREW

Note: (Muffler Guard)

$3.99

$

In Stock, Qty 9

0

837

Briggs & Stratton 808085

Spacer-Muffler

Note: (Includes 2)

$18.99

$

Usually ships in 2-12 days

0

863

Briggs & Stratton 691513

Bracket-Muffler

Note: (Lo Mount)(Oil Filter Side)

$55.99

$

Usually ships in 2-12 days

0

863A

Briggs & Stratton 690756

Bracket-Muffler

Note: (Lo Mount)(Starter Motor Side)

$55.99

$

In Stock, only 1 left!

0

883

Briggs & Stratton 691613

Gasket-Exhaust

$5.49

$

Usually ships in 2-12 days

0

884A

Briggs & Stratton 690898

Clamp-Muffler

$14.99

$

Usually ships in 2-12 days

0

994

Briggs & Stratton 392390

Arrestor-Spark
(Superseded to 794945)

$53.99

$

Usually ships in 2-12 days

0
