351 EPA - Husqvarna Chainsaw (1999-09) Clutch Assembly Parts Diagram

Chainsaw

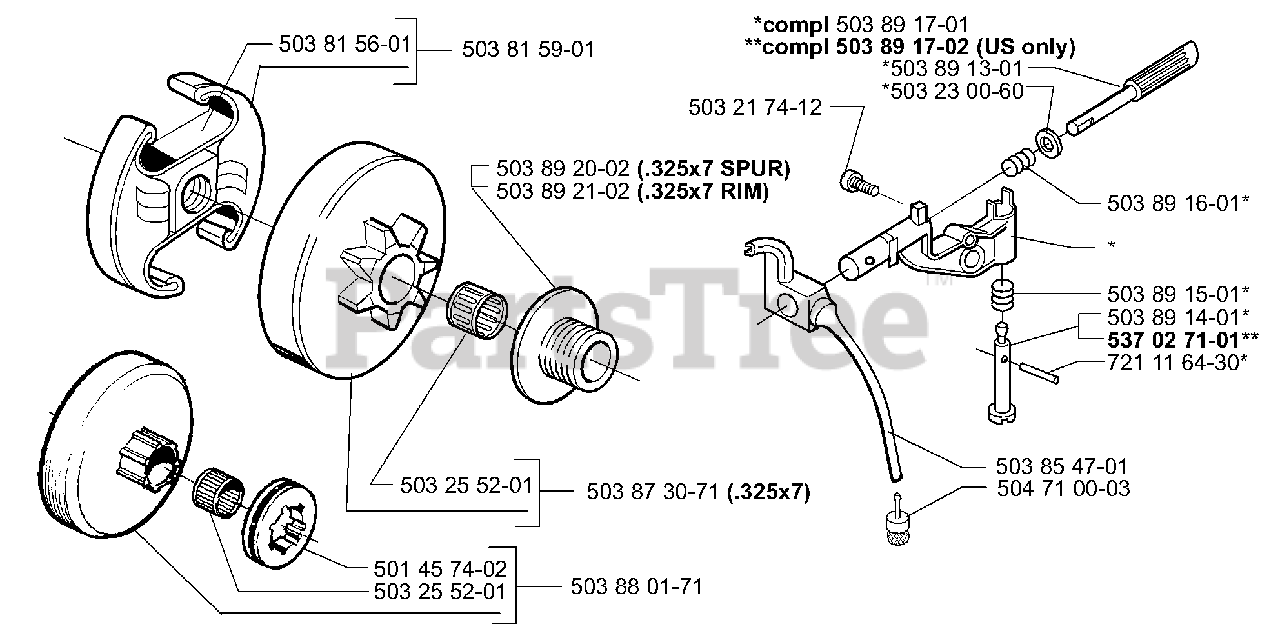

Clutch Assembly Parts Diagram

  • Title

503815601

Husqvarna 503815601

SPRING
(Superseded to 537359101)

$8.99

$

In Stock, Qty 9

0

503815901

Husqvarna 503815901

CLUTCH
(Superseded to 537110503)

$48.99

$

In Stock, only 4 left!

0

503892002

Husqvarna 503892002

PINION

$10.99

$

Usually ships in 3-10 days

0

503892102

Husqvarna 503892102

%PINION
(Superseded to 503892103)

$10.99

$

In Stock, only 2 left!

0

503217412

Husqvarna 503217412

SCREW

$3.49

$

In Stock, Qty 8

0

503891301

Husqvarna 503891301

PUMP PISTON
(Superseded to 537069302)

$24.99

$

Usually ships in 3-10 days

0

503230060

Husqvarna 503230060

WASHER

$5.99

$

In Stock, only 1 left!

0

503891701

Husqvarna 503891701

OIL PUMP
(Superseded to 544180103)

$74.99

$

In Stock, only 1 left!

0

503891702

Husqvarna 503891702

OILER COMP
(Superseded to 544180103)

Note: (New Part)

$74.99

$

In Stock, only 1 left!

0

503891601

Husqvarna 503891601

SPRING

$6.99

$

In Stock, only 3 left!

0

503891501

Husqvarna 503891501

SPRING

$6.49

$

In Stock, Qty 7

0

503891401

Husqvarna 503891401

SCREW

$

$

Not available

537027101

Husqvarna 537027101

ADJUSTER

Note: (New Part)

$9.99

$

In Stock, only 2 left!

0

721116430

Husqvarna 721116430

PIN

$4.99

$

In Stock, only 2 left!

0

503854701

Husqvarna 503854701

HOSE

$14.99

$

Usually ships in 3-10 days

0

504710003

Husqvarna 504710003

OIL PLUMMET

$11.99

$

In Stock, only 1 left!

0

503880171

Husqvarna 503880171

CLUTCH DRUM COMP
(Superseded to 503980071)

$66.99

$

In Stock, only 1 left!

0

501457402

Husqvarna 501457402

RIM SPROCKET 7T .325
(Superseded to 640200010)

$8.49

$

In Stock, Qty 8

0

503255201

Husqvarna 503255201

NEEDLE BEARING

$27.99

$

Usually ships in 3-10 days

0

503255201

Husqvarna 503255201

NEEDLE BEARING

$27.99

$

Usually ships in 3-10 days

0

503873071

Husqvarna 503873071

CLUTCH DRUM
(Superseded to 578097901)

$44.99

$

In Stock, Qty 20+

0
