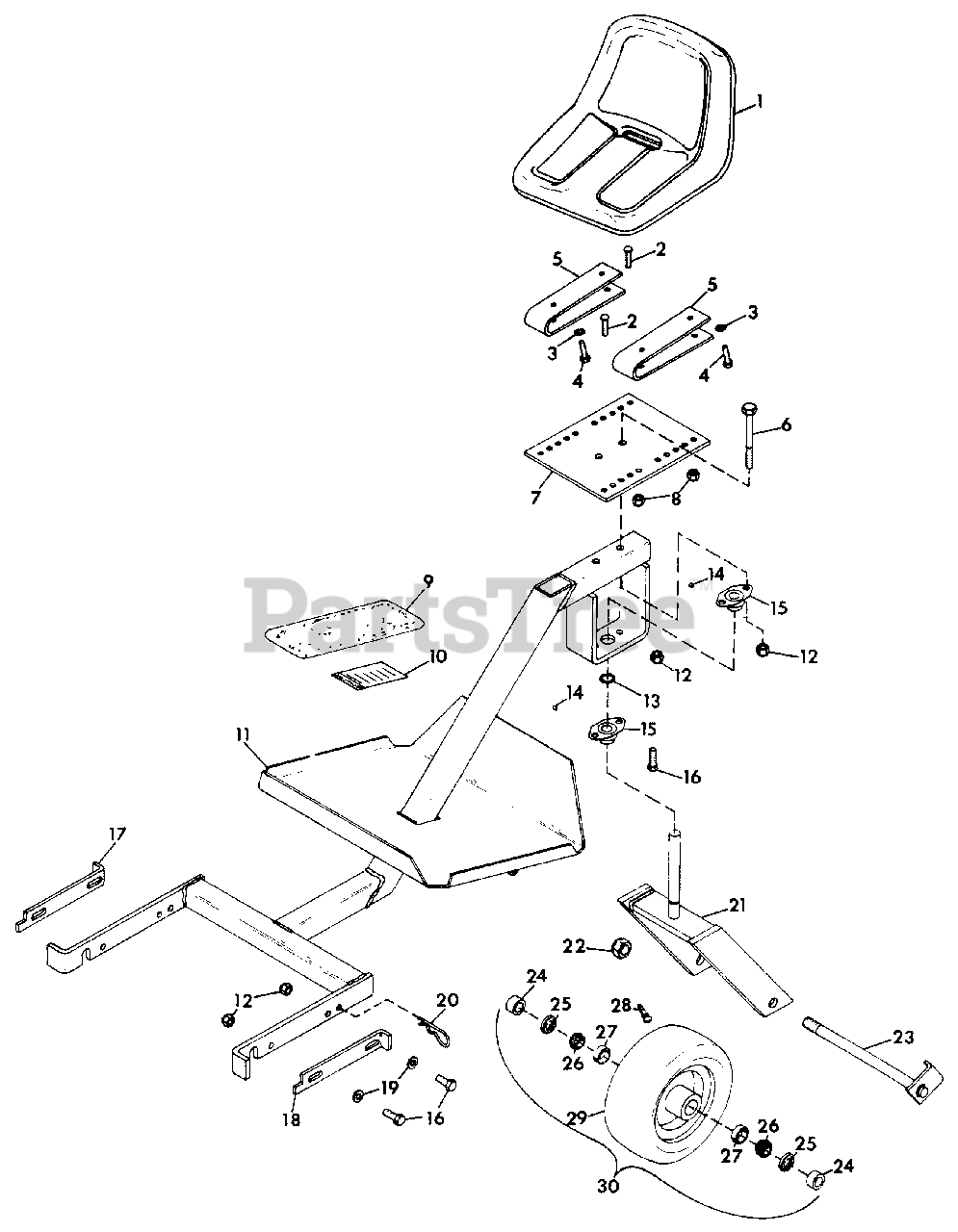

35097 - Gravely Pro Series Sulky Ride RIDING SULKY Parts Diagram

Pro Series Sulky Ride

RIDING SULKY Parts Diagram

  • Title
1

Gravely 021423

SEAT, HIGH BACK
(Superseded to 59100200)

$

$

Not available

2

Gravely 126353

BOLT, 5/16-18X.875 RD HD SQ NK
(Superseded to 06209200)

$

$

Not available

3

Gravely 120214

WASHER, LOCK 5/16 REG.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 024356

SPRING, SEAT
(Superseded to 21251600)

$

$

Not available

6

Gravely 180137

BOLT, HEX 3/8-16X2.75
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

7

Gravely 035111

PLATE, SEAT SUPPORT
(Superseded to 21237200)

$

$

Not available

8

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 011653

COVER, LARGE FOOTBOARD
(Superseded to 09023200)

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 035752

DECAL, SULKY PRO 40/PRO 50
(Superseded to 05209600)

$

$

Not available

11

Gravely 035098

WELDMENT, SULKY FRAME
(Superseded to 20656700)

$

$

Not available

12

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

13

Gravely 026300

RING, RETAINING
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

14

Gravely 139009

SCREW, SET 1/4-28X.25

$

$

Not available

15

Gravely 030986

BEARING, FAN
(Superseded to 05424100)

$

$

Not available

16

Gravely 180120

BOLT, HEX 3/8-16X.75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 035113

STRAP, SULKY LATCH R.H.
(Superseded to 21237400)

$

$

Not available

18

Gravely 035112

STRAP, SULKY LATCH L.H.
(Superseded to 21237300)

$

$

Not available

19

Gravely 446470

WASHER, FLAT .375X1.125X.065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

20

Gravely 010405

PIN, HAIR
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

21

Gravely 035108

WELDMENT, CASTER WHEEL FORK
(Superseded to 21245400)

$

$

Not available

22

Gravely 456007

NUT, LOCK 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

23

Gravely 035750

WELDMENT, AXLE
(Superseded to 20628200)

$

$

Not available

24

Gravely 035764

BUSHING, WHEEL
(Superseded to 20628500)

$

$

Not available

25

Gravely 035959

SEAL, WHEEL

$

$

Not available

26

Gravely 018446

BEARING, CONE
(Superseded to 05404500)

$23.99

$

In Stock, Qty 9

0

27

Gravely 018445

BEARING, CUP
(Superseded to 05404400)

$10.99

$

In Stock, Qty 20+

0

28

Gravely 011191

ASSEMBLY, VALVE STEM
(Superseded to 07520000)

$2.49

$

In Stock, Qty 5

0

29

Gravely 035765

TIRE, 13X5.00-6
(Superseded to 20628600)

$

$

Not available

30

Gravely 035116

ASM., WHEEL 13X5.00-6
(Superseded to 20618200)

$

$

Not available
