35096 - Gravely Grass Bagger for Pro Series Mower GRASS CATCHER Parts Diagram

Grass Bagger for Pro Series Mower

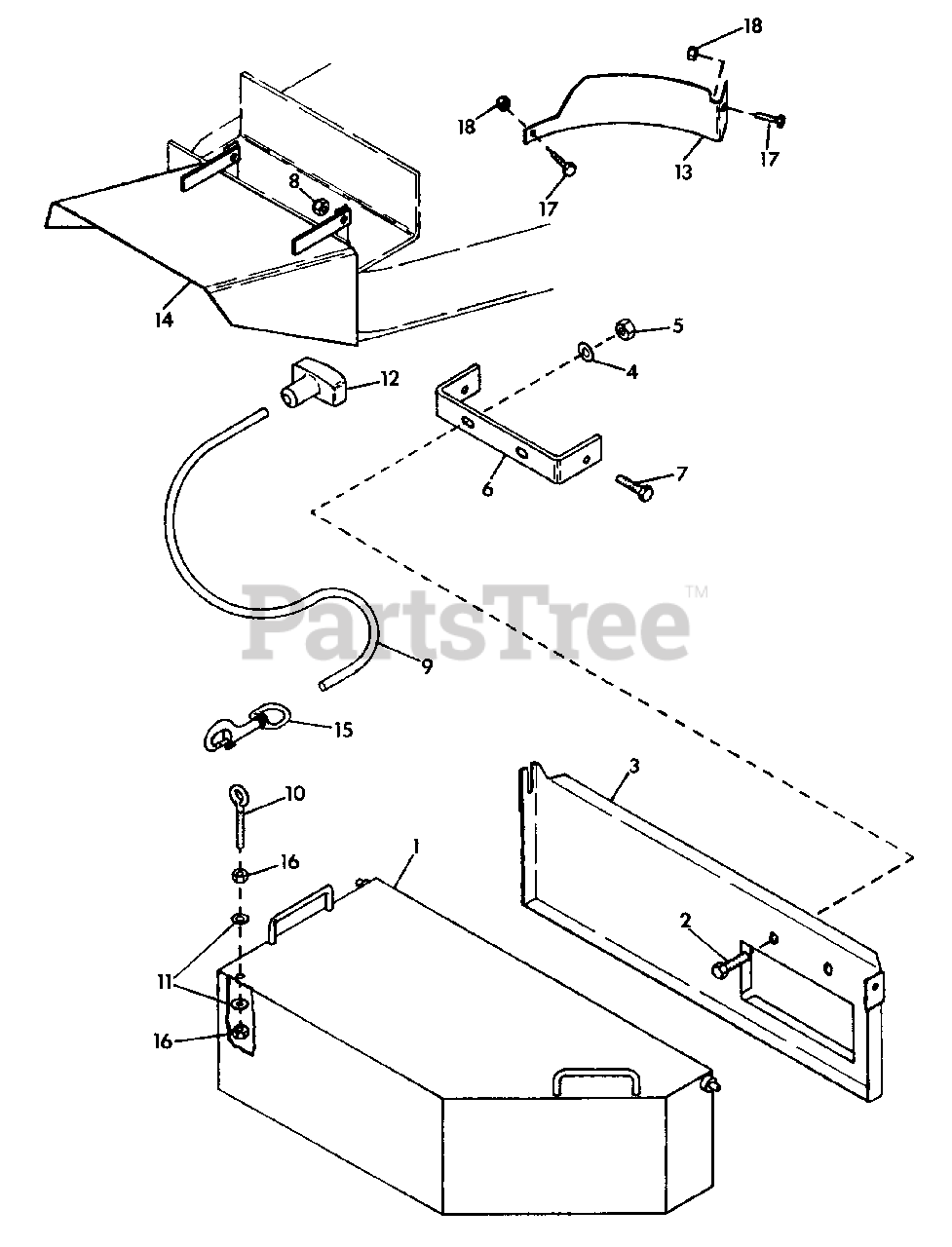

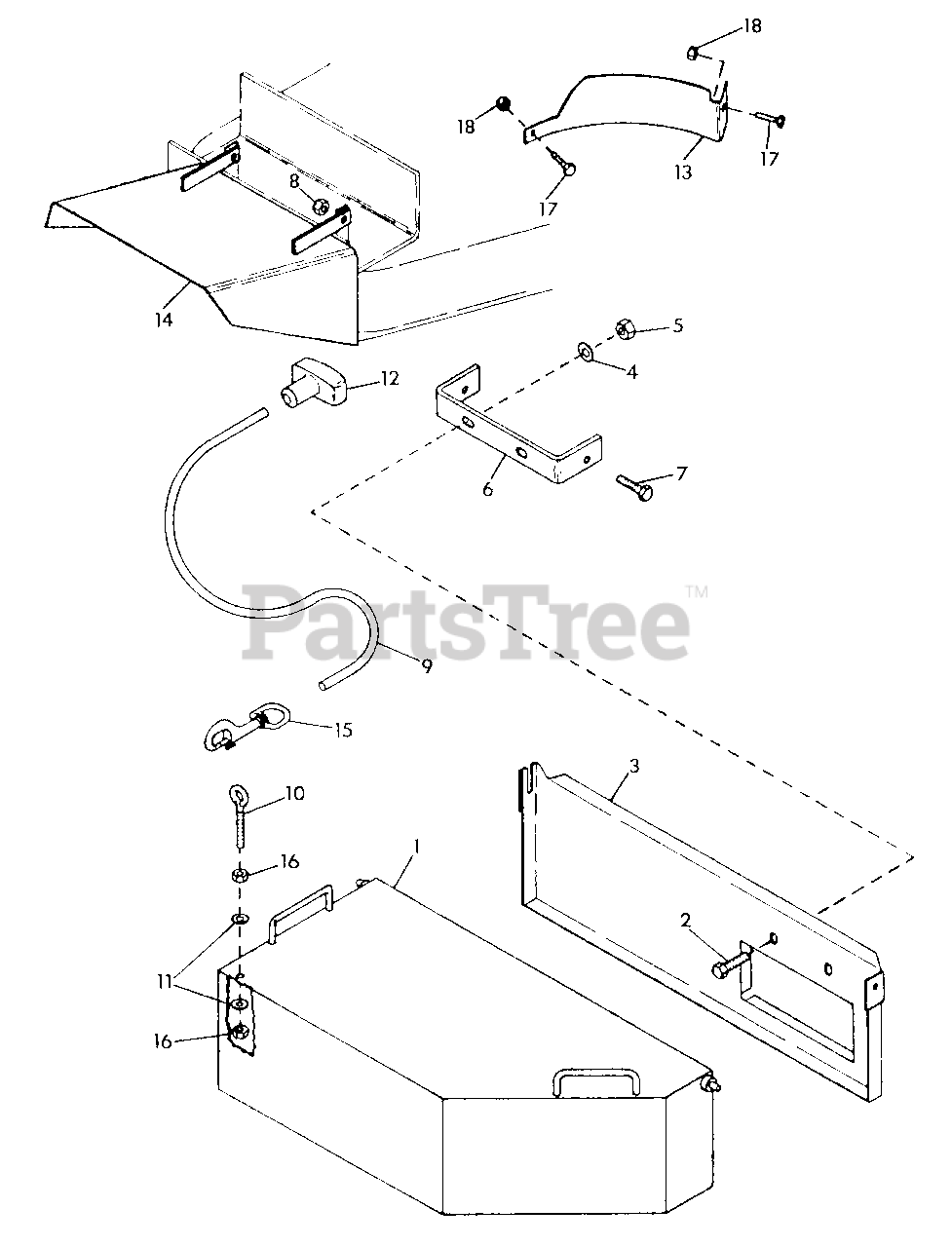

GRASS CATCHER Parts Diagram

  • Title
1

Gravely 034980

WELDMENT, GRASS CATCHER
(Superseded to 08804900)

$

$

Not available

2

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 034992

WELDMENT, FRAME SUPPORT
(Superseded to 08805500)

$

$

Not available

4

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 034968

BRACKET
(Superseded to 08804700)

$

$

Not available

7

Gravely 180081

BOLT, HEX 5/16-18X1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

8

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 019212

ROPE, #6 66"
(Superseded to 07520400)

$

$

Not available

10

Gravely 035094

BOLT, EYE
(Superseded to 07014800)

$

$

Not available

11

Gravely 120386

WASHER, FLAT .312X.734X.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 022276

HANDLE
(Superseded to 07521300)

$

$

Not available

13

Gravely 034970

BAFFLE
(Superseded to 08804800)

$

$

Not available

14

Gravely 034983

WELDMENT, DISCHARGE CHUTE
(Superseded to 08805200)

$

$

Not available

15

Gravely 035095

SNAP, SWIVEL EYE BOLT

$

$

Not available

16

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

17

Gravely 120518

BOLT, 1/4-20X.75 RD HD SQ NK
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

18

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0
